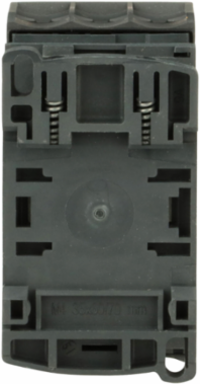

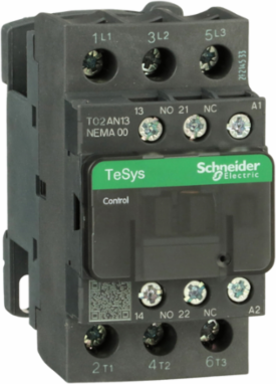

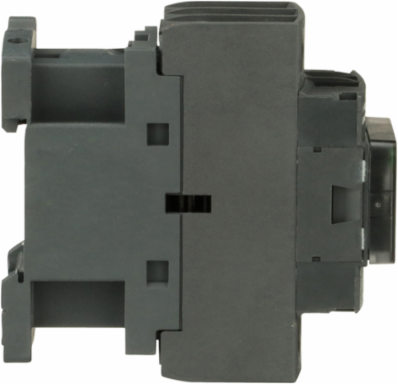

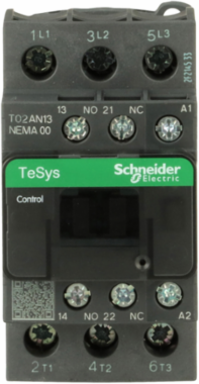

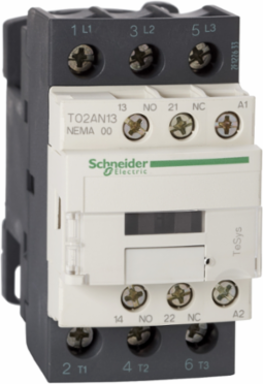

TeSys N Non-Reversing Contactor, 3P, NEMA Size 00, 9A, 2HP at 460VAC
TeSys N Non-Reversing Contactor, 3P, NEMA Size 00, 9A, 2HP at 460VAC
TeSys N Non-Reversing Contactor, 3P, NEMA Size 00, 9A, 2HP at 460VAC
TeSys N Non-Reversing Contactor, 3P, NEMA Size 00, 9A, 2HP at 460VAC
Schneider Electric

Schneider Electric T02AN13G7 TeSys N Non-Reversing Contactor, 3P, NEMA Size 00, 9A, 2HP at 460VAC

  • MPN: T02AN13G7
  • PPN: SCH-T02AN13G7
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $514.85

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    TeSys N contactors and starters conform to NEMA ICS2 standards. The NEMA size is printed directly on the face of the contactor. This 3 pole NEMA size 00 nonreversing contactor mounts on 35mm DIN rail and has a 9 amperage continuous current rating. This contactor has 0.33 HP at 115 VAC and 1 HP at 230 VAC single phase ratings. The contactor also has ratings of 1.5 HP at 200 to 230 VAC and 2 HP at 460 and 575 VAC poly phase. The nonreversing contactor is wired for common control with a 120 VAC 50/60 Hz replaceable coil. Contactor has 1 normally open and 1 normally closed auxiliary contact. This contactor is not in an enclosure. This contactor is 3.34 inches tall, 1.76 inches wide and 3.66 inches deep. It weighs 0.91 lbs. The screw clamp terminals will accept power wires from 18 AWG to 8 AWG and control wires from 18 AWG to 10 AWG. This TeSys N contactor is UL listed and CSA Certified.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    France
    Depth3.66 in

    Complementary Attributes

    Maximum Horse Power Rating
    1.5 hp 200 V AC, 1.5 hp 230 V AC2 hp 460 V AC, 2 hp 575 V AC
    Line Rated Current
    9 A
    Control Circuitcommon control circuit

    Important Information Attributes

    Persona Type Ids
    EU, LC, OM, OM8, PB
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Certificate Agency
    UL Listed, CSA
    Local Publishable Date
    2026-06-27
    Stocking Flag
    N
    Serviceability
    No
    Field Service Division
    PPIBS
    Weee Scope
    In
    Scope Perimeter
    Outside of Europe
    End Of Life Doc Ref
    ENVEOLI110229EN
    Reach Full Compliance Status Id
    NOT_CONTAINING_SVHC
    Rohs Eur In Scope
    Yes
    Rohs Eur Conformity Date
    1904
    China Rohs In Scope
    No
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    2
    Function Option
    Standard
    Contactor Application
    non-reversing
    Electrical Connection
    screw clamp terminals
    Number Of Poles
    3P
    Product Availability
    Stock - Normally stocked in distribution facility
    Range Of Product
    TeSys N
    Sustainable Packaging
    Yes
    Height Nominal
    3.34 in
    [Uc] Control Circuit Voltage
    120 V AC
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Customs Code
    8536490065
    Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    Market SegmentationCommercial, Industrial
    Local Data StatusPublishable
    Return IndicatorY
    Device TypeLV equipment - LV contactor
    TraceabilityNo
    Average Life Duration20 year(s)
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticYes
    Tier Id2
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Control Circuitcommon control circuit
    Energy Efficiency OptimizedFalse
    Phase3 phase
    Product Or Component Typecontactor
    ReturnabilityYes
    Pep CodeENVPEP110229EN
    Width Nominal1.76 in
    [Ue] Rated Operational Voltage600 V AC
    Package Weight(Lbs)412.769 g
    Warranty (In Months)18

    Environment Attributes Main

    China Rohs Regulation
    Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    Reach Free Shvc
    Yes
    Toxic Heavy Metal Free
    Yes
    Circularity Profile
    ENVEOLI110229EN
    Eu Rohs Directive
    Compliant
    Nema Size
    00
    Packaging Without Single Use Plastic
    Yes
    Reach Regulation
    Free of Substances of Very High Concern above the threshold
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Environmental DisclosureENVPEP110229EN
    Nema Degree Of Protectionnot rated (open device)
    Packaging Made With Recycled CardboardYes
    Reach Free Of SvhcYes
    Pep CodeENVPEP110229EN

    General Attributes

    Phase
    3 phase
    Range Of Product
    TeSys N
    Product Or Component Typecontactor

    ETIM

    ETIM 8
    EC000010
    ETIM 9EC000010
