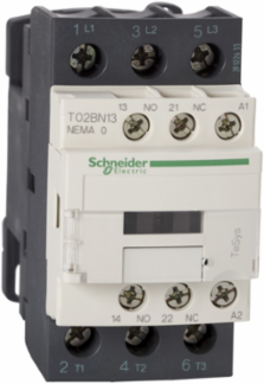

Schneider Electric T02BN13G7 TeSys N Non-Reversing Contactor, 3P, 18A, 5HP at 460VAC, NEMA Size 0
- MPN: T02BN13G7
- PPN: SCH-T02BN13G7
- UNSPSC: 39121529
CAD
$645.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
TeSys N contactors and starters conform to NEMA ICS2 standards. The NEMA size is printed directly on the face of the contactor. This 3 pole NEMA size 0 nonreversing contactor mounts on 35mm DIN rail and has a 18 amperage continuous current rating. This contactor has 1 HP at 115 VAC and 2 HP at 230 VAC single phase ratings. The contactor also has ratings of 3 HP at 200 to 230 VAC and 5 HP at 460 and 575 VAC poly phase. The nonreversing contactor is wired for common control with a 120 VAC 50/60 Hz replaceable coil. Contactor has 1 normally open and 1 normally closed auxiliary contact. This contactor is not in an enclosure. This contactor is 3.34 inches tall, 1.76 inches wide and 3.66 inches deep. It weighs 0.91 lbs. The screw clamp terminals will accept power wires from 18 AWG to 8 AWG and control wires from 18 AWG to 10 AWG. This TeSys N contactor is UL listed and CSA Certified.
Features
- High density, space saving design
- Sizes 00 -2 are DIN rail and panel mountable
- Replacing coils requires no tools
- Common accessories across range
- UL Listed, CSA certified, and CE marked
- Replaceable contacts on Size 3 and larger contactors reduce overall costs
- Snap-on front and side mount accessories for easy installation
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
| Depth | 3.66 in |
|---|
Complementary Attributes
| Maximum Horse Power Rating | 3 hp 200 V AC, 3 hp 230 V AC5 hp 460 V AC, 5 hp 575 V AC |
|---|---|
| Line Rated Current | 18 A |
| Ue Rated Operational Voltage | 600 V AC |
| Control Circuit | common control circuit |
|---|---|
| Uc Control Circuit Voltage | 120 V AC |
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Certificate Agency | UL Listed, CSA |
| Local Publishable Date | 2026-06-27 |
| Device Type | LV equipment - LV contactor |
| Traceability | No |
| Average Life Duration | 20 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Electrical Connection | screw clamp terminals |
| Number Of Poles | 3P |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | TeSys N |
| Sustainable Packaging | No |
| Height Nominal | 3.34 in |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI110229EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1904 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Contactor Application | non-reversing |
| Energy Efficiency Optimized | False |
| Phase | 3 phase |
| Product Or Component Type | contactor |
| Returnability | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Width Nominal | 1.76 in |
| Customs Code | 8536490065 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Circularity Profile | ENVEOLI110229EN |
| Eu Rohs Directive | Compliant |
| Nema Size | 0 |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110229EN |
| Nema Degree Of Protection | not rated (open device) |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP110229EN |
General Attributes
| Phase | 3 phase |
|---|---|
| Range Of Product | TeSys N |
| Product Or Component Type | contactor |
|---|
ETIM
| ETIM 8 | EC000010 |
|---|---|
| ETIM 10 | EC000010 |
| ETIM 9 | EC000010 |
|---|
