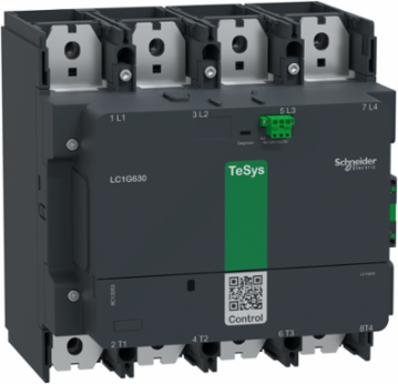

Schneider Electric LC1G6304KUEN Contactor, high power, TeSys Giga 630, standard version, 4 pole/NO, AC-1 <=440V 1050A, 100-250VAC/DC coil
Schneider Electric LC1G6304KUEN Contactor, high power, TeSys Giga 630, standard version, 4 pole/NO, AC-1 <=440V 1050A, 100-250VAC/DC coil
- MPN: LC1G6304KUEN
- PPN: SCH-LC1G6304KUEN
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Contactor, high power, TeSys Giga 630, standard version, 4 pole/NO, AC-1 <=440V 1050A, 100-250VAC/DC coil
Specifications
Physical Attributes
- Color
- dark grey
Complementary Attributes
- Control Circuit Voltage Limits
- operational: 0.8 Uc Min...1.1 Uc Max (at <60 °C), drop-out: 0.1 Uc Max...0.45 Uc Min (at <60 °C)
- Icw Rated Short Time Withstand Current
- 5.05 kA - 10 s, 4.4 kA - 30 s, 3.4 kA - 1 min, 2.2 kA - 3 min, 1.6 kA - 10 min
- Uc Control Circuit Voltage
- 100...250 V, 100...250 V AC 50/60 Hz, 100...250 V DC
- Irms Rated Making Capacity
- 7220 A at 440 V
- Rated Breaking Capacity
- 5550 A at 440 V
- Uimp Rated Impulse Withstand Voltage
- 8 kV
Maximum Operating Rate600 cyc/h AC-3, 600 cyc/h AC-3e, 300 cyc/h AC-1
Ie Rated Operational Current630 A (at <60 °C) at <= 440 V AC-3, 1050 A (at <40 °C) at <= 1000 V AC-1
Ue Rated Operational Voltage<= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC
Maximum Motor Phase Current630 A
Ui Rated Insulation Voltage1000 V
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Associated Fuse Rating
- 630 A aM at <= 440 V for motor, 500 A aM at <= 690 V for motor, 1250 A gG at <= 690 V, 1000 A UL Type L at <= 600 V
- Operating Time
- 40...70 ms closing, 15...50 ms opening
- Safety Reliability Level
- B10d = 100000 cycles contactor with nominal load EN/ISO 13849-1, B10d = 1800000 cycles contactor with mechanical load EN/ISO 13849-1
- Connections Terminals
- control circuit: push-in 0.75-2.5 mm² - cable stiffness: flexible with cable end, power circuit: bar 2 - busbar cross section: 52 x 20 mm, power circuit: lugs-ring terminals 1 185-185 mm², control circuit: push-in 1 0.2-2.5 mm² - cable stiffness: solid stranded without cable end, control circuit: push-in 1 0.25-2.5 mm² - cable stiffness: flexible with cable end, control circuit: push-in 2 0.5-1.0 mm² with cable end, control circuit: push-in 0.75-2.5 mm² - cable stiffness: solid stranded without cable end
- Ie Rated Operational Current
- 630 A (at <60 °C) at <= 440 V AC-3, 1050 A (at <40 °C) at <= 1000 V AC-1
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 26.42510597269747, 26 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 166 kg CO2 eq., 165.96767124836578
- Certificate Agency
- CB Scheme, CCC, cULus, EAC, CE, UKCA, EU-RO-MR by DNV-GL
- Local Publishable Date
- 2025-07-09
- Stocking Flag
- Y
- Device Type
- LV equipment - LV contactor
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Average Impedance
- 0.000065 Ohm
- Compatibility Code
- LC1G
- Contactor Application
- power switching
- Electrical Durability
- 300 cycles AC-1 400 V
- Hold In Power Consumption In Va
- 15.0-15.0 VA
- Inrush Power In Va
- 800-800 VA
- Mechanical Durability
- 5 Mcycles
- Overvoltage Category
- III
- Poles Description
- 4P
- Product Or Component Type
- contactor
- Range
- TeSys
- Returnability
- No
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 5 723 kg CO2 eq.
- Ith Conventional Free Air Thermal Current
- 1050 A (at 40 °C)
- Warranty In Months
- 18
- Rated Thermal Current Hv
- 1050 A
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
- Functional Unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 6657.6
- Energy Model Installation A5 2
- No energy used
- Energy Model End Of Life C1 C4 2
- Global, European and French datasets are used.
- Offer Owner Code
- 190788
- Height Nominal
- 284 mm
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Mechanical Robustnessvibrations 5-300 Hz 2 gn contactor open, vibrations 5-300 Hz 4 gn contactor closed, shocks 10 gn 11 ms contactor open, shocks 15 gn 11 ms contactor closed
Power Dissipation Per Pole70 W AC-1 - Ith 1050 A, 26 W AC-3 - Ith 630 A
Utilisation CategoryAC-3, AC-3e, AC-1, AC-5a, AC-5b, AC-6a, AC-6b, DC-1, DC-3, DC-5
Icw Rated Short Time Withstand Current5.05 kA - 10 s, 4.4 kA - 30 s, 3.4 kA - 1 min, 2.2 kA - 3 min, 1.6 kA - 10 min
Carbon Footprint Of The Distribution Phase A430.081098263082236, 30 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.2 kg CO2 eq., 0.24911790670239464
Carbon Footprint Of The Use Phase B2 B3 B4 B65 500 kg CO2 eq., 5500.038863575499
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2105013
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2121
China Rohs In ScopeNo
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Coil Technologybuilt-in bidirectional peak limiting
Connection Pitch70 mm
Device Short NameLC1G
Halogen Free StatusHalogen free plastic parts product
Hold In Power Consumption In W9.5-9.5 W
Inrush Power In W680 W
Mounting Supportplate
Pole Contact Composition4 NO
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protective TreatmentTH
Range Of ProductTeSys Giga
Software Versionv6.2.4
Tightening Torque58 N.m
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Rated Thermal Current Ith1050 A
Control Circuit Voltage100...250 V
Pep CodeENVPEP2105013EN
Pep Verification Date2026-03-19
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourceextrapolated product
Functional Unit Quantity1
Reference Lifetime In Y220
Energy Model Manufacturing A1 A3 2Electricity Mix; Low voltage; 2020; China, CN
Energy Model Use B6 2Electricity Mix; Low voltage; 2020; China, CN
Recyclability Potential In 255
Pn1
Width Nominal281 mm
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Permissible Ambient Air Temperature Around The Device
- -40-70 °C at Uc, -40-70 °C at Uc, -40-70 °C at Uc, -40-70 °C at Uc
- Halogene Performance
- Halogen free plastic parts product
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -25-60 °C
- Circularity Profile
- ENVEOLI2105013
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2026-03-19
- Psr Version
- PSR-0005-ed3-2023 06 06
Ip Degree Of ProtectionIP2X front face with shrouds IEC 60529, IP2X front face with shrouds VDE 0106
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint5722.761856966347
Ambient Air Temperature For Storage-60-80 °C
Environmental DisclosureENVPEP2105013EN
Halogen Content PerformanceHalogen free plastic parts product
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2105013EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- contactor
Range Of ProductTeSys Giga
ETIM
- ETIM 8
- EC000066
ETIM 9EC000066
Specifications
- Country of Origin
- China
Depth266 mm
