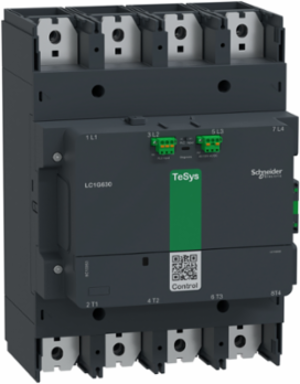

Schneider Electric LC1G6304LSEA Contactor, high power, TeSys Giga 630, 4 pole/NO, AC-1 <=440V 1050A, 200-500VAC/DC coil
Schneider Electric LC1G6304LSEA Contactor, high power, TeSys Giga 630, 4 pole/NO, AC-1 <=440V 1050A, 200-500VAC/DC coil
- MPN: LC1G6304LSEA
- PPN: SCH-LC1G6304LSEA
- UNSPSC: 39121529
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Contactor, high power, TeSys Giga 630, 4 pole/NO, AC-1 <=440V 1050A, 200-500VAC/DC coil
Features
- Designed to meet needs of demanding applications built-in with advanced features and functionalities
- Less number of references, simple to select, choose means less inventory
- Cable memory kit, saves downtime and improves productivity by performing quick maintenance
- Overload relay built in ground fault protection, phase imbalance/failure protection and protection of single phase loads
- Coil designed for less energy consumption and wider voltage band-width
- Auxiliary contacts is highly reliable and suitable for 17V 1mA to address more challenging specific control applications
- Advanced Local & Remote Contact Wear Diagnostic feature for predictive maintenance
- Modularity design and compact size for easy maintenance, short down times and less installation space consumption
- Robust control solutions for AC-3 applications up to 800 A (450kW) and AC-1 applications up to 1050 A
- Unique QR code, quick access to complete product data, technical video, anti-counterfeit checking
Specifications
Physical Attributes
- Color
- dark grey
Conformance Attributes
- Product Certifications
- CB Scheme, CCC, cULus, EAC, CE, UKCA, EU-RO-MR by DNV-GL
StandardsEN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, JIS C8201-5-1, UL 60335-1, UL 60335-2-40:Annex JJ
Complementary Attributes
- Control Circuit Voltage Limits
- operational: 0.8 Uc Min...1.1 Uc Max (at <60 °C), drop-out: 0.1 Uc Max...0.45 Uc Min (at <60 °C)
- IRMS Rated Making Capacity
- 7220 A at 440 V
- Rated Breaking Capacity
- 5550 A at 440 V
Maximum Operating Rate600 cyc/h AC-3, 600 cyc/h AC-3e, 300 cyc/h AC-1
Maximum Motor Phase Current630 A
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Associated Fuse Rating
- 630 A aM at <= 440 V for motor, 500 A aM at <= 690 V for motor, 1250 A gG at <= 690 V, 1000 A UL Type L at <= 600 V
- Operating Time
- 40...70 ms closing, 15...50 ms opening
- Safety Reliability Level
- B10d = 100000 cycles contactor with nominal load EN/ISO 13849-1, B10d = 1800000 cycles contactor with mechanical load EN/ISO 13849-1
- Icw Rated Short Time Withstand Current2
- 5.05 kA - 10 s, 4.4 kA - 30 s, 3.4 kA - 1 min, 2.2 kA - 3 min, 1.6 kA - 10 min
- Uc Control Circuit Voltage2
- 200...500 V, 200...500 V AC 50/60 Hz, 200...500 V DC
- Carbon Footprint Of The Distribution Phase A4
- 6.912786732646528, 7 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 132 kg CO2 eq., 132.26035809070734
- Connections Terminals
- power circuit: bar 2 - busbar cross section: 52 x 20 mm, power circuit: lugs-ring terminals 1 185-185 mm², power circuit: bolted connection, control circuit: push-in 1 0.2-2.5 mm² - cable stiffness: solid stranded without cable end, control circuit: push-in 1 0.25-2.5 mm² - cable stiffness: flexible with cable end, control circuit: push-in 2 0.5-1.0 mm² with cable end, control circuit: push-in 0.75-2.5 mm² - cable stiffness: solid stranded without cable end
- Icw Rated Short Time Withstand Current5
- 5.05 kA - 10 s, 4.4 kA - 30 s, 3.4 kA - 1 min, 2.2 kA - 3 min, 1.6 kA - 10 min
- Uc Control Circuit Voltage5
- 200...500 V AC 50/60 Hz, 200...500 V DC
- Local Data Status
- Publishable
- Device Type
- LV equipment - LV contactor
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Legacy WEEE Scope
- In
- EOLI Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- COMPLIANT_WITH_EXEMPTIONS
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- N
- Function Option
- Standard
- Coil Technology
- built-in bidirectional peak limiting
- Connection Pitch
- 70 mm
- Device Short Name
- LC1G
- Halogen Free Status
- Halogen free plastic parts product
- Hold In Power Consumption In W
- 11.0-11.0 W
- Inrush Power In W
- 390 W
- Mounting Support
- plate
- Package Weight Lbs
- 24.2 kg
- Poles Description
- 4P
- Product Or Component Type
- contactor
- Range
- TeSys
- Returnability
- No
- Tightening Torque
- 58 N.m
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Ui Rated Insulation Voltage2
- 1000 V
- Medium Desc
- Contactor, high power, TeSys Giga 630, 4 pole/NO, AC-1 <=440V 1050A, 200-500VAC/DC coil
- Product Kit Identifier
- N
- Rated Thermal Current Ith3
- 1050 A
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- Switch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control. The functional unit is characterized by a type 3P(NO), a control circuit voltage 100V-250V AC/DC, a power circuit voltage 1000V AC and a rated operational current 225A.
- Energy Model Manufacturing A1 A3 2
- Electricity Mix; Production mix; Low voltage; CN
- Energy Model Use B6 2
- Electricity Mix; Production mix; Low voltage; CN
- Global Commercial Status
- Commercialised
- Ui Rated Insulation Voltage5
- 1000 V
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Mechanical Robustnessvibrations 5-300 Hz 2 gn contactor open, vibrations 5-300 Hz 4 gn contactor closed, shocks 10 gn 11 ms contactor open, shocks 15 gn 11 ms contactor closed
Power Dissipation Per Pole70 W AC-1 - Ith 1050 A, 26 W AC-3 - Ith 630 A
Utilisation CategoryAC-3, AC-3e, AC-1, AC-5a, AC-5b, AC-6a, AC-6b, DC-1, DC-3, DC-5
Ie Rated Operational Current2630 A (at <60 °C) at <= 440 V AC-3, 1050 A (at <40 °C) at <= 1000 V AC-1
Ue Rated Operational Voltage2<= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC
Carbon Footprint Of The End Of Life Phase C1 To C450.62448946579996, 51 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B65 812 kg CO2 eq., 5811.719999999999
Connections Terminals3power circuit: bar 2 - busbar cross section: 52 x 20 mm, power circuit: lugs-ring terminals 1 185-185 mm², power circuit: bolted connection, control circuit: push-in 1 0.2-2.5 mm² - cable stiffness: solid stranded without cable end, control circuit: push-in 1 0.25-2.5 mm² - cable stiffness: flexible with cable end, control circuit: push-in 2 0.5-1.0 mm² with cable end, control circuit: push-in 0.75-2.5 mm² - cable stiffness: solid stranded without cable end, control circuit: push-in 0.75-2.5 mm² - cable stiffness: flexible with cable end
Ie Rated Operational Current5630 A (at <60 °C) at <= 440 V AC-3, 1050 A (at <40 °C) at <= 1000 V AC-1
Ue Rated Operational Voltage5<= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC
Local Publishable Date2025-12-27
ServiceabilityNo
Field Service DivisionPPIBS
WEEE ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2105013
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant with Exemptions
China ROHS In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Average Impedance0.000065 Ohm
Compatibility CodeLC1G
Contactor Applicationpower switching
Electrical Durability300 cycles AC-1 400 V
Hold In Power Consumption In VA17.0-17.0 VA
Inrush Power In VA670-670 VA
Mechanical Durability5 Mcycles
Overvoltage CategoryIII
Pole Contact Composition4 NO
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protective TreatmentTH
Range Of ProductTeSys Giga
Sustainable PackagingYes
Total Lifecycle Carbon Footprint6 002 kg CO2 eq.
Ith Conventional Free Air Thermal Current21050 A (at 40 °C)
Uimp Rated Impulse Withstand Voltage28 kV
Stocking FlagY
Rated Thermal Current Ith21050 A
Pep CodeENVPEP2105013EN
Pep Verification Date2025-06-17
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional Unit UnitUnit
Energy Model Installation A5 2Electricity Mix; Production mix; Low voltage; CN
Energy Model End Of Life C1 C4 2Electricity Mix; Production mix; Low voltage; CN
Ith Conventional Free Air Thermal Current51050 A (at 40 °C)
Uimp Rated Impulse Withstand Voltage58 kV
Environment Attributes Main
- Take Back
- Nej, No
- EU ROHS Directive
- Compliant By Exemption , Compliant with Exemptions
- Permissible Ambient Air Temperature Around The Device
- -40-70 °C at Uc, -40-70 °C at Uc, -40-70 °C at Uc, -40-70 °C at Uc
- Halogene Performance
- Halogen free plastic parts product
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -25-60 °C
- Circularity Profile
- ENVEOLI2105013
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2105013EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
China ROHS RegulationProduct out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
IP Degree Of ProtectionIP2X front face with shrouds IEC 60529, IP2X front face with shrouds VDE 0106
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Carbon Footprint6001.517634289154
Ambient Air Temperature For Storage-60-80 °C
Environmental DisclosureENVPEP2105013EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-06-17
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- contactor
Range Of ProductTeSys Giga
Specifications
- Depth
- 266 mm
