Balluff

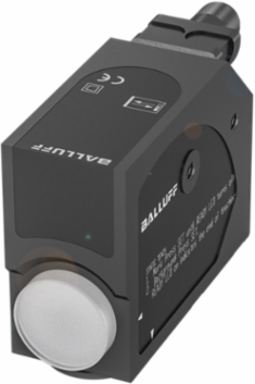

Balluff BKT 67M-003-U-S92 Contrast Sensor, 32 x 64 x 82 mm, 10-30 VDC, Focused Optical Operation

Contrast Sensor, 32 x 64 x 82 mm, 10-30 VDC, Focused Optical Operation
  • MPN: BKT 67M-003-U-S92
  • PPN: BAL-BKT0003

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$527.13/ EA

Description

Contrast Sensor, 32 x 64 x 82 mm, 10-30 VDC, Focused Optical Operation

Specifications

Specifications

Country of Origin
Hungary
Dimension
32 x 64 x 82 mm
Input function
Same function as SET button
Principle of optical operation
Diffuse sensor, Focused
Light type
Blue light/Green light/Red light
Range
6...12 mm
Housing material
Aluminum, Die casting, Painted
Operating voltage Ub
10...30 VDC
Series67M
InterfaceAnalog, voltage 1…5.5 V; PNP/NPN NO/NC
Principle of operationContrast sensor
Beam characteristicFocused
Light spot size1.5 x 5 mm at 9 mm
ConnectionConnector, M12x1-Male
Material sensing surfaceGlass
Approval/ConformityCE; cULus; WEEE
