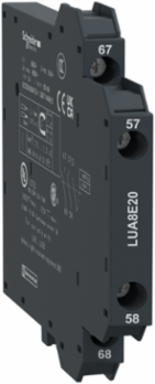

Schneider Electric LUA8E20 TeSys Ultra Auxiliary Contact 2NO, 690V AC/DC, 5A, Screw Clamp Terminals
- MPN: LUA8E20
- UPC: 785901291954
- PPN: SCH-LUA8E20
CAD
$130.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys U auxiliary signaling contact block for TeSys U starter controllers. It provides 2NO contacts for open/close status (OF contact), rated up to 5A 250V AC/DC. To be clipped on the left-hand side of the power base.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
Complementary Attributes
| Minimum Switching Current | 80 mA |
|---|
| Minimum Switching Voltage | 17 V |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| [Ue] Rated Operational Voltage | 690 V AC, 690 V DC |
| Local Publishable Date | 2026-06-27 |
| Stocking Flag | N |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2023 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Compatibility Code | LUA8 |
| Energy Efficiency Optimized | False |
| Product Or Component Type | auxiliary contact |
| Range Of Product | TeSys Ultra |
| Signalling Function | start-stop |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Connections - Terminals | screw clamp terminals |
| Package Weight(Lbs) | 60.0 g |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Traceability | No |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Short Name | LUA8 |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range | TeSys |
| Returnability | Yes |
| Sustainable Packaging | No |
| [Ith] Conventional Free Air Thermal Current | 5 A |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536509025 |
Environment Attributes Main
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Shvc | Yes |
|---|---|
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
General Attributes
| Product Or Component Type | auxiliary contact |
|---|
| Range Of Product | TeSys Ultra |
|---|
ETIM
| ETIM 8 | EC000041 |
|---|
| ETIM 9 | EC000041 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
