Schneider Electric LADN31 TeSys Deca Auxiliary Contact Block 3NO + 1NC, 10A, Front Mounting
Schneider Electric LADN31 TeSys Deca Auxiliary Contact Block 3NO + 1NC, 10A, Front Mounting
- MPN: LADN31
- PPN: SCH-LADN31
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$113.63/ EA
Description

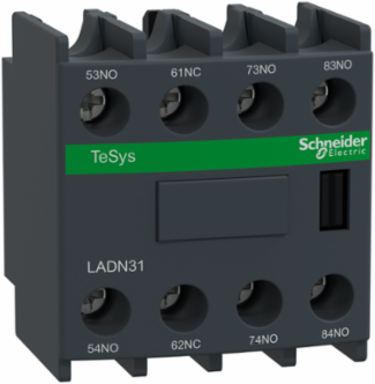

TeSys D instantaneous auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 3NO+1NC contacts (NC mirror certified) rated up to 10A/690V AC, connection by screw clamp terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Features
- The Schneider Electric TeSys LADN31 is a high-performance auxiliary contact block designed to snap directly onto the front of a TeSys D contactor or control relay. It provides an immediate expansion of your control circuit capacity, allowing you to trigger additional signaling, interlocking, or status-monitoring functions without the need for separate, bulky relays.
- his unit features a 3NO + 1NC (3 Normally Open / 1 Normally Closed) configuration. This specific arrangement is ideal for complex Canadian industrial control schemes where multiple "Open" signals are needed for PLC inputs or indicator lights, while the single "Closed" contact provides a dedicated safety interlock or "ready" status loop.
- Engineered for rapid deployment, the LADN31 utilizes a tool-free, snap-on mounting system. It mounts centrally on the front of LC1D contactors, maintaining a compact depth profile that is essential for high-density DIN-rail layouts in crowded automation cabinets and motor control centers (MCCs).
- Featuring high-integrity serrated sliding contacts, this block ensures a reliable electrical connection even in dusty industrial environments. It is rated for a minimum switching capacity of 5mA at 17V, making it a "PLC-ready" solution that prevents signal loss or "ghosting" when interfacing with sensitive electronic controllers.
- Built to the rigorous standards of the TeSys D range, this auxiliary block is designed for millions of mechanical operations. Its robust construction ensures that your control feedback remains accurate and responsive, even in high-speed Canadian manufacturing, packaging, or HVAC applications where equipment cycles frequently.
Specifications
- Rated Operational Current
- 6 A at 120 V AC-15; 1.04 A at 690 V AC-15; 0.55 A at 125 V DC-13; 0.1 A at 600 V DC-13
- Permissible Short-Time Rating
- 100 A 60 °C 1 s; 120 A 60 °C 500 ms; 140 A 60 °C 100 ms
- Minimum Switching Current
- 5 mA
- Non-Overlap Time
- 1.5 ms on energisation and de-energisation between NC and NO contacts
- Contact Operation
- Instantaneous

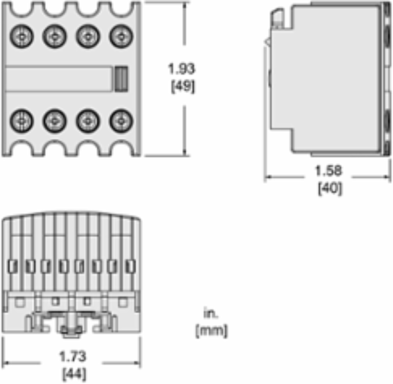

- Width
- 44 mm (1.73 in)
- Net Weight
- 0.05 kg (0.11 lb)
- Terminal Wire Size
- 1 to 4 mm² flexible and rigid
- Pole Contact Composition
- 3 NO + 1 NC
- Insulation Resistance
- > 10 MOhm
- Protection Type
- gG fuse 10 A
- IP Degree of Protection
- IP2X IEC 60529
- Ambient Air Temperature for Operation
- -5 to 60 °C (23 to 140 °F)
- Operating Altitude
- 3000 m (9842 ft)
- Sustainability
- Green Premium; RoHS Compliant; REACh Compliant; Toxic Heavy Metal Free; Mercury Free; China RoHS
- Environmental Characteristic
- Normal environment
Rated Operational Voltage690 V AC 25...400 Hz
Irms Rated Making Capacity140 A AC; 250 A DC
Minimum Switching Voltage17 V
Conventional Free Air Thermal Current10 A at 60 °C
Height48 mm (1.89 in)
Depth42 mm (1.65 in)
Terminal TypeScrew clamp
Tightening Torque1.7 N·m flat ⌀6 mm; 1.7 N·m Philips No 2; 1.7 N·m Pozidriv No 2 (15.05 lbf·in)
Mounting LocationFront
Rated Insulation Voltage690 V IEC 60947-5-1; 600 V UL; 600 V CSA
Mechanical Durability30 million cycles
Protective TreatmentTH IEC 60068
Ambient Air Temperature for Storage-60 to 80 °C (-76 to 176 °F)
ComplianceIEC 60947-5-1; UL 60947-5-1; CSA C22.2 No 60947-5-1; CB; UL; CSA; CCC; EAC; UKCA
ColorDark grey
