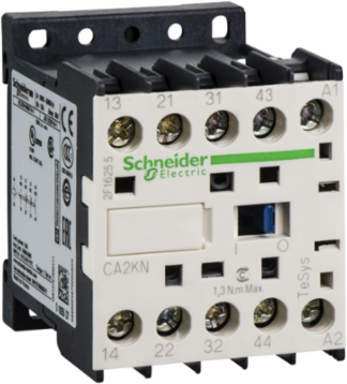

Schneider Electric CA2KN22E7 Control relay, TeSys K, 2 NO + 2 NC, lt or eq to 690V, 48VAC coil

Control relay, TeSys K, 2 NO + 2 NC, lt or eq to 690V, 48VAC coil - https://media.province-electric.com/228/schneider_synd_us_xlsx/medium/d07c7c5d87a0d6a3c3f081b91d0ceb075a76caa3-medium.png

Control relay, TeSys K, 2 NO + 2 NC, lt or eq to 690V, 48VAC coil - https://media.province-electric.com/228/schneider_synd_us_xlsx/medium/03c3ebe889070009dc5361d2ffc1f497a4c1150a-medium.png

Control relay, TeSys K, 2 NO + 2 NC, lt or eq to 690V, 48VAC coil

MPN: CA2KN22E7
PPN: SCH-CA2KN22E7

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$128.12/ EA

Qty:

Loading add to cart quantity...

Description

TeSys K control relay, 4 contacts (2NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 48V 50/60Hz AC control circuit, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -25/+50°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC).

Specifications

Complementary Attributes

Control Circuit Type: AC 50/60 Hz

Ue Rated Operational Voltage: <= 690 V <= 400 Hz, <= 690 V <= 400 Hz<= 690 V <= 400 Hz, <= 690 V <= 400 Hz

Irms Rated Making Capacity: 110 A IEC 60947

Minimum Switching Current: 5 mA

Uc Control Circuit Voltage: 48 V AC 50/60 Hz

Control Circuit Voltage Limitsdrop-out: 0.2...0.75 Uc (at <50 °C), operational: 0.8...1.15 Uc (at <50 °C)

Ui Rated Insulation Voltage690 V IEC 60947, 750 V VDE 0110 group C, 690 V BS 5424, 600 V CSA C22.2 No 14

Maximum Operating Rate10000 cyc/h

Minimum Switching Voltage17 V

Important Information Attributes

Persona Type Ids: EU, LC, OM, OM8, PB, SI

Market Segmentation Id: COMMERCIAL, INDUSTRIAL

Associated Fuse Rating: 10 A gG conforming to IEC 60947, 10 A gG conforming to VDE 0660

Mechanical Robustness: vibrations contactor open2 Gn, 5...300 Hz IEC 60068-2-6, vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6, shocks contactor open10 Gn for 11 ms IEC 60068-2-27, shocks contactor closed15 Gn for 11 ms IEC 60068-2-27

Operating Time: 10...20 ms coil de-energisation and NO opening, 10...20 ms coil energisation and NO closing, 15...25 ms coil de-energisation and NC closing, 5...15 ms coil energisation and NC opening

Protective Treatment: TC IEC 60068

Tightening Torque: 1.3 N.m screw clamp terminals flat Ø 6 mm, 1.3 N.m screw clamp terminals Philips No 2 6 mm, 1.3 N.m screw clamp terminals pozidriv No 2

Connections Terminals: screw clamp terminals 2 0.34-1.5 mm²flexible without cable endscrew clamp terminals 1 1.5-4 mm²solid, screw clamp terminals 2 1.5-4 mm²solid, screw clamp terminals 1 0.75-4 mm²flexible with cable end, screw clamp terminals 2 0.75-4 mm²flexible without cable end, screw clamp terminals 1 0.34-1.5 mm²flexible with cable end

Carbon Footprint Of The End Of Life Phase C1 To C4: 0.3 kg CO2 eq., 0.25617272259369844

Carbon Footprint Of The Manufacturing Phase A1 To A3: 0.9 kg CO2 eq., 0.91401512148607

Certificate Agency: CB Scheme, CCC, UL, CSA, EAC, CE, UKCA

Local Publishable Date: 2025-02-26

Stocking Flag: Y

Device Type: LV equipment - LV contactor

Traceability: No

Weee Product Category: 5

Eoli Availability Display: Yes

Reach Full Compliance Status: Free of Substances of Very High Concern above the threshold

Reach Compliance Directive: Free of Substances of Very High Concern above the threshold

Rohs Eur Status: Compliant

Rohs Eur Full Compliance Status: Compliant

With Recycled Cardboard: Yes

Product Contributes To Saved And Avoided Emissions: No

Tier: 1

Function Option: Standard

Compatibility Code: CA2K

Device Short Name: CA2K

Hold In Power Consumption In Va: 4.5-4.5 VA (at 20 °C)

Inrush Power In Va: 30-30 VA (at 20 °C)

Mechanical Durability: 10 Mcycles

Pole Contact Composition: 2 NO + 2 NC

Product Name: TeSys CAK

Returnability: No

Sustainable Packaging: Yes

Weee Label: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Warranty In Months: 18

Control Circuit Voltage 21: 48 V

Connections Terminals 55 Connections Terminals: screw clamp terminals

Database Version: 2024-01

Pcr Version: PEP-PCR-ed4-2021 09 06

Type Of Verification For The Pep: Independent internal review

Functional-unit Description: Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years

Functional-unit Unit: unit

Energy Consumption On Product Lifetime, In Kwh: 140.16

Energy Model - Installation [A5]: No energy used

Energy Model - End Of Life [C1-c4]: Global, European and French datasets are used.

Offer Owner Code: 190788

Height Nominal: 58 mm

Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator

Market SegmentationCommercial, Industrial

Flame RetardanceV1 conforming to UL 94, requirement 2 conforming to NF F 16-101, requirement 2 conforming to NF F 16-102

Mounting Supportrail, plate

Product Or Component Typecontrol relay

RangeTeSys

Utilisation CategoryAC-15, DC-13

Carbon Footprint Of The Distribution Phase A40.35276280880753375, 0.4 kg CO2 eq.

Carbon Footprint Of The Installation Phase A50.024250978113109528, 0 kg CO2 eq.

Carbon Footprint Of The Use Phase B2 B3 B4 B657 kg CO2 eq., 56.65241524409139

Local Data StatusPublishable

Return IndicatorN

Stock Policy2

ServiceabilityNo

Weee ScopeIn

Scope PerimeterAt least in Europe

End Of Life Doc RefENVEOLI1503003

Reach Full Compliance Status IdNOT_CONTAINING_SVHC

Rohs Eur In ScopeYes

Rohs Eur Conformity Date2448

China Rohs Label1

Without Single Use PlasticYes

Tier Id1

Function Option IdSTANDARD

Product Kit IdentifierN

Contactor Applicationcontrol circuit

Heat Dissipation1.3-1.3 W

Immunity To Microbreaks2 ms

Insulation Resistance> 10 MOhm> 10 MOhm

Non Overlap Distance0.5 mm

Product AvailabilityNon-Stock - Not normally stocked in distribution facility

Range Of ProductTeSys K control relay

Software Versionv6.2.4

Total Lifecycle Carbon Footprint58 kg CO2 eq.

Ith Conventional Free Air Thermal Current10 A (at 50 °C)

Pole Contact Comp2 NO + 2 NC

Control Circuit Voltage 21 Control Circuit Voltage48 V

Pep CodeENVPEP1503003EN

Pep Verification Date2026-03-23

Psr VersionPSR-0005-ed3-2023 06 06

Data Sourceextrapolated product

Functional-unit Quantity1

Reference Lifetime, In Y20

Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; France, FR

Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Europe, EU-27

Recyclability Potential, In %63

Pn1

Width Nominal45 mm

Environment Attributes Main

Ambient Air Temperature For Operation: -25-50 °C, -25-50 °C

Take Back: No

Recycled Metal Content At Cr Level: 0 %

Toxic Heavy Metal Free: Yes

Carbon Footprint: 58.1996168750918

Environmental Disclosure: ENVPEP1503003EN

Ip Degree Of Protection: IP2X

Packaging Made With Recycled Cardboard: Yes

Reach Free Of Svhc: Yes

Pep Code: ENVPEP1503003EN

Pcr Version: PEP-PCR-ed4-2021 09 06

Type Of Verification For The Pep: Independent internal review

Ambient Air Temperature For Storage-50-80 °C, -50-80 °C

Reach Free ShvcYes

China Rohs RegulationX

Mercury FreeYes

Circularity ProfileENVEOLI1503003

Eu Rohs DirectiveCompliant

Operating Altitude6561.68 ft (2000 m) without derating

Packaging Without Single Use PlasticYes

Reach RegulationFree of Substances of Very High Concern above the threshold

Pep Verification Date2026-03-23

Psr VersionPSR-0005-ed3-2023 06 06

General Attributes

Product Or Component Type: control relay

Range Of ProductTeSys K control relay

ETIM

ETIM 8: EC000196

ETIM 9EC000196

Contractual Warranty Attributes

Warranty Period: 18 months

Warranty18 months

Specifications

Country of Origin: Brazil, France, Indonesia

Depth57 mm
