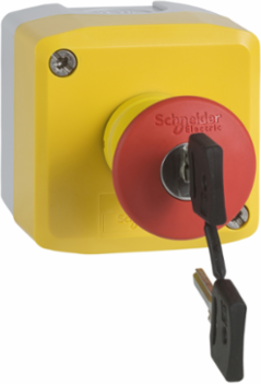

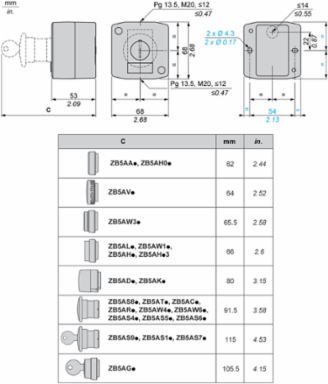

Schneider Electric XALK188EH7 Harmony XALK Control Station, 40mm Push Button, Polycarbonate, NEMA 4X

  • MPN: XALK188EH7
  • PPN: SCH-XALK188EH7
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $211.17

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This control station from Schneider Electric represents a reliable solution for automation and control environments, featuring a robust design with a 40mm push button. Made from durable polycarbonate, it is engineered to meet NEMA 4X standards, ensuring resilience against dust and water exposure. Ideal for demanding applications, the Harmony XALK control station provides both functionality and longevity, making it a key component in various industrial settings. Its thoughtful construction enhances user experience while maintaining operational efficiency.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginCzechia, United States

    Physical Attributes

    Color Of Base Of Enclosurelight grey RAL 7035)
    Housing Coloryellow
    Color Of Coveryellowyellow RAL 1021)

    Important Information Attributes

    Persona Type IdsBM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation IdCOMMERCIAL, INDUSTRIAL
    Cable Entry1 knock-out for cable entry 0-14 mm, 2 knock-outs for Pg 13 cable gland and ISO M20 0-12 mm
    Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    Shape Of Screw Headcross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
    [Ie] Rated Operational Current3 A 240 V, AC-15, A600 IEC 60947-5-16 A 120 V, AC-15, A600 IEC 60947-5-10.1 A 600 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.0375766803, 0 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]1 kg CO2 eq., 1.2952227676
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label7
    Without Single Use PlasticNo
    Tier Id2
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Contact Operationslow-break
    Control Station Composition1 mushroom head Ø 40 mm push-button, red 1 NO + 1 NC unmarked
    Device Short NameXALK
    Key Number455
    Mechanical Durability300000 cycles
    Operating Travel1.5 mm NC changing electrical state)2.6 mm NO changing electrical state)4.3 mm total travel)
    Operators Descriptionred unmarked 1 NO + 1 NC
    Positive Openingwith IEC 60947-5-1 appendix K
    Product Destinationfor XB5 Ø 22 mm control and signalling units
    Protective TreatmentTH
    Resetkey release
    ReturnabilityYes
    Software VersionEIME v5.8.1
    Tightening Torque0.8-1.2 N.m IEC 60947-1
    Vibration Resistance5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6
    Ac Control Voltage 50 Hz120-600 V
    Number Of Command Positions1
    Number Of Contacts As Normally Open Contact1
    Color Of Coveryellowyellow RAL 1021)
    Pep CodeENVPEP2506022EN
    Pep Verification Date2018-09-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y20
    Energy Model - Installation [A5]Electricity mix; AC; < 1kV; EU-27
    Energy Model - End Of Life [C1-c4]Electricity mix; AC; < 1kV; EU-27
    [Ui] Rated Insulation Voltage600 V 3)IEC 60947-1
    Connections - Terminalsscrew clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1
    Emergency Power Off (Epo)no
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8536509031
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Control Station Applicationemergency stop function, emergency switching off function
    Electrical Reliabilityλ < 10exp(-6) 5 V, 1 mA IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA IEC 60947-5-4
    Certificate AgencyUL Listed, CSA
    Carbon Footprint Of The Distribution Phase [A4]0.0256760191, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0012004027
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]0.1 kg CO2 eq., 0.1218928
    Local Publishable Date2026-01-12
    Stocking FlagY
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2506022EN
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardNo
    Product Contributes To Saved And Avoided EmissionsNo
    Tier2
    Function OptionStandard
    Compatibility CodeXALK
    Contacts Materialsilver alloy (Ag/Ni)
    Dc Control Voltage125-600 V
    Housing Materialplastic
    Materialpolycarbonate
    Operating Force44 N NC + NO changing electrical state
    Operator Profile1 mushroom head push-button
    Overvoltage Categoryclass II conforming to IEC 60536
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Product Or Component Typecomplete control station
    Range Of ProductHarmony XALK
    Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
    Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    Sustainable PackagingNo
    Total Lifecycle Carbon Footprint1 kg CO2 eq.
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Ac Control Voltage 60 Hz120-600 V
    Number Of Contacts As Normally Closed Contact1
    Color Of Base Of Enclosurelight grey RAL 7035)
    Housing Coloryellow
    Database Version2016-11
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionTo provide Stop, Start or Combined functions on 10A electrical load for 20 years at 30% use rate with 0.5W power use.
    Functional-unit Unitunité (unit)
    Energy Model - Manufacturing [A1-a3]Energy model used: France
    Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27
    [Ith] Conventional Free Air Thermal Current10 A IEC 60947-5-1
    [Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
    Short-circuit Protection10 A cartridge fuse gG IEC 60947-5-1
    Number Of Mushroom-shaped Push-buttons1
    Package Weight(Lbs)199.000 g
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Operation-40-70 °C, -40-70 °C
    Ip Degree Of ProtectionIP66 IEC 60529, IP67, IP69, IP69K, IP66/IP67/IP69/IP69K
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Circularity ProfileENVEOLI2506022EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Without Single Use PlasticNo
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep Verification Date2018-09-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Nema Degree Of ProtectionNEMA 13, NEMA 4X, NEMA 4X/13
    Reach Free ShvcYes
    China Rohs RegulationX
    Carbon Footprint1.4815686697
    Environmental DisclosureENVPEP2506022EN
    Packaging Made With Recycled CardboardNo
    Reach Free Of SvhcYes
    Pep CodeENVPEP2506022EN
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Typecomplete control station
    Range Of ProductHarmony XALK

    ETIM

    ETIM 8EC000225
    ETIM 9EC000225

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months
    Harmony XALK Control Station, 40mm Push Button, Polycarbonate, NEMA 4X
