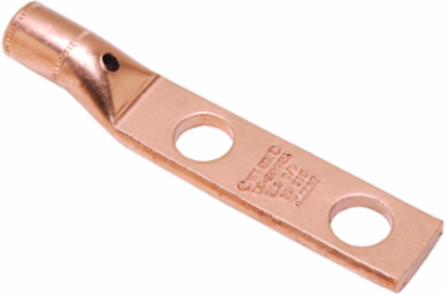

Burndy YGHA262N Copper Compression Lug Terminal 2/0 AWG 1/2 Inch Stud 1-3/4 Inch Hole Spacing
- MPN: YGHA262N
- UPC: 781810220368
- PPN: BUR-279039
CAD
$131.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper Compression Lug, Heavy Duty, 2 Hole w/ Inspection Probe, 2/0 AWG, 1/2" Stud, 1-3/4" Stud Hole Spacing, Short Barrel.
Documentation & Downloads
Specifications
Additional
| Connector Type | Terminal |
|---|---|
| Application | Direct Burial In Earth Or Concrete, Grounding |
| Number of Crimps Required | 1 |
| Dimension - B Length | 0.83 in |
| Dimension - Hole Size | 0.56 in / 14 mm |
| Dimension - Outside Diameter | 0.71 in |
| Dimension - Z | 0.62 in |
| Stud Hole Spacing | 1-3/4 in |
| Number of Holes | 2 |
| Plating Type | Unplated |
| Certification - UL Listed Direct Burial | Yes |
| UL Listed | Yes |
| Brand | HYLUG |
| Conductor Size | 2/0 AWG |
|---|---|
| Die Index | 15 |
| Dimension - Length Overall | 4.38 in / 111 mm |
| Dimension - D | 3.00 in |
| Dimension - N | 0.63 in |
| Dimension - Pad Width | 0.97 in |
| Dimension - Stud Size | 1/2 in |
| Physical Attribute - Tongue Angle | Straight |
| Material | Copper |
| Conductor Type | CU C Str-Size, CU C Solid-Size |
| Certification - CSA Approved | Yes |
| RoHS Compliance Status | CM |
