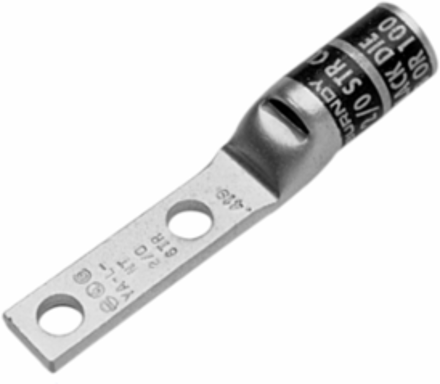

Burndy YA32L2NT38FX HYLUGTM Copper Terminal Connector, 3/8 Inch Stud, 600V-35kV, 313.1 kcmil, Straight
- MPN: YA32L2NT38FX
- UPC: 781810174371
- PPN: BUR-25015029
CAD
$77.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu compression narrow toungue std barrel-Flex conductor, 2 holes/W/ insp window, 313.1 kcmil.775/24 300 flex,600V-35Kv, 3/8" stud, Red, 18 index
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 1-3/16 in
- Dimension - Bolt Hole Size inch
- 0.39 in
- Dimension - D inch
- 1.84 in
- Dimension - Length Overall inch
- 3.69 in
- Dimension - Outside Diameter inch
- 0.95 in
- Dimension - Strip Length inch
- 1-1/4
- Dimension - Z inch
- 0.43 in
Dimension - B Length inch1.19 in
Dimension - Bolt Size fraction3/8
Dimension - L Length Overall mm94 mm
Dimension - N inch0.41 in
Dimension - Pad Width inch0.96 in
Dimension - Stud Size inch3/8
Physical Attribute - Tongue AngleStraight
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size
- 313.1 (775/#24)
- Conductor - Copper Flex G Size
- 313
- Conductor - Copper Flex H Size
- 313
- Conductor - Copper Flex I Size
- 313
- Conductor - Copper Flex K Size
- 313
- Conductor - Copper Flex M Size
- 313
Conductor - Copper DLO Size Range313.1 (775/#24)
Conductor - Copper Flex G Size Range313
Conductor - Copper Flex H Size Range313
Conductor - Copper Flex I Size Range313
Conductor - Copper Flex K Size Range313
General
- Color Code
- Red
- Die Index
- 18
- Feature - Barrel Type
- Standard
- Physical Attribute - Number of Holes
- 2
- Plating Type
- Tin - Electro Plated
- UPC
- 781810174371
Connector TypeTerminal
Feature - Barrel StyleChamfered
MaterialCopper
PlatedY
Trade NameHYLUG™
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 50
