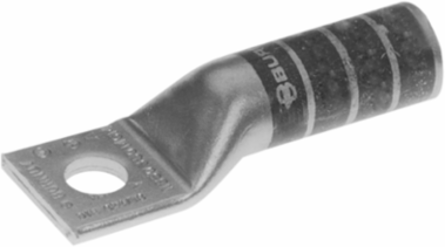

Burndy YA8CLNT8 Copper Terminal Connector, 8 AWG, 1.18 Inch Length, Tin Plated, Standard Barrel
- MPN: YA8CLNT8
- UPC: 781810229002
- PPN: BUR-25019273
CAD
$11.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Flex Conductor Standard Barrel Narrow, #8 AWG, 8, 1.18 in L.
Documentation & Downloads
Specifications

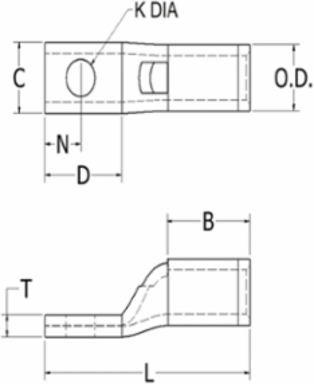

Dimensions
- Dimension - B Length fraction
- 7/16 in
- Dimension - D inch
- 0.47 in
- Dimension - L Length Overall mm
- 30 mm
- Dimension - N inch
- 0.22 in
- Dimension - Pad Width inch
- 0.33 in
- Dimension - Stud Size inch
- #8
- Physical Attribute - Tongue Angle
- Straight
Dimension - B Length inch0.44 in
Dimension - Inside Diameter inch0.18 in
Dimension - Length Overall inch1.18 in
Dimension - Outside Diameter inch0.27 in
Dimension - Strip Length inch1/2
Dimension - Z inch0.25 in
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size Range
- N/A
- Conductor - Copper Str Size Range
- 8 AWG
Conductor - Copper Str Size8 AWG
General
- Application
- For Code Conductor
- Connector Type
- Terminal
- Feature - Barrel Style
- Chamfered
- Material
- Copper
- Plated
- Y
- Sub Brand
- TERMINALS, HYLUG
- Type
- YA-L-NT
Color CodeRed
Die Index49
Feature - Barrel TypeStandard
Physical Attribute - Number of Holes1
Plating TypeTin - Electro Plated
Trade NameHYLUG™
UPC781810229002
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
