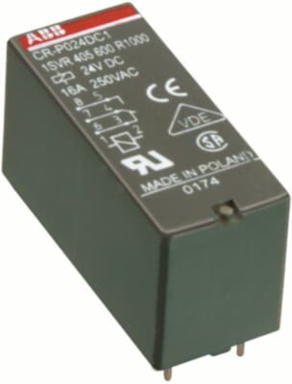

ABB 1SVR405600R5000 Pluggable Interface Relay 1 c/o, 48V AC, 250V/16A, IP67
- MPN: 1SVR405600R5000
- UPC: 662019362502
- PPN: ABB-1SVR405600R5000
- UNSPSC: 39122331
CAD
$13.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The CR-P048AC1 pluggable interface relay is suitable for direct mounting on a printed circuit board or use in conjunction with ABB's sockets. This relay operates with a 48 V AC rated control supply voltage and has a 1 c/o (SPDT) output with contacts rated at 250 V / 16 A, enabling the possibility of switching multiple circuits with a single input signal. Coupled with a socket, the compact size of this relay offers possibilities to save space within a control panel. Furthermore, with an IP degree of 67, this relay offers complete protection against ingress of dust and airborne particles & protection against water and liquids, up to and including immersion in up to one meter of water. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories.
Specifications
Dimensions
- Product Net Width
- 12.7 mm
- Product Net Depth / Length
- 29 mm
Product Net Height15.7 mm
Product Net Weight0.014 kg
Technical
- Function
- Pluggable pcb interface relay CR-P
- Rated Control Supply Voltage (Us)
- 48 V AC
- Rated Frequency (f)
- 50 / 60 Hz
- Output Signal
- 250 V / 16 A
- Rated Operational Current AC-12 (Ie)
- (230 V) 16 A
- Rated Operational Current DC-12 (Ie)
- (24 V) 16 A
- Rated Insulation Voltage (Ui)
- 400 V
- Mounting Position
- 1
Sub-FunctionRelay w/o built in LED
Rated Operational Voltage400 V AC
Output1 c/o (SPDT) contact
Terminal TypeSoldering Pins
Rated Operational Current AC-15 (Ie)(120 V) 3 A(230 V) 1.5 A
Rated Operational Current DC-13 (Ie)(24 V) 2.5 A(250 V) 0.1 A
Degree of ProtectionIP67
StandardsIEC/EN 61810-1
Classifications
- Object Classification Code
- K
- eClass
- V11.0 : 27371601
ETIM 9EC001437 - Switching relay
E-Number (Finland)2712742
Environmental
- Ambient Air Temperature
- Operation -40 ... +70 °CStorage -40 ... +85 °C
- RoHS Status
- Following EU Directive 2011/65/EU
Maximum Operating Altitude PermissibleWithout Derating 2000 m
Technical UL/CSA
- Maximum Operating Voltage UL/CSA
- 300 V AC
- Pilot Duty UL/CSA
- B300
Contact Rating UL/CSAB300
Flammability According to UL94V-0
Ordering
- Minimum Order Quantity
- 10 piece
Customs Tariff Number85364900
