ABB

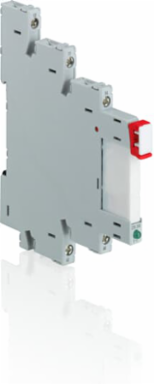

ABB 1SVR405541R6120 CR-S Interface Relay 1 c/o, 110V AC/DC, Output 6A, Gold-Plated Contacts

CR-S Interface Relay 1 c/o, 110V AC/DC, Output 6A, Gold-Plated Contacts
  • MPN: 1SVR405541R6120
  • UPC: 888614262980
  • PPN: ABB-1SVR405541R6120
  • UNSPSC: 39122331

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$38.72/ EA

Description

CR-S110VADC1CRGS Interface relay cpl. 1c/o, A1-A2=110VAC/DC, Output=6A/250VAC gold-plated contacts, screw terminals

Specifications

Dimensions

Product Net Width
6.3 mm
Product Net Depth / Length
88.5 mm
Product Net Height76.4 mm
Product Net Weight0.03 kg

Technical

Function
Fully assembled interface relay CR-S
Rated Control Supply Voltage (Us)
110 V AC/DC
Output Signal
250 V / 6 A
Rated Operational Current AC-12 (Ie)
(230 V) 6 A
Rated Operational Current DC-13 (Ie)
(24 V) 1 A
Connecting Capacity
Flexible 2.5 mm²Rigid 2.5 mm²
Wire Stripping Length
7 mm
Standards
CAN/CSA C22.2 No.14IEC/EN 63000IEC/EN 61810-1IEC/EN 61984UL 508
Sub-FunctionRelay with gold-plated contacts
Output1 c/o (SPDT) contact
Terminal TypeScrew Terminals
Rated Operational Current DC-12 (Ie)(24 V) 6 A
Degree of ProtectionTerminals IP20
Tightening Torque0.5 N·m
Mounting on DIN RailTH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Classifications

Object Classification Code
K
eClass
V11.0 : 27371601
E-Number (Sweden)
4001405
ETIM 9EC001437 - Switching relay
E-Number (Finland)2712375

Environmental

Ambient Air Temperature
Operation -40 ... +55 °CStorage 0 ... +40 °C
RoHS StatusFollowing EU Directive 2011/65/EU

Technical UL/CSA

Connecting Capacity UL/CSA
Flexible 14 AWGRigid 14 AWG
Tightening Torque UL/CSA4.42 in·lb

Ordering

Minimum Order Quantity
10 piece
Customs Tariff Number85364900
