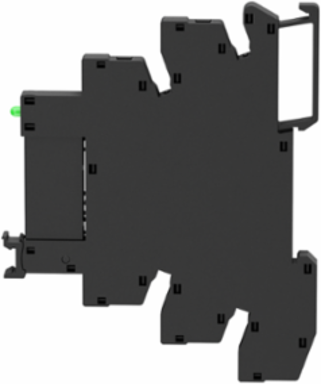

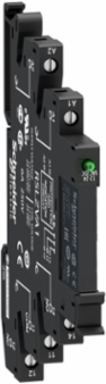

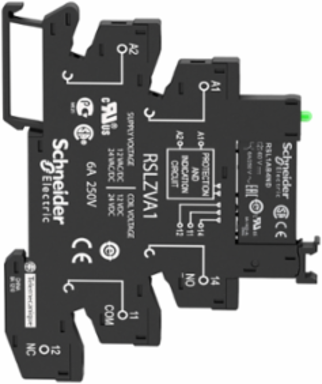

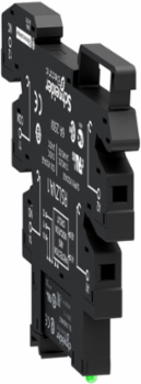

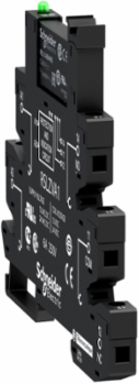

Schneider Electric RSL1PVFU Harmony Slim Interface Relay, 6A, 1CO, 110V AC/DC, 6.2mm Width
- MPN: RSL1PVFU
- PPN: SCH-RSL1PVFU
CAD
$22.78
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony RSL slim, pre-assembled plug-in relay and socket features a 110VAC/DC coil control voltage. It includes one changeover contact (SPDT-single pole, double throw) with a current rating of 6A. It has large choice of number of contacts for high rated current use. It also offers LED indicator and protection circuit. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. One of the slimmest interface relay on the market, with 6mm width, it can be installed nearly anywhere. It is compatible with high breaking capacity or low-level current application requirements. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night. 0 0 0 0 0 0 0 0 0 0
Features
- Engineered with an ultra-thin 6mm width, this RSL series interface relay allows for high-density mounting on standard 35mm DIN rails. This compact footprint enables industrial engineers to maximize enclosure space, fitting more I/O points into a smaller area without compromising on performance or thermal management.
- This part number includes both the high-performance subminiature relay and the screw terminal socket, arriving fully assembled and ready for the rail. By eliminating the need to source and match separate components, you reduce procurement complexity and significantly cut down on labor time during the initial cabinet build-out.
- Designed for versatile 60V control circuits, this relay provides a reliable bridge between low-power PLC or controller signals and high-power field devices. The wide voltage compatibility ensures stable switching for automation tasks, while the integrated protection circuit shields your sensitive electronic outputs from back-EMF spikes.
- Featuring a Single Pole Double Throw contact rated for up to 6 Amps, this relay provides a robust solution for switching valves, motors, and lighting. The high-quality silver alloy contacts ensure long-term electrical durability and low contact resistance, preventing premature failure in high-cycle manufacturing environments.
- Equipped with a built-in green LED, this unit provides instant visual confirmation of the relay's energized state, drastically reducing troubleshooting time during system faults. The integrated maintenance lever allows for secure relay retention in high-vibration environments while facilitating quick, tool-free replacement if service is required.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, Italy, Mexico, United States
Depth95 mm
Complementary Attributes
- Maximum Switching Capacity
- 1500 VA, 150 W
- Line Rated Current
- 6 A
- Minimum Switching Capacity
- 120 mW
- Minimum Switching Voltage
- 12 V
Control Circuit TypeAC/DC
Maximum Switching Voltage277 V
Minimum Switching Current100 mA
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Operating Rate
- <= 72000 cycles/hour no-load, <= 72000 cycles/hour no-load, <= 360 cycles/hour under load, <= 360 cycles/hour under load<= 72000 cycles/hour no-load, <= 72000 cycles/hour no-load, <= 360 cycles/hour under load, <= 360 cycles/hour under load
- Tightening Torque
- < 0.5 N.m M2.5, < 0.5 N.m M2.5< 0.5 N.m M2.5, < 0.5 N.m M2.5
- Certificate Agency
- CSA, UL, GOST
- Connections - Terminals
- screw connectors, screw connectors, 1 x 0.2...1 x 2.5 mm² 24 AWG...14 AWG) flexible with cable endscrew connectors, 1 x 0.2...1 x 2.5 mm² 24 AWG...14 AWG) solid without cable end
- Carbon Footprint Of The Distribution Phase [A4]
- 0.014662169004271046, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- kg CO2 eq., 0
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 3 kg CO2 eq., 3.302161647782238
- Local Publishable Date
- 2026-05-29
- Stocking Flag
- N
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2506033EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2353
- China Rohs In Scope
- Yes
- Phenolic Free Solution
- Yes
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Resistance
- 20500 Ohm DC 23 °C +/- 10 %
- Contact Operation
- standard
- Contacts Material
- silver alloy (AgSnO2)
- Control Type
- without lockable test button
- Electrical Durability
- 60000 cycles resistive, 6 A 250 V, AC-1
- Load Current
- 6 A 250 V AC 0.5 mm mounting distance
- Mechanical Durability
- 10000000 cycles
- Operating Position
- any position
- Product Or Component Type
- pre-assembled plug-in relay with socket
- Range Of Product
- Harmony Electromechanical Relays
- Reset Time
- 20 ms
- Safety Reliability Data
- B10d = 60000
- Series Name
- RSL series
- Shock Resistance
- 10 gn 11 ms) in operation IEC 60068-2-275 gn 11 ms) not operating IEC 60068-2-27
- Status Led
- with
- Test Levels
- level A group mounting
- Vibration Resistance
- 10 gn +/- 1 mm 10-150 Hz)10 cycles not operating IEC 60068-2-65 gn +/- 1 mm 10-150 Hz)10 cycles in operation IEC 60068-2-6
- Pep Code
- ENVPEP2506033EN
- Pep Verification Date
- 2025-06-30
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.

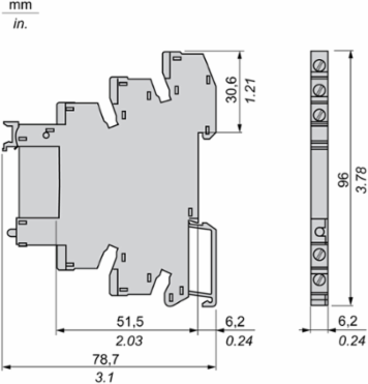

- Height Nominal
- 78.6 mm
- [Ie] Rated Operational Current
- 6 A 1 C/O AC-1/DC-1)IEC/UL
- [Ui] Rated Insulation Voltage
- 250 V IEC277 V cUL
- Drop-out Voltage Threshold
- >= 0.05 Uc>= 0.05 Uc
- Package Weight(Lbs)
- 28.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Operating Time5 ms reset, 12 ms
Connections Terminalsscrew connectors
[Uc] Control Circuit Voltage110 V AC/DC, 60 V
Terminals Description Iso N°1(A1-A2)CO, (11-12-14)OC, (A1-A2)CO, (11-12-14)OC
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.060543066469731316, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.3 kg CO2 eq., 0.2653537573903386
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Coil Consumption0.17 W, DC
Compatibility CodeRSL
Contact Terminal Arrangementseparate
Contacts Type And Composition1 C/O
Dielectric Strength1000 V AC between contacts4000 V AC between coil and contact
Fixing Modeplastic compression spring
MarkingCE
Mounting Support35 mm symmetrical DIN rail
Product AvailabilityStock - Normally stocked in distribution facility
Protection CategoryRT III
Relay Typeslim interface relay
ReturnabilityYes
Sale Per Indivisible Quantity10
Shape Of Pinflat (PCB type)
Software Versionv6.3.0.1-4
Sustainable PackagingYes
Total Lifecycle Carbon Footprint4 kg CO2 eq.
Input Voltage 9 Input Voltage110 V
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionRSL Interface plug-in Relay has large choice of number of contacts for high rated current use.It helps to reduce the size of enclosures and increases machine reliability and you can mount nearly everywhere. One of the slimiest interface relay on the market with 6mm width and it can be installed nearly anywhere and this product is assembled with socket. Easy installation and withdrawal the relay from its socket. It is compatible with high breaking capacity or low-level current application requirements.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; High voltage; 2020; China, CN
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Global, GLO
Recyclability Potential In %41
Width Nominal6.2 mm
[Ithe] Conventional Enclosed Thermal Current6 A -40-55 °C
[Uimp] Rated Impulse Withstand Voltage6 kV IEC
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8537109150
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Carbon Footprint
- 3.642720640646579
- Circularity Profile
- ENVEOLI2506033EN
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2506033EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Toxic FreeYes
Ambient Air Temperature For Operation-40-70 °C-40-70 °C
Environmental DisclosureENVPEP2506033EN
Ip Degree Of ProtectionIP40 conforming to IEC 60529
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-06-30
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- pre-assembled plug-in relay with socket
Range Of ProductHarmony Electromechanical Relays
ETIM
- ETIM 8
- EC001437
ETIM 9EC001437
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Input Voltage
- 110 V AC/DC 88...126.5 V)
Overview Attributes
- Device Presentation
- complete product
