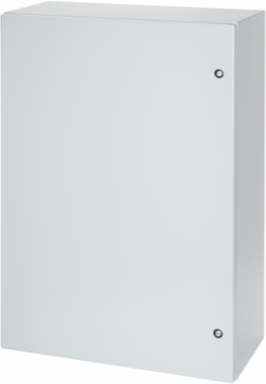

nVent Hoffman CSD16166 Concept Single-Door Enclosure 16 Inch x 16 Inch x 6 Inch, Steel, NEMA Type 12
- MPN: CSD16166
- UPC: 783510773106
- PPN: HOF-CSD16166
- UNSPSC: 39121324
CAD
$566.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Concept Enclosures are ideal for machine control applications. This Concept Single-Door Enclosure, CSD16166 item measures 16.00x16.00x6.00 inches with a material of Steel colored Gray.
Features
- Seams continuously welded and ground smooth
- Corner-formed doors
- Simple easy-to-remove and install hinge pins with built-in captivation clip
- High-torque threadless studs and fasteners on door
- Minimum-width body flange provides maximum door opening (210 degrees)
- Door opens 210 degrees
- External formed body flange
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for optional external wall-mount brackets
- Removable door with hidden hinges for clean, aesthetic appearance
- Seamless foam-in-place gasket
- Quarter-turn slotted latch(es)
- Door alignment device on doors wider than 30 inch
- Four hinges on 60-inch high enclosures
- Grounding stud on body; bonding provision on door
- Provisions on door for optional high-impact thermoplastic data pocket
- Hardware kit with panel mounting nuts, panel grounding hardware and sealing washers
- Installation instructions provided
- Three-point latch system on enclosures where A is equal to or greater than 42-in. with quarter-turn, slotted latch
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 406 |
| Protection Rating | NEMA Type 12 |
| Finish | Powder Coated |
| Body Thickness | 1.52 |
| Mounting (G x H) | 368 x 368 |
| Latch Type | Quarter-Turn |
| Weight | 19.3 |
| Material | Steel |
| Color | ANSI 61 Gray |
| Height (H) | 406 |
|---|---|
| Depth (D) | 152 |
| Product Family | Concept |
| Color Code | ANSI 61 |
| Door Thickness | 1.52 |
| Latch Quantity | 1 |
| IP Rating | IP66 |
| Sub Brand | Concept |
| Size | 16.00x16.00x6.00 in |
| NEMA Rating | 12 Indoor, dust-resistant |
