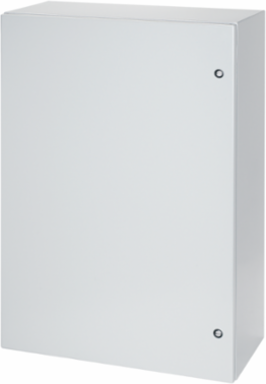

nVent Hoffman CSD20208 Concept Single-Door Enclosure 20 Inch x 20 Inch x 8 Inch Steel, NEMA Type 12
- MPN: CSD20208
- UPC: 783510774202
- PPN: HOF-CSD20208
- UNSPSC: 39121324
CAD
$394.46
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Concept Enclosures are ideal for machine control applications. This Concept Single-Door Enclosure, CSD20208 item measures 20.00x20.00x8.00 inches with a material of Steel colored Gray.
Features
- Seams continuously welded and ground smooth
- Corner-formed doors
- Simple easy-to-remove and install hinge pins with built-in captivation clip
- High-torque threadless studs and fasteners on door
- Minimum-width body flange provides maximum door opening (210 degrees)
- Door opens 210 degrees
- External formed body flange
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for optional external wall-mount brackets
- Removable door with hidden hinges for clean, aesthetic appearance
- Seamless foam-in-place gasket
- Quarter-turn slotted latch(es)
- Door alignment device on doors wider than 30 inch
- Four hinges on 60-inch high enclosures
- Grounding stud on body; bonding provision on door
- Provisions on door for optional high-impact thermoplastic data pocket
- Hardware kit with panel mounting nuts, panel grounding hardware and sealing washers
- Installation instructions provided
- Three-point latch system on enclosures where A is equal to or greater than 42-in. with quarter-turn, slotted latch
Documentation & Downloads
Specifications
Additional
| NEMA Rating | 12 Indoor, dust-resistant |
|---|---|
| Latch Type | Quarter-turn slotted latch |
| Door Opening Angle | 210 degrees |
| Size | 20.00 x 20.00 x 8.00 in |
| Door Thickness | 1.52 mm |
| Mounting | Mounting holes in back of body for direct mounting or optional external mounting brackets; 470 x 470 mm |
| Finish | Powder Coated |
| Body Gauge | 16 gauge |
| Door Features | Removable with hidden hinges; door alignment device for doors wider than 30 in |
| Gasket | Seamless foam-in-place gasket |
| Latch Pins | High-torque threadless studs and fasteners on door |
| Customization | Provisions on door for optional high-impact thermoplastic data pocket |
| Product Family | Concept |
| IP Rating | IP66 |
|---|---|
| Latch Quantity | 1 |
| Latch System | Three-point latch system (for enclosures 42 in height) |
| Weight | 29.6 lb |
| Body Thickness | 1.52 mm |
| Material | Steel |
| Door Gauge | 14 or 16 gauge |
| Construction | Seams continuously welded and ground smooth, corner-formed doors |
| Hardware Included | Hardware kit with panel mounting nuts, grounding hardware, sealing washers |
| Body Flange | External formed minimum-width body flange for maximum door opening |
| Grounding | Grounding stud on body; bonding provision on door |
| Color | ANSI 61 Gray |
| Sub Brand | Concept |
