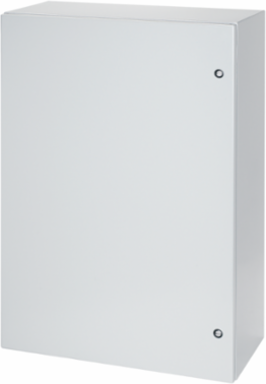

nVent Hoffman CSD24208 Concept Single-Door Enclosure 24.00x20.00x8.00 in, Steel, NEMA Type 12

MPN: CSD24208
UPC: 783510774509
PPN: HOF-CSD24208
UNSPSC: 39121324

$423.38

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Concept Enclosures are ideal for machine control applications. This Concept Single-Door Enclosure, CSD24208 item measures 24.00x20.00x8.00 inches with a material of Steel colored Gray.

Features

NEMA Type 12 rating for indoor dust-resistant protection
IP66 rated for protection against dust and water ingress
Constructed from 1.52 mm thick steel for enhanced strength
ANSI 61 gray powder-coated finish for corrosion resistance
Quarter-turn latch for quick and secure access
Door opens 210 degrees for optimized access
Removable door with hidden hinges for clean, aesthetic appearance
Seams continuously welded and ground smooth for durability
Three-point latch system on large enclosures with quarter-turn slotted latch
Mounting holes and studs compatible with standard and optional Concept panels

Documentation & Downloads

Specifications

Key Specifications

BABA	Contact Manufacturer
Width (W)	508
Protection Rating	NEMA Type 12
Finish	Powder Coated
Body Thickness	1.52
Mounting (G x H)	572 x 470
Latch Type	Quarter-Turn
Weight	33.6
Material	Steel
Color	ANSI 61 Gray

Height (H)	610
Depth (D)	203
Product Family	Concept
Color Code	ANSI 61
Door Thickness	1.52
Latch Quantity	1
IP Rating	IP66
Sub Brand	Concept
Size	24.00x20.00x8.00 in
NEMA Rating	12 Indoor, dust-resistant
