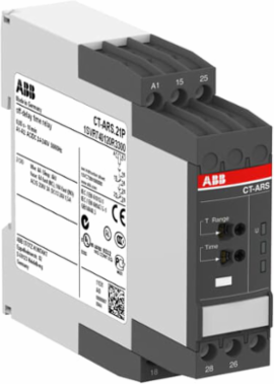

ABB 1SVR740120R3300 Electronic Time Relay, True OFF-Delay, 24-240V AC/DC, 2 c/o Contacts
- MPN: 1SVR740120R3300
- UPC: 804325584470
- PPN: ABB-1SVR740120R3300
- UNSPSC: 39122329
CAD
$362.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The CT-ARS.21P is a single-function electronic time relay from the CT-S timer range. It provides an OFF-delay (true delay on break) function without auxiliary voltage and with 10 time ranges from 0.05 s to 300 h. This time relay operates with a rated control supply voltage of 24 - 240 V AC / DC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers maintenance free Easy Connect Technology with push-in terminals.
Specifications
Additional
- Function
- True OFF-Delay
- Rated Control Supply Voltage
- 24 ... 240 V AC/DC
- Time Range
- 0.05 s ... 10 min
- Rated Operational Current AC-15 (Ie)
- (230 V) 3 A
- Rated Operational Current DC-13 (Ie)
- (24 V) 1.5 A
- Maximum Operating Voltage UL/CSA
- Output Circuit 300 V AC
- Overvoltage Category
- III
- Rated Impulse Withstand Voltage (Uimp)
- Input Circuit 4 kV, Output Circuit 4 kV
- Electrical Durability
- AC-12 100000 cycles
- Flammability According to UL94
- V-0
- Short-Circuit Protective Devices
- Output Circuit NC - F Type Fuses 6 A, Output Circuit NO - F Type Fuses 10 A
- Connecting Capacity
- Flexible 2x 18-16 AWG, Rigid 2x 20-16 AWG
- Terminal Type
- Screwless Terminals
- Mounting Position
- 1 ... 6
- Product Net Width
- 22.5 mm
- Product Net Depth / Length
- 103.7 mm
- Ambient Air Temperature
- Operation -40 ... +60 C, Storage -40 ... +85 C
- E-Number (Sweden)
- 4033138
- RoHS Status
- Following EU Directive 2011/65/EU
Contact Configuration2 c/o (SPDT) contacts
Contact Rating250 V, 4 A
Rated Operational Current AC-12 (Ie)(230 V) 4 A
Rated Operational Current DC-12 (Ie)(24 V) 4 A
Rated Operational VoltageAuxiliary Circuit 250 V
Pollution Degree3
Rated Frequency50 Hz, 60 Hz, DC
Mechanical Durability30000000 cycles
Degree of ProtectionHousing IP50, Terminals IP20
StandardsCAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 61812-1, UL 508
Overvoltage CategoryIII
Connecting Capacity Flexible with Ferrule2x 0.5 ... 1.5 mm2
Wire Stripping Length8 mm
Mounting on DIN RailTH35-15 and TH35-7.5 acc. to IEC 60715
Product Net Height85.6 mm
Product Net Weight0.115 kg
E-Number (Finland)2712226
ETIMEC001439 - Timer relay
