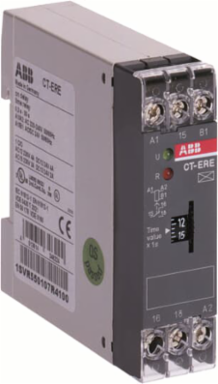

ABB 1SVR550107R4100 CT-ERE ON-Delay Timer Relay 0.3-30s, 24V AC/DC 220-240V AC, SPDT Output
ABB 1SVR550107R4100 CT-ERE ON-Delay Timer Relay 0.3-30s, 24V AC/DC 220-240V AC, SPDT Output
- MPN: 1SVR550107R4100
- PPN: ABB-1SVR550107R4100
- UNSPSC: 39122329
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$75.51/ EA
Description
The CT-ERE is a single-function electronic time relay from the CT-E timer range. It provides an ON-delay (delay on make) function with a time range from 0.3 s to 30 s. This time relay operates with a rated control supply voltage of 24 V AC / DC / 220 - 240 V AC and has a 1 c/o (SPDT) output rated at 250 V / 4 A.
Specifications
Dimensions
- Product Net Width
- 22.5 mm
- Product Net Depth / Length
- 78.5 mm
Product Net Height78 mm
Product Net Weight0.067 kg
Technical
- Timer Relay Type
- ON-Delay
- Rated Control Supply Voltage (Us)
- 220 ... 240 V AC24 V AC/DC
- Terminal Type
- Screw Terminals
- Rated Operational Current AC-15 (Ie)
- (230 V) 3 A
- Rated Operational Current DC-13 (Ie)
- (24 V) 2 A
- Mounting on DIN Rail
- TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Time Range0.3 ... 30 s
Output1 c/o (SPDT) contact
Rated Operational Current AC-12 (Ie)(230 V) 4 A
Rated Operational Current DC-12 (Ie)(24 V) 4 A
Mounting Position1 ... 6
StandardsCAN/CSA C22.2 No.14IEC/EN 63000IEC/EN 61812-1UL 508
Classifications
- Object Classification Code
- K
- eClass
- V11.0 : 27371605
- E-Number (Sweden)
- 4033078
ETIM 9EC001439 - Timer relay
E-Number (Finland)2712610
Environmental
- RoHS Status
- Following EU Directive 2011/65/EU
Ordering
- Minimum Order Quantity
- 1 piece
- Replacement Product ID (NEW)
- 1SVR508100R0000
Customs Tariff Number85364900
