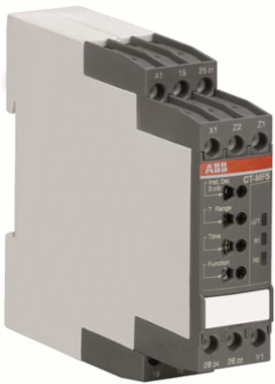

ABB 1SVR740010R0200 Multifunction Time Relay, 24-240V AC/DC, 10 Timing Functions, 2 c/o Contacts
- MPN: 1SVR740010R0200
- UPC: 804325584340
- PPN: ABB-1SVR740010R0200
- UNSPSC: 39122329
CAD
$356.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The CT-MFS.21P is a multifunction electronic time relay from the CT-S timer range. It provides 10 timing functions with 10 time ranges from 0.05 s to 300 h. This time relay operates with a rated control supply voltage of 24 - 240 V AC / DC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. Two control inputs work with volt-free (floating) triggering.The CT-MFS.21P offers the possibility of connecting a remote potentiometer for the fine adjustment of the time delay. The second of the c/o contacts can be selected as an instantaneous contact. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers maintenance free Easy Connect Technology with push-in terminals.
Specifications
Additional
- Rated Control Supply Voltage
- 24 ... 240 V AC/DC
- Contact Rating
- 250 V, 4 A
- Timer Relay Type
- Impulse OFF, Impulse ON, OFF-Delay, ON-Delay, Star-Delta
- Rated Operational Current AC-12 (Ie)
- 4 A (230 V)
- Rated Operational Current DC-12 (Ie)
- 4 A (24 V)
- Electrical Durability
- 100000 cycles AC-12
- Rated Frequency
- DC, 50 Hz, 60 Hz
- Short-Circuit Protective Devices
- NC - F Type Fuses 6 A, NO - F Type Fuses 10 A
- Mounting on DIN Rail
- TH35-7.5 and TH35-15 acc. to IEC 60715
- Overvoltage Category
- III
- Maximum Operating Voltage UL/CSA
- 300 V AC Output Circuit
- Wire Stripping Length
- 8 mm
- Terminal Type
- Screwless Terminals
- Ambient Air Temperature
- Operation -40 to +60 C, Storage -40 to +85 C
- Product Net Length
- 103.7 mm
- Product Net Weight
- 0.133 kg
- Connecting Capacity
- Flexible 2x 18-16 AWG, Rigid 2x 20-16 AWG; Flexible 0.5 to 1.5 mm2 (with/without ferrule), Rigid 0.5 to 1.5 mm2
- Standards
- CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 61812-1, UL 508
Output2 c/o (SPDT) contacts
Time Range0.05 s to 300 h
Rated Operational Current AC-15 (Ie)3 A (230 V)
Rated Operational Current DC-13 (Ie)2 A (24 V)
Rated Operational VoltageAuxiliary Circuit 250 V
Mechanical Durability30000000 cycles
Minimum Switching Capacity12 V, 10 mA
Pollution Degree3
Mounting PositionPositions 1 to 6
Rated Insulation Voltage (Ui)500 V (Input/Output Circuit), 300 V (Output Circuit 1 / 2)
Pilot Duty UL/CSAB300
Degree of ProtectionHousing IP50, Terminals IP20
Flammability According to UL94V-0
Product Net Height85.6 mm
Product Net Width22.5 mm
MaterialFlexible and rigid wiring capacity per specifications
FunctionRemote potentiometer connection
RoHS StatusComplies with EU Directive 2011/65/EU
