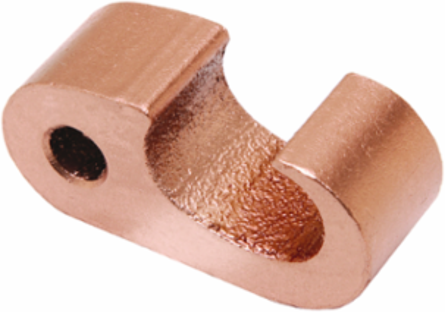

Burndy YGHP29C29 Copper Compression Ground Rod Connector, 3/0 AWG - 250 kcmil, 1/2-5/8 Inch Rod Dia.
- MPN: YGHP29C29
- UPC: 781810220948
- PPN: BUR-279106
CAD
$71.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Compression Ground Rod Connector, 3/0 Str - 250 Kcmil, 1/2" - 5/8" Rod Dia.
Documentation & Downloads
Specifications
Additional
| Conductor Size Run Range | 1/0 AWG - 250 kcmil |
|---|---|
| Rod Diameter Range | 1/2 in - 5/8 in |
| Number of Crimps Required | 1 |
| Connector Type | Tap |
| Material | Copper |
| Plating Type | Unplated |
| Prefilled Oxide Inhibitor | Yes |
| UL Listed | Yes |
| Standards | UL467, IEEE 837 |
| Conductor Size Tap Range | 3/0 AWG - 250 kcmil |
|---|---|
| Rebar Size Range | #3 - #4 |
| Die Index | 997 |

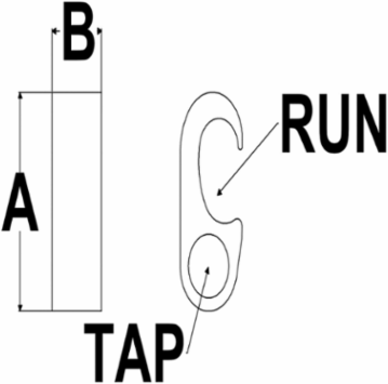

| Dimension B Length | 0.75 in |
| Plated | No |
| Oxide Inhibitor Type | Penetrox E |
| Application | Direct Burial in Earth and Concrete |
| Certification - CSA Approved | Yes |
| RoHS Compliance | CM |
