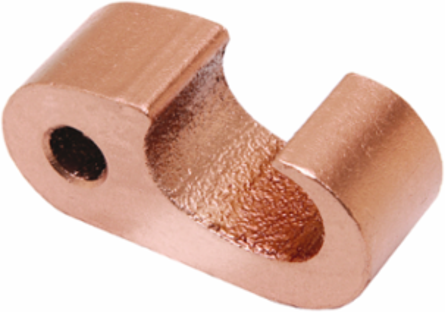

Burndy YGHP29C2 Copper Compression Ground Rod Connector, #4-#2 Str, 1/2-5/8 Inch Rod Dia.
- MPN: YGHP29C2
- UPC: 781810220924
- PPN: BUR-279099
CAD
$56.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Compression Ground Rod Connector, #4 Sol - #2 Str, 1/2" - 5/8" Rod Dia.
Documentation & Downloads
Specifications
Additional

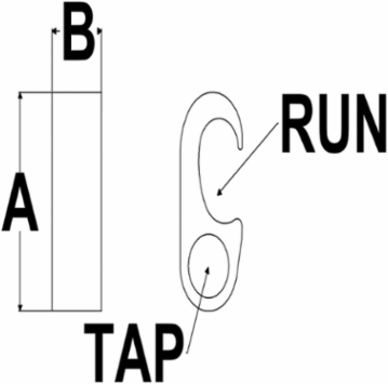

- Connector Type
- Tap
- Dimension Length
- 0.75 in
- Material
- Copper
- Oxide Inhibitor Type
- Penetrox E
- Copper Solid Tap Size
- 4 AWG
- Copper Stranded Run Range
- 1/0 - 250 kcmil
- Rod Run Range
- 1/2 in - 5/8 in
- RoHS Compliance Status
- CM
- Certification - CSA Approved
- Yes
Number of Crimps Required1
Die Index997
Plating TypeUnplated
Prefilled Oxide InhibitorYes
Copper Stranded Tap Range4 AWG - 2 AWG
Rebar Run Range3 - 4 AWG
UL Listed Direct BurialYes
Industry Standards MetUL467, IEEE 837, IEEE 837 2014 Qualified
