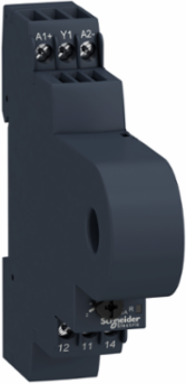

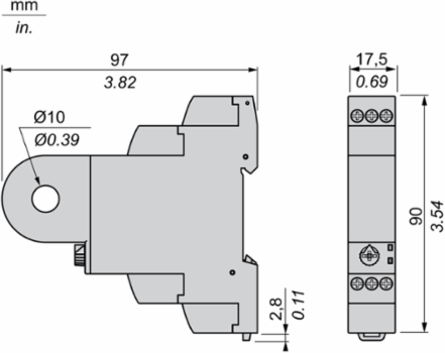

Schneider Electric RM17JC00MW Harmony Current Control Relay, 5A, 1 C/O, 250V AC/DC, 17.5mm Width

  • MPN: RM17JC00MW
  • PPN: SCH-RM17JC00MW
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $150.32

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Harmony RM17-J control relay allows monitoring of current control in 3-phase networks. This modular 3-phase control relay is ideal for monitoring of electrical values and current variation in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slimmest form-factors with 17.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

    Documentation & Downloads

    Specifications

    Key Specifications

    Width17.5 mm
    Country of OriginBrazil, France, Indonesia, Mexico, United States

    Complementary Attributes

    Control Circuit Voltage Limits- 15 % + 10 % Un, - 15 % + 10 % Un
    Line Rated Current5 A
    Maximum Power Consumption In Va3 VA
    Maximum Switching Voltage250 V AC/DC
    Control Circuit Frequency40...70 Hz sinusoidal
    Maximum Measuring Cycle30 ms measurement cycle as true rms value
    Maximum Power Consumption In W1 W
    Minimum Switching Current10 mA 5 V DC

    Important Information Attributes

    Persona Type IdsBM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation IdCOMMERCIAL, INDUSTRIAL
    Insulation Resistance> 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60664-1, > 500 MOhm 500 V DC IEC 60664-1, > 500 MOhm 500 V DC IEC 60664-1, > 500 MOhm 500 V DC IEC 60664-1> 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60664-1
    Measurement Accuracy+/- 10 % of the full scale value, +/- 10 % of the full scale value
    Operating Rate<= 360 operations/hour full load, <= 360 operations/hour full load<= 360 operations/hour full load, <= 360 operations/hour full load
    Response Time< 200 ms (in the event of a fault), < 200 ms (in the event of a fault)< 200 ms (in the event of a fault), < 200 ms (in the event of a fault)
    Vibration Resistance0.35 mm (f= 5-57.6 Hz) conforming to IEC 60068-2-6, 1 gn (f= 57.6-150 Hz) conforming to IEC 60255-21-1
    Connections - Terminalsscrew terminals, 1 x 0.5...1 x 4 mm² 20 AWG...11 AWG) solid without cable endscrew terminals, 2 x 0.5...2 x 2.5 mm² 20 AWG...14 AWG) solid without cable endscrew terminals, 1 x 0.2...1 x 2.5 mm² 24 AWG...12 AWG) flexible with cable endscrew terminals, 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWG) flexible with cable end, screw connectors
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.29903364027689533, 0.3 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]3 kg CO2 eq., 2.509626145112345
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Contacts Materialcadmium free
    Control Typewithout test button
    Electrical Durability100000 cycles
    Functionalityovercurrent detection
    Hysteresis15-15 % fixed threshold setting
    Insulationbetween supply and measurement
    Measurement Range2...20 A AC
    Mounting Support35 mm symmetrical DIN rail conforming to IEC 60715
    Overvoltage CategoryIII conforming to IEC 60664-1
    Product AvailabilityStock - Normally stocked in distribution facility
    Range Of ProductHarmony Control Relays
    Relay NameRM17JC
    ReturnabilityYes
    Software Versionv6.2-6
    Sustainable PackagingYes
    Threshold Setting10...100 %
    Time Delay Typewithout
    Contacts Composition1 C/O
    Pep CodeENVPEP1601001EN
    Pep Verification Date2025-03-09
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Manufacturing [A1-a3]Indonesia, ID
    Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Asia Pacific, APAC
    Width Nominal17.5 mm
    [Ui] Rated Insulation Voltage400 V IEC 60664-1
    Non-dissipating Shock Wave4 kV
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8536490080
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    MarkingCE : 73/23/EEC, CE : EMC 89/336/EEC
    Measurement Error+/- 0.05 %/°C with temperature variation, +/- 0.05 %/°C with temperature variation, < 1 % over the whole range with voltage variation, < 1 % over the whole range with voltage variation+/- 0.05 %/°C with temperature variation, +/- 0.05 %/°C with temperature variation, < 1 % over the whole range with voltage variation, < 1 % over the whole range with voltage variation
    Repeat Accuracy+/- 0.5 % input and measurement circuit, +/- 0.5 % input and measurement circuit+/- 0.5 % input and measurement circuit, +/- 0.5 % input and measurement circuit
    Utilisation CategoryAC-12 IEC 60947-5-1, AC-13 IEC 60947-5-1, AC-14 IEC 60947-5-1, AC-15 IEC 60947-5-1, DC-12 IEC 60947-5-1, DC-13 IEC 60947-5-1, DC-14 IEC 60947-5-1
    Certificate AgencyGL, C-tick, GOST, UL, CSA
    Carbon Footprint Of The Distribution Phase [A4]0.3270642168579112, 0.3 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.000495623176979725
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]35 kg CO2 eq., 35.34068057485635
    Local Publishable Date2026-03-26
    Stocking FlagN
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI1601001EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Compatibility CodeRM17
    Contacts Type And Composition1 C/O
    Dielectric Test Voltage2 kV AC 50 Hz
    Electromagnetic Compatibilityemission standard for industrial environments conforming to IEC 61000-6-4emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3immunity for industrial environments conforming to NF EN/IEC 61000-6-2
    Housing Materialpolycarbonate
    Immunity To Microbreaks10 ms
    Local SignallingLED (green) for power ONLED (yellow) for relay ON
    Mechanical Durability30000000 cycles
    Operating Positionany position without derating
    Polarityyes DC
    Product Or Component Typecurrent control relay
    Relay Monitored Parametersovercurrent detection
    Relay Typecurrent control relay
    Shock Resistance15 gn 11 ms IEC 60255-21-1
    Supply Voltage Limits20.4-264 V AC/DC
    Switching Capacity In Va1250 VA
    Tightening Torque0.6-1 N.m IEC 60947-1
    Total Lifecycle Carbon Footprint38 kg CO2 eq.
    Measurement Range 42...20 A AC
    Database Version2024-04
    Pcr VersionPCR-4-ed4-EN-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionHarmony RM17-TE relay allows monitoring of power supply circuits in 3-phase networks. This modular multi function 3-phase supply control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It works with power consumption of 2.7 W in 80% active mode with life span of 10 years.
    Functional-unit UnitUnit
    Energy Consumption On Product Lifetime In Kwh70.08
    Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Asia Pacific, APAC
    Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Asia Pacific, APAC
    [Uc] Control Circuit Voltage24...240 V
    [Us] Rated Supply VoltageAC/DC24...240 V AC/DC 50/60 Hz, non self-powered
    Run-up Delay At Power-up0.5 s
    Package Weight(Lbs)117.000 g
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Ambient Air Temperature For Operation-20-50 °C-20-50 °C
    Environmental DisclosureENVPEP1601001EN
    Ip Degree Of ProtectionIP20 IEC 60529 terminals)IP30 IEC 60529 casing)
    Packaging Without Single Use PlasticYes
    Relative Humidity95-95 % 55-55 °C IEC 60068-2-30
    Pep Verification Date2025-03-09
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint38.47690020028048
    Circularity ProfileENVEOLI1601001EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP1601001EN
    Pcr VersionPCR-4-ed4-EN-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Typecurrent control relay
    Range Of ProductHarmony Control Relays

    ETIM

    ETIM 8EC001440
    ETIM 9EC001440

    Output Attributes

    Nominal Output Current5 A
    Output Contacts1 C/O

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months

    Input Attributes

    Input Current100000 mA permanent at 25 °C300000 mA non repetitive < 3 s at 25 °C
