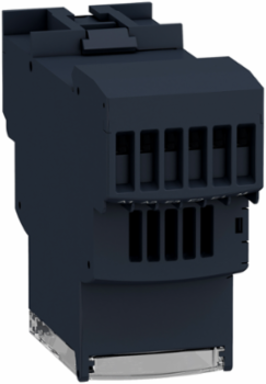

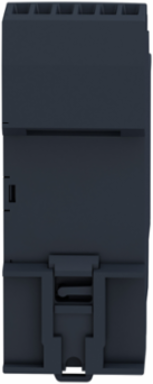

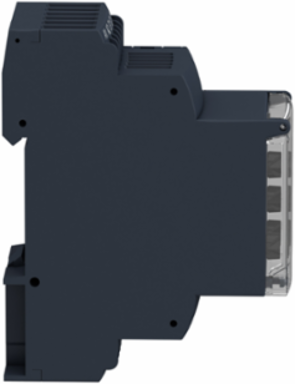

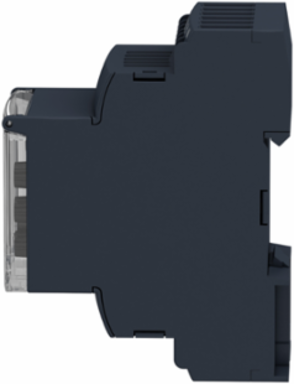

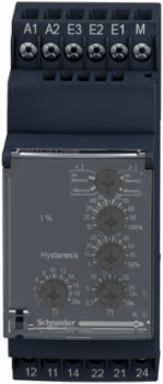

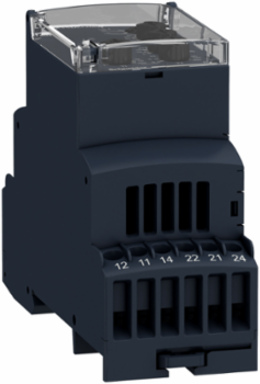

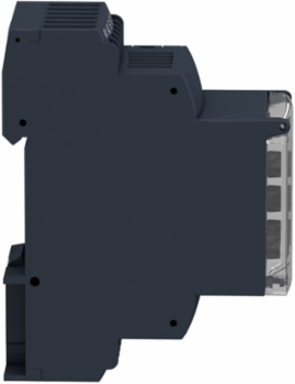

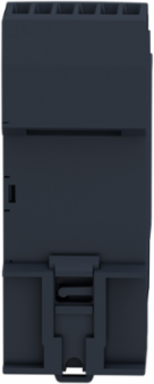

Schneider Electric RM35JA31MW Harmony Current Control Relay, 5A, 35 mm Width, 2 C/O
- MPN: RM35JA31MW
- PPN: SCH-RM35JA31MW
CAD
$174.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet

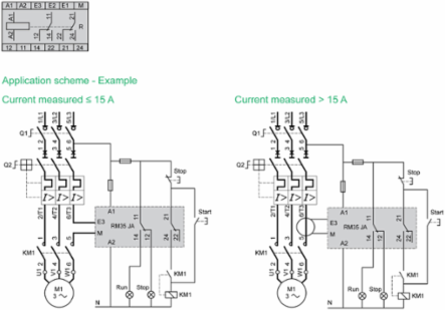

Description

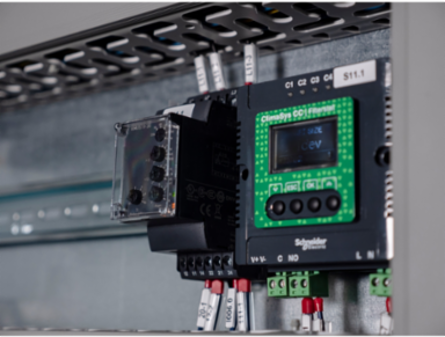

This Harmony RM35-JA relay allows monitoring of current control in single phase networks. This modular multi function single phase current control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a sealable cover, simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, Indonesia, United States

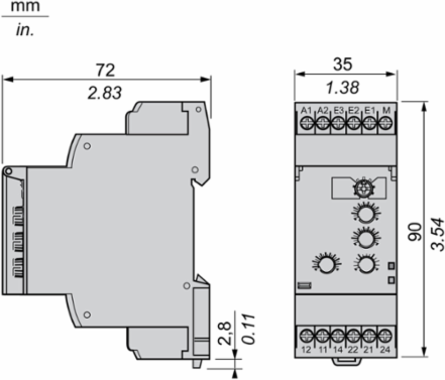

Width35 mm
Complementary Attributes
- Control Circuit Voltage Limits
- - 15 % + 10 % Un, - 15 % + 10 % Un
- Line Rated Current
- 5 A
- Maximum Power Consumption In Va
- 3.5 VA AC
- Maximum Switching Current
- 5 A AC
- Minimum Switching Current
- 10 mA 5 V DC
Control Circuit Frequency40...70 Hz +/- 10 %
Maximum Measuring Cycle30 ms measurement cycle as true rms value
Maximum Power Consumption In W0.6 W DC
Maximum Switching Voltage250 V AC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Dielectric Test Voltage
- 2 kV AC 50 Hz, 1 min IEC 60255-5, 2 kV AC 50 Hz, 1 min IEC 60664-1
- Marking
- CE : EMC 89/336/EEC, CE : 73/23/EEC
- Operating Rate
- <= 360 operations/hour full load, <= 360 operations/hour full load<= 360 operations/hour full load, <= 360 operations/hour full load
- Safety Reliability Data
- MTTFd = 296.8 years, B10d = 270000
- Vibration Resistance
- 0.35 mm (f= 5-57.6 Hz) conforming to IEC 60068-2-6, 1 gn (f= 57.6-150 Hz) conforming to IEC 60255-21-1
- Connections - Terminals
- screw terminals, 1 x 0.5...1 x 4 mm² 20 AWG...11 AWG) solid without cable endscrew terminals, 2 x 0.5...2 x 2.5 mm² 20 AWG...14 AWG) solid without cable endscrew terminals, 1 x 0.2...1 x 2.5 mm² 24 AWG...12 AWG) flexible with cable endscrew terminals, 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWG) flexible with cable end, screw connectors
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0238468659, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- kg CO2 eq., 0
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 40 kg CO2 eq., 39.7498772978
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1601004EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1918
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Compatibility Code
- RM3
- Contacts Type And Composition
- 2 C/O
- Electrical Durability
- 100000 cycles
- Functionality
- overcurrent or undercurrent in window mode
- Hysteresis
- 5-50 % threshold setting
- Insulation
- between supply and measurement
- Measurement Error
- 0.05 %/°C with temperature variation1 by volt over the whole range with voltage variation
- Mechanical Durability
- 30000000 cycles
- Operating Position
- any position without derating
- Polarity
- no DC
- Product Or Component Type
- current control relay
- Relay Monitored Parameters
- overcurrent and undercurrent control
- Relay Type
- current control relay
- Resistance Across Terminals
- 1 Ohm E2-M terminals5 Ohm E1-M terminals0.2 Ohm E3-M terminals
- Shock Resistance
- 15 gn 11 ms IEC 60255-21-1
- Supply Voltage Limits
- 20.4-264 V AC/DC
- Switching Capacity In Va
- 1250 VA
- Tightening Torque
- 0.6-1 N.m IEC 60947-1
- Total Lifecycle Carbon Footprint
- 42 kg CO2 eq.
- Measurement Range 4
- 2...500 mA AC/DC E2-M terminals
- Database Version
- 2013-02
- Pcr Version
- PCR-ed2
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- ELCD_Electricity_mix_<lt/>1kV_EU-27__ELCD-0089
- Energy Model - End Of Life [C1-c4]
- ELCD_Electricity_mix_<lt/>1kV_EU-27__ELCD-0089
- Width Nominal
- 35 mm
- [Ui] Rated Insulation Voltage
- 250 V IEC 60664-1
- Run-up Delay At Power-up
- 0.3 s
- Package Weight(Lbs)
- 138.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Insulation Resistance> 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60664-1, > 500 MOhm 500 V DC between supply and relay output IEC 60664-1, > 500 MOhm 500 V DC between supply and relay output IEC 60664-1, > 500 MOhm 500 V DC between supply and relay output IEC 60664-1, > 500 MOhm 500 V DC between supply and relay output IEC 60664-1, > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5, > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5, > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5, > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5, > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5, > 1 MOhm 500 V DC between supply and measurement IEC 60664-1, > 1 MOhm 500 V DC between supply and measurement IEC 60664-1, > 1 MOhm 500 V DC between supply and measurement IEC 60664-1, > 1 MOhm 500 V DC between supply and measurement IEC 60664-1, > 1 MOhm 500 V DC between supply and measurement IEC 60664-1> 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5
Measurement Accuracy+/- 10 % of the full scale value, +/- 10 % of the full scale value
Repeat Accuracy+/- 0.5 % input and measurement circuit, +/- 0.5 % input and measurement circuit, +/- 2 % time delay, +/- 2 % time delay+/- 0.5 % input and measurement circuit, +/- 0.5 % input and measurement circuit, +/- 2 % time delay, +/- 2 % time delay
Utilisation CategoryAC-12 IEC 60947-5-1, AC-13 IEC 60947-5-1, AC-14 IEC 60947-5-1, AC-15 IEC 60947-5-1, DC-12 IEC 60947-5-1, DC-13 IEC 60947-5-1, DC-14 IEC 60947-5-1
Certificate AgencyGL, CSA, GOST, UL, C-tick
Non-dissipating Shock Wave4 kV IEC 60255-5, 4 kV IEC 60664-1, 4 kV IEC 61000-4-5
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.0091526182, 0 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]2 kg CO2 eq., 2.4586778537
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Contacts Materialcadmium free
Control Typewithout test button
Electromagnetic Compatibilityemission standard for industrial environments conforming to IEC 61000-6-4emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3immunity for industrial environments conforming to NF EN/IEC 61000-6-2
Housing Materialpolycarbonate
Immunity To Microbreaks50 ms
Local SignallingLED (green) for power ONLED (yellow) for relay ON
Measurement Range2...500 mA AC/DC E2-M terminals
Mounting Support35 mm symmetrical DIN rail conforming to IEC 60715
Overvoltage CategoryIII conforming to IEC 60664-1
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductHarmony Control Relays
Relay NameRM35JA
Reset Time1500 ms time delay
ReturnabilityYes
Software Version5.1
Sustainable PackagingYes
Threshold Setting10...100 %
Time Delay Typeadjustable 0.3...30 s, 0 + 10 % Tt- time delay upon faultadjustable 1...20 s, 0 + 10 % Ti- inhibition time delay upon startup
Contacts Composition2 C/O
Pep CodeENVPEP1601004EN
Pep Verification Date2016-01-01
Data Sourceextrapolated product
Energy Consumption On Product Lifetime In Kwh67.2768
Energy Model - Use [B6]ELCD_Electricity_mix_<lt/>1kV_EU-27__ELCD-0089
Recyclability Potential In %8
[Uc] Control Circuit Voltage24...240 V
[Us] Rated Supply Voltage24...240 V AC/DC 50/60 Hz, non self-powered
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536490075
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-70 °C, -40-70 °C
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -20-50 °C-20-50 °C
- Environmental Disclosure
- ENVPEP1601004EN
- Ip Degree Of Protection
- IP20 IEC 60529 terminals)IP30 IEC 60529 casing)
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 95-95 % 55-55 °C IEC 60068-2-30
- Pep Verification Date
- 2016-01-01
Take BackNo
China Rohs RegulationX
Carbon Footprint42.2415546356
Circularity ProfileENVEOLI1601004EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1601004EN
Pcr VersionPCR-ed2
General Attributes
- Product Or Component Type
- current control relay
Range Of ProductHarmony Control Relays
ETIM
- ETIM 8
- EC001440
ETIM 9EC001440
Output Attributes
- Nominal Output Current
- 5 A
Output Contacts2 C/O
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
