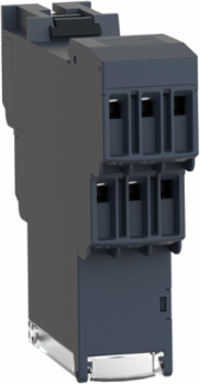

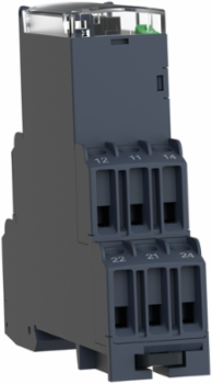

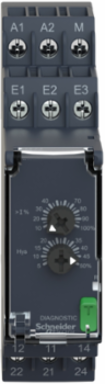

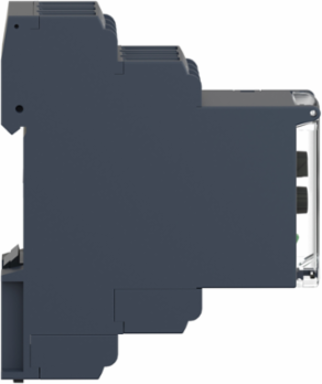

Schneider Electric RM22JA21MR Harmony Control Relay, 8A, 24-240V AC/DC, 22.5mm Width
- MPN: RM22JA21MR
- PPN: SCH-RM22JA21MR
CAD
$144.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony RM22JA control relay allows monitoring of overcurrent control. This modular control relay is ideal for monitoring of electrical values and current variation in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slim form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France
Width22.5 mm
Complementary Attributes
- Control Circuit Voltage Limits
- - 15 % + 10 % Un, - 15 % + 10 % Un
- Maximum Measuring Cycle
- 100 ms measurement cycle as true rms value
- Maximum Power Consumption In W
- 1.5 W DC
- Maximum Switching Voltage
- 250 V AC
Line Rated Current8 A
Maximum Power Consumption In Va3.5 VA
Maximum Switching Current8 A AC
Minimum Switching Current10 mA 5 V DC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electromagnetic Compatibility
- immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1immunity for industrial environments conforming to IEC 61000-6-2emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3emission standard for industrial environments conforming to IEC 61000-6-4, electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test - test level: 4 kV level 4 (direct) conforming to IEC 61000-4-4electrical fast transient/burst immunity test - test level: 2 kV level 4 (capacitive coupling) conforming to IEC 61000-4-4, surge immunity test - test level: 4 kV level 4 (common mode) conforming to IEC 61000-4-5, surge immunity test - test level: 2 kV level 4 (differential mode) conforming to IEC 61000-4-5, conducted and radiated emissions class B group 1 conforming to CISPR 11conducted and radiated emissions class B conforming to CISPR 22
- Measurement Error
- < 1 % over the whole range with voltage variation, < 1 % over the whole range with voltage variation< 1 % over the whole range with voltage variation, < 1 % over the whole range with voltage variation0.05 %/°C with temperature variation
- Repeat Accuracy
- +/- 0.5 % input and measurement circuit, +/- 0.5 % input and measurement circuit, +/- 0.2 % time delay, +/- 0.2 % time delay+/- 0.5 % input and measurement circuit, +/- 0.5 % input and measurement circuit, +/- 0.2 % time delay, +/- 0.2 % time delay
- Setting Accuracy Of The Switching Threshold
- +/- 10 % of the full scale, +/- 10 % of the full scale
- Time Delay Drift
- <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 1 % within the supply voltage range, <= 1 % within the supply voltage range, <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 1 % within the supply voltage range, <= 1 % within the supply voltage range
- Vibration Resistance
- 0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6, 1 gn 10-58.1 Hz) not in operation IEC 60068-2-6, 0.035 mm 58.1-150 Hz) in operation IEC 60068-2-6, 0.5 gn 58.1-150 Hz) in operation IEC 60068-2-6
- Connections - Terminals
- screw terminals, 2 x 0.5...2 x 2.5 mm² 20 AWG...14 AWG) solid without cable endscrew terminals, 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWG) flexible with cable endscrew terminals, 1 x 0.5...1 x 3.3 mm² 20 AWG...12 AWG) solid without cable endscrew terminals, 1 x 0.2...1 x 2.5 mm² 24 AWG...14 AWG) flexible with cable end, screw connectors
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.3231292184488894, 0.3 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 3 kg CO2 eq., 2.779826432024163
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Contacts Material
- cadmium free
- Control Type
- with test button
- Electrical Durability
- 100000 cycles
- Hysteresis
- 5-50 % adjustable threshold setting
- Insulation
- between supply and measurement
- Measurement Range
- 4 mA...1 A current AC/DC 50/60 Hz
- Mounting Support
- 35 mm DIN rail conforming to IEC 60715
- Product Or Component Type
- current control relay
- Relay Monitored Parameters
- overcurrent detection
- Relay Type
- current control relay
- Resistance Across Terminals
- 2.5 Ohm E1-M terminals0.5 Ohm E2-M terminals0.1 Ohm E3-M terminals
- Returnability
- Yes
- Shock Resistance
- 15 gn 11 ms) not in operation IEC 60068-2-275 gn 11 ms) in operation IEC 60068-2-27
- Supply Voltage Limits
- 20.4-264 V AC/DC
- Switching Capacity In Va
- 2000 VA
- Tightening Torque
- 0.6-1 N.m IEC 60947-1
- Total Lifecycle Carbon Footprint
- 44 kg CO2 eq.
- Measurement Range 4
- 4 mA...1 A current AC/DC 50/60 Hz
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To switch ON/OFF electrical contacts when the abnormal operating conditions is detected during 10 years and a 80% use rate.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; High voltage; 2020; Indonesia, ID
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Global, GLO
- Recyclability Potential In %
- 18
- [Uc] Control Circuit Voltage
- 24...240 V
- Run-up Delay At Power-up
- 0.3 s
- Package Weight(Lbs)
- 121.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Insulation Resistance> 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27> 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27
Overvoltage CategoryIII conforming to IEC 60664-1, III conforming to UL 508
Safety Reliability DataMTTFd = 296.8 years, B10d = 270000
Switching Threshold Drift<= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 1 % within the supply voltage range, <= 1 % within the supply voltage range, <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 1 % within the supply voltage range, <= 1 % within the supply voltage range
Utilisation CategoryAC-15 IEC 60947-5-1, DC-13 IEC 60947-5-1AC-1 IEC 60947-4-1, DC-1 IEC 60947-4-1
Certificate AgencyEAC, CSA, CE, RCM, CCC, UL, GL
Carbon Footprint Of The Distribution Phase [A4]0.09392744528575005, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0008695699160779772
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]41 kg CO2 eq., 40.75904111642341
Local Publishable Date2026-02-24
Stocking FlagY
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2506066EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Compatibility CodeRM22

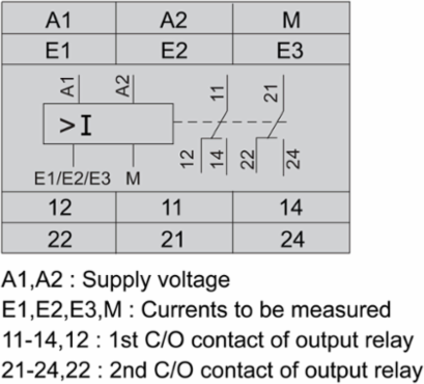

Contacts Type And Composition2 C/O
Dielectric Test Voltage2.5 kV AC 50 Hz, 1 min IEC 60255-27
Housing Materialpolycarbonate
Immunity To Microbreaks50 ms
Local SignallingLED (yellow) for relay ONLED (green) for power ON
Mechanical Durability10000000 cycles
Product AvailabilityNon-Stock - Not normally stocked in distribution facility

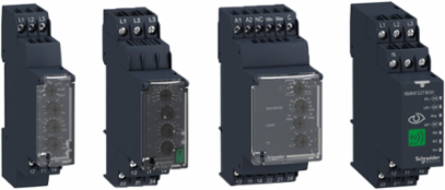

Range Of ProductHarmony Control Relays
Relay NameRM22JA
Reset Time1500 ms at maximum voltage
Response Time<= 500 ms<= 500 ms
Setting Accuracy Of Time Delay10 P
Software Versionv6.2.5-6
Sustainable PackagingYes
Threshold Setting10...100 %
Time Delay Typewithout
Contacts Composition2 C/O
Pep CodeENVPEP2506066EN
Pep Verification Date2025-06-30
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.

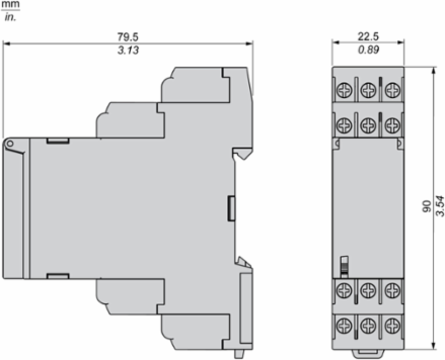

Width Nominal22.5 mm
[Us] Rated Supply Voltage24...240 V AC/DC 50/60 Hz, non self-powered
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536490050
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-50 °C 60 Hz, -20-50 °C 60 Hz, -20-60 °C 50 Hz, -20-60 °C 50 Hz-20-50 °C 60 Hz, -20-50 °C 60 Hz, -20-60 °C 50 Hz
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 43.956793782098295
- Environmental Disclosure
- ENVPEP2506066EN
- Ip Degree Of Protection
- IP20 IEC 60529 terminals)IP40 IEC 60529 housing)IP50 IEC 60529 front panel)
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 93-97 % 25-55 °C IEC 60068-2-30
- Pep Verification Date
- 2025-06-30
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2506066EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2506066EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- current control relay
Range Of ProductHarmony Control Relays
ETIM
- ETIM 8
- EC001440
ETIM 9EC001440
Output Attributes
- Nominal Output Current
- 8 A
Output Contacts2 C/O
Input Attributes
- Internal Input Resistance
- 0.1 Ohm, 2.5 Ohm, 0.5 Ohm
