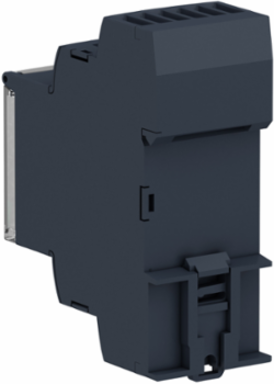

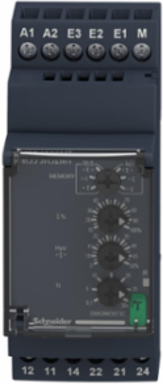

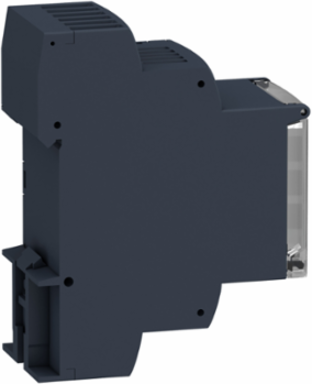

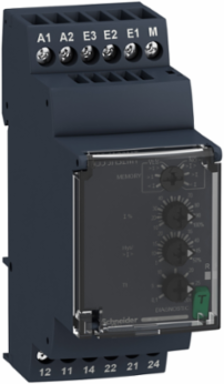

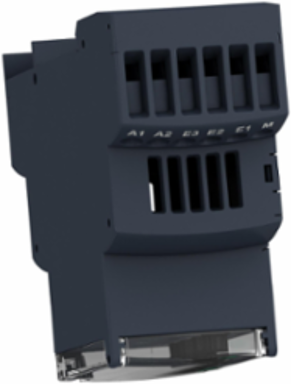

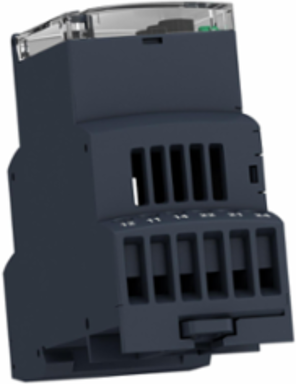

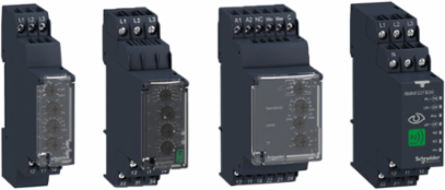

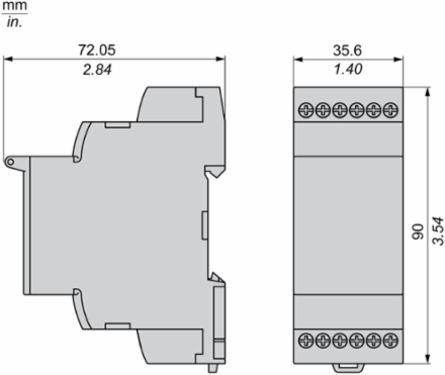

Schneider Electric RM35JA32MT Harmony Current Control Relay, 8A, 2 C/O, 35mm Width, 380-415V AC
- MPN: RM35JA32MT
- PPN: SCH-RM35JA32MT
CAD
$242.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony RM35-JA relay allows monitoring of current control in single phase networks. This modular multi function single phase current control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a diagnostic button, sealable cover, simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Width
- 35 mm
Country of OriginBrazil, France, Indonesia, Singapore
Complementary Attributes
- Control Circuit Voltage Limits
- - 15 % + 10 % Un, - 15 % + 10 % Un
- Maximum Measuring Cycle
- 100 ms measurement cycle as true rms value
- Maximum Switching Current
- 8 A AC
- Minimum Switching Current
- 10 mA 5 V DC
Line Rated Current8 A
Maximum Power Consumption In Va8 VA
Maximum Switching Voltage250 V AC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electromagnetic Compatibility
- immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1immunity for industrial environments conforming to IEC 61000-6-2emission standard for industrial environments conforming to IEC 61000-6-4, electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test - test level: 4 kV level 4 (direct) conforming to IEC 61000-4-4electrical fast transient/burst immunity test - test level: 2 kV level 4 (capacitive coupling) conforming to IEC 61000-4-4, surge immunity test - test level: 4 kV level 4 (common mode) conforming to IEC 61000-4-5, surge immunity test - test level: 2 kV level 4 (differential mode) conforming to IEC 61000-4-5, conducted and radiated emissions class B group 1 conforming to CISPR 11conducted and radiated emissions class B conforming to CISPR 22, emission standard for residential, commercial and light-industrial environments (except radiated emission) conforming to IEC 61000-6-3
- Insulation Resistance
- > 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27> 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27
- Overvoltage Category
- III conforming to IEC 60664-1, III conforming to UL 508
- Repeat Accuracy
- +/- 0.5 % input and measurement circuit, +/- 0.5 % input and measurement circuit, +/- 2 % time delay, +/- 2 % time delay+/- 0.5 % input and measurement circuit, +/- 0.5 % input and measurement circuit, +/- 2 % time delay, +/- 2 % time delay
- Safety Reliability Data
- MTTFd = 296.8 years, B10d = 270000
- Switching Threshold Drift
- <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 1 % within the supply voltage range, <= 1 % within the supply voltage range, <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 1 % within the supply voltage range, <= 1 % within the supply voltage range
- Utilisation Category
- AC-15 IEC 60947-5-1, DC-13 IEC 60947-5-1AC-1 IEC 60947-4-1, DC-1 IEC 60947-4-1
- Certificate Agency
- CCC, EAC, CSA, RCM, UL, GL, CE
- Carbon Footprint Of The Distribution Phase [A4]
- 0.01686886998254799, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.041856522687609074
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 40 kg CO2 eq., 40.209599999999995
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1601004EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1918
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Compatibility Code
- RM3
- Contacts Type And Composition
- 2 C/O
- Dielectric Test Voltage
- 2.5 kV AC 50 Hz, 1 min IEC 60255-27
- Environmental Characteristic
- 3K3 C
- Housing Material
- polycarbonate
- Insulation
- between supply and measurement
- Measurement Range
- 150 mA...15 A AC 50/60 Hz
- Mounting Support
- 35 mm DIN rail conforming to IEC 60715
- Product Or Component Type
- current control relay
- Relay Name
- RM35JA
- Reset Time
- 1500 ms at maximum voltage
- Returnability
- Yes
- Shock Resistance
- 15 gn 11 ms) not in operation IEC 60068-2-275 gn 11 ms) in operation IEC 60068-2-27
- Supply Voltage Limits
- 323-456.5 V AC
- Switching Capacity In Va
- 2000 VA
- Tightening Torque
- 0.6-1 N.m IEC 60947-1
- Total Lifecycle Carbon Footprint
- 49 kg CO2 eq.
- Measurement Range 4
- 150 mA...15 A AC 50/60 Hz
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- RM35 relay used to measure and monitor the abnormal operating& 10conditions such as on current, voltage, frequency, phase, speed, temperature and liquid level that the machine will not be allowed to run when a fault is occurred. It allows the user to initiate the necessary corrective actions before serious and costly breakdowns can occur.This product will be in 80% active mode with power consumption of 1W during 10 years of lifetime, adhering to IEC 60255-1 standard.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; ID
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27
- Recyclability Potential In %
- 8
- [Uc] Control Circuit Voltage
- 380...415 V
- Run-up Delay At Power-up
- 0.3 s
- Package Weight(Lbs)
- 129 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Hysteresis5-50 % adjustable threshold setting, 3-3 % fixed full scale for window mode
Measurement Error< 1 % over the whole range with voltage variation, < 1 % over the whole range with voltage variation< 1 % over the whole range with voltage variation, < 1 % over the whole range with voltage variation0.05 %/°C with temperature variation
Relay Monitored Parametersovercurrent or undercurrent detection, overcurrent or undercurrent in window mode
Response Time<= 500 ms (on crossing the threshold), <= 500 ms (on crossing the threshold)<= 500 ms (on crossing the threshold), <= 500 ms (on crossing the threshold)
Setting Accuracy Of The Switching Threshold+/- 10 % of the full scale, +/- 20 % of the full scale, +/- 10 % of the full scale, +/- 20 % of the full scale
Time Delay Drift<= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 1 % within the supply voltage range, <= 1 % within the supply voltage range, <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 1 % within the supply voltage range, <= 1 % within the supply voltage range
Vibration Resistance0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6, 1 gn 10-58.1 Hz) not in operation IEC 60068-2-6, 0.035 mm 58.1-150 Hz) in operation IEC 60068-2-6, 0.5 gn 58.1-150 Hz) in operation IEC 60068-2-6

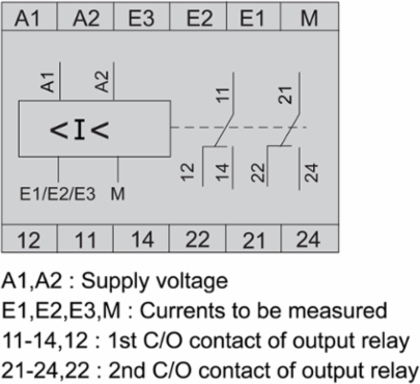

Connections - Terminalsscrew terminals, 2 x 0.5...2 x 2.5 mm² 20 AWG...14 AWG) solid without cable endscrew terminals, 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWG) flexible with cable endscrew terminals, 1 x 0.5...1 x 3.3 mm² 20 AWG...12 AWG) solid without cable endscrew terminals, 1 x 0.2...1 x 2.5 mm² 24 AWG...14 AWG) flexible with cable end, screw connectors
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.24217517452006979, 0.2 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]9 kg CO2 eq., 8.686487783595112
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Contacts Materialcadmium free
Control Typewith test button
Electrical Durability100000 cycles
Functionalityovercurrent or undercurrent detection
Immunity To Microbreaks50 ms
Local SignallingLED (yellow) for relay ONLED (green) for power ON
Mechanical Durability10000000 cycles
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductHarmony Control Relays
Relay Typecurrent control relay
Resistance Across Terminals0.005 Ohm E3-M terminals0.015 Ohm E2-M terminals0.05 Ohm E1-M terminals
Setting Accuracy Of Time Delay10 P
Software Versionv5.9.4
Sustainable PackagingYes
Threshold Setting10...100 %
Time Delay Typeadjustable 0.1...30 s, +/- 10 % of the full scale value Tt- time delay upon fault
Contacts Composition2 C/O
Pep CodeENVPEP1601004EN
Pep Verification Date2025-02-23
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
Width Nominal35 mm
[Us] Rated Supply Voltage380...415 V AC 50/60 Hz, non self-powered
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536410060
