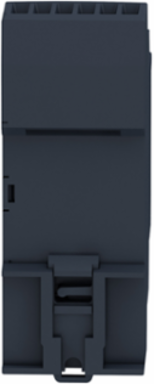

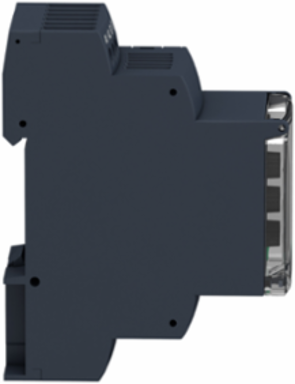

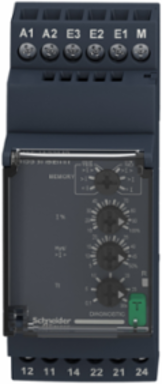

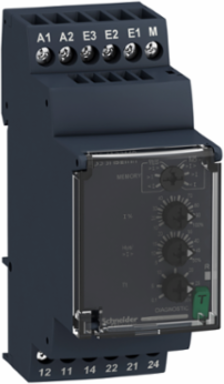

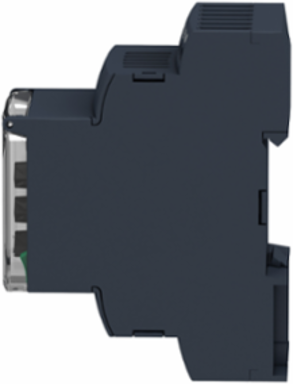

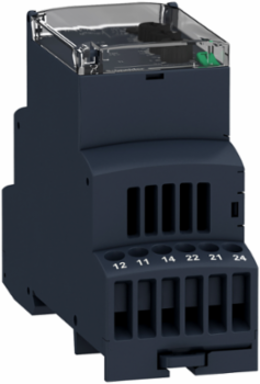

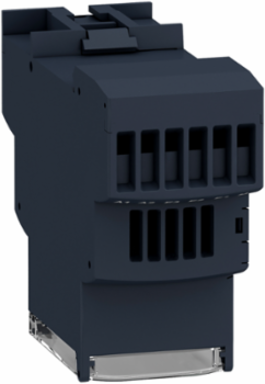

Schneider Electric RM35JA32MR Harmony Current Control Relay 5A, 2 C/O, 0.15-15A, 24-240V AC/DC

MPN: RM35JA32MR
PPN: SCH-RM35JA32MR

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$216.38

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony RM35-JA relay allows monitoring of current control in single phase networks. This modular multi function single phase current control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a diagnostic button, sealable cover, simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

Documentation & Downloads

Specifications

Key Specifications

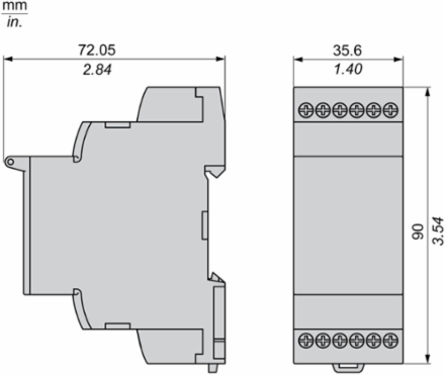

Width	35 mm

Country of Origin	Brazil, France, Indonesia, Sweden, Turkey, United States

Complementary Attributes

Control Circuit Voltage Limits	- 15 % + 10 % Un, - 15 % + 10 % Un
Maximum Measuring Cycle	100 ms measurement cycle as true rms value
Maximum Power Consumption In W	1.5 W DC
Maximum Switching Voltage	250 V AC

Line Rated Current	8 A
Maximum Power Consumption In Va	3.5 VA
Maximum Switching Current	8 A AC
Minimum Switching Current	10 mA 5 V DC

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Electromagnetic Compatibility	immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1immunity for industrial environments conforming to IEC 61000-6-2emission standard for industrial environments conforming to IEC 61000-6-4, electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test - test level: 4 kV level 4 (direct) conforming to IEC 61000-4-4electrical fast transient/burst immunity test - test level: 2 kV level 4 (capacitive coupling) conforming to IEC 61000-4-4, surge immunity test - test level: 4 kV level 4 (common mode) conforming to IEC 61000-4-5, surge immunity test - test level: 2 kV level 4 (differential mode) conforming to IEC 61000-4-5, conducted and radiated emissions class B group 1 conforming to CISPR 11conducted and radiated emissions class B conforming to CISPR 22, emission standard for residential, commercial and light-industrial environments (except radiated emission) conforming to IEC 61000-6-3
Insulation Resistance	> 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27> 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27
Overvoltage Category	III conforming to IEC 60664-1, III conforming to UL 508
Repeat Accuracy	+/- 0.5 % input and measurement circuit, +/- 0.5 % input and measurement circuit, +/- 2 % time delay, +/- 2 % time delay+/- 0.5 % input and measurement circuit, +/- 0.5 % input and measurement circuit, +/- 2 % time delay, +/- 2 % time delay
Safety Reliability Data	MTTFd = 296.8 years, B10d = 270000
Switching Threshold Drift	<= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 1 % within the supply voltage range, <= 1 % within the supply voltage range, <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 1 % within the supply voltage range, <= 1 % within the supply voltage range
Utilisation Category	AC-15 IEC 60947-5-1, DC-13 IEC 60947-5-1AC-1 IEC 60947-4-1, DC-1 IEC 60947-4-1
Certificate Agency	CE, GL, CCC, EAC, RCM, UL, CSA
Carbon Footprint Of The Distribution Phase [A4]	0.0154821818, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0 kg CO2 eq., 0.0005987018
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	41 kg CO2 eq., 41.20256
Local Publishable Date	2026-03-26
Stocking Flag	N
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1601004EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1918
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Compatibility Code	RM3

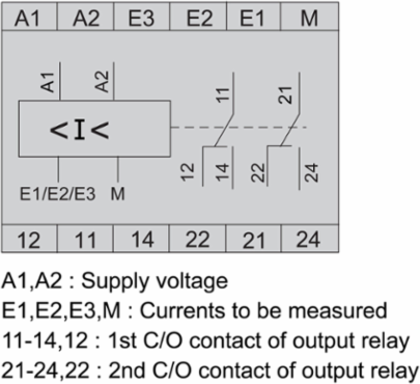

Contacts Type And Composition	2 C/O
Dielectric Test Voltage	2.5 kV AC 50 Hz, 1 min IEC 60255-27
Environmental Characteristic	3K3 C
Housing Material	polycarbonate
Insulation	between supply and measurement
Measurement Range	150 mA...15 A AC/DC
Mounting Support	35 mm DIN rail conforming to IEC 60715
Product Or Component Type	current control relay
Relay Name	RM35JA
Reset Time	1500 ms at maximum voltage
Returnability	Yes
Shock Resistance	15 gn 11 ms) not in operation IEC 60068-2-275 gn 11 ms) in operation IEC 60068-2-27
Supply Voltage Limits	20.4-264 V AC/DC
Switching Capacity In Va	2000 VA
Tightening Torque	0.6-1 N.m IEC 60947-1
Total Lifecycle Carbon Footprint	44 kg CO2 eq.
Measurement Range 4	150 mA...15 A AC/DC
Database Version	2016-11
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	To switch ON/OFF electrical contacts when the abnormal operating conditions is detected during 10 years and a 100% use rate.
Functional-unit Unit	unité (unit)
Energy Consumption On Product Lifetime In Kwh	84.096
Energy Model - Installation [A5]	Electricity mix; AC; <lt/> 1kV; EU-27
Energy Model - End Of Life [C1-c4]	Electricity mix; AC; <lt/> 1kV; EU-27
Width Nominal	35 mm
[Us] Rated Supply Voltage	24...240 V AC/DC 50/60 Hz, non self-powered
Nbr. Of Units In Pkg.	1
Take-back	No
Air Pollution (M3) Operational Energy Use [B6]	1773.376
Net Use Of Fresh Water (M3) Operational Energy Use [B6]	149.3952
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]	718.272
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]	104.64
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]	104.64
Customs Code	8536490075

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Hysteresis	5-50 % adjustable threshold setting, 3-3 % fixed full scale for window mode
Measurement Error	< 1 % over the whole range with voltage variation, < 1 % over the whole range with voltage variation< 1 % over the whole range with voltage variation, < 1 % over the whole range with voltage variation0.05 %/°C with temperature variation
Relay Monitored Parameters	overcurrent or undercurrent in window mode, overcurrent or undercurrent detection
Response Time	<= 500 ms (on crossing the threshold), <= 500 ms (on crossing the threshold)<= 500 ms (on crossing the threshold), <= 500 ms (on crossing the threshold)
Setting Accuracy Of The Switching Threshold	+/- 10 % of the full scale, +/- 10 % of the full scale
Time Delay Drift	<= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 1 % within the supply voltage range, <= 1 % within the supply voltage range, <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 0.05 % per degree centigrade depending permissible ambient air temperature, <= 1 % within the supply voltage range, <= 1 % within the supply voltage range
Vibration Resistance	0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6, 1 gn 10-58.1 Hz) not in operation IEC 60068-2-6, 0.035 mm 58.1-150 Hz) in operation IEC 60068-2-6, 0.5 gn 58.1-150 Hz) in operation IEC 60068-2-6
Connections - Terminals	screw terminals, 2 x 0.5...2 x 2.5 mm² 20 AWG...14 AWG) solid without cable endscrew terminals, 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWG) flexible with cable endscrew terminals, 1 x 0.5...1 x 3.3 mm² 20 AWG...12 AWG) solid without cable endscrew terminals, 1 x 0.2...1 x 2.5 mm² 24 AWG...14 AWG) flexible with cable end, screw connectors
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.0697287273, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	2 kg CO2 eq., 2.4665454545
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Contacts Material	cadmium free
Control Type	with test button
Electrical Durability	100000 cycles
Functionality	overcurrent or undercurrent detection
Immunity To Microbreaks	50 ms
Local Signalling	LED (yellow) for relay ONLED (green) for power ON
Mechanical Durability	10000000 cycles
Product Availability	Stock - Normally stocked in distribution facility

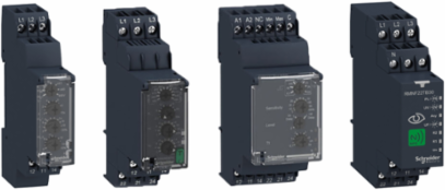

Range Of Product	Harmony Control Relays
Relay Type	current control relay
Resistance Across Terminals	0.005 Ohm E3-M terminals0.015 Ohm E2-M terminals0.05 Ohm E1-M terminals
Setting Accuracy Of Time Delay	10 P
Software Version	EIME v5.8.1
Sustainable Packaging	Yes
Threshold Setting	10...100 %
Time Delay Type	adjustable 0.1...30 s, +/- 10 % of the full scale value Tt- time delay upon fault
Contacts Composition	2 C/O
Pep Code	ENVPEP1601004EN
Pep Verification Date	2019-05-01
Psr Version	PSR-0005-ed2-EN-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Manufacturing [A1-a3]	Energy model used: Indonesia
Energy Model - Use [B6]	Electricity mix; AC; <lt/> 1kV; EU-27
Recyclability Potential In %	8
[Uc] Control Circuit Voltage	24...240 V
Run-up Delay At Power-up	0.3 s
Package Weight(Lbs)	140.000 g
Warranty (In Months)	18
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]	467.68
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]	153.6192
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]	822.912
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]	718.272
Water Pollution (M3) Operational Energy Use [B6]	1700.16

Environment Attributes Main

Ambient Air Temperature For Operation	-20-50 °C 60 Hz, -20-50 °C 60 Hz, -20-60 °C 50 Hz, -20-60 °C 50 Hz-20-50 °C 60 Hz, -20-50 °C 60 Hz, -20-60 °C 50 Hz
Take Back	No
China Rohs Regulation	X
Carbon Footprint	43.7549150655
Environmental Disclosure	ENVPEP1601004EN
Ip Degree Of Protection	IP20 IEC 60529 terminals)IP50 IEC 60529 front panel)IP30 IEC 60529 housing)
Packaging Without Single Use Plastic	Yes
Relative Humidity	93-97 % 25-55 °C IEC 60068-2-30
Pep Verification Date	2019-05-01
Psr Version	PSR-0005-ed2-EN-2016 03 29

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI1601004EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP1601004EN
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review
