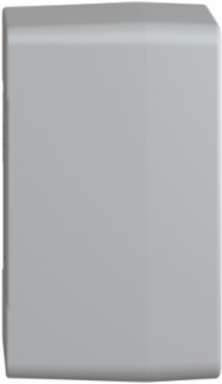

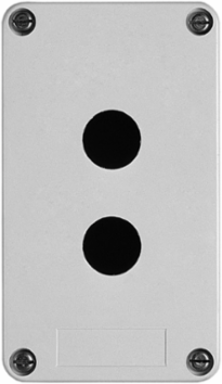

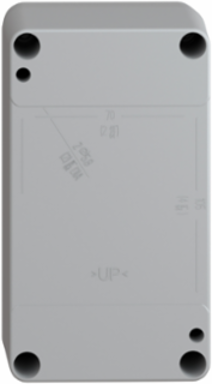

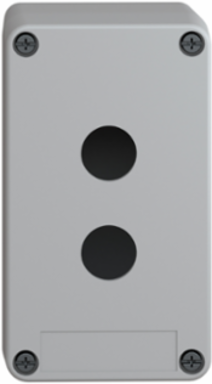

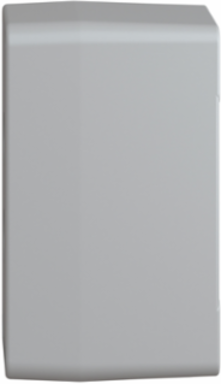

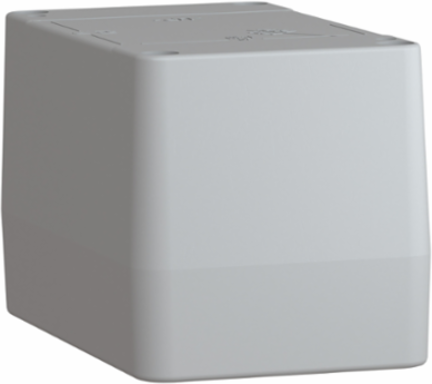

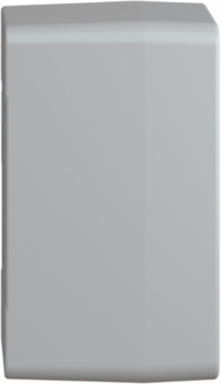

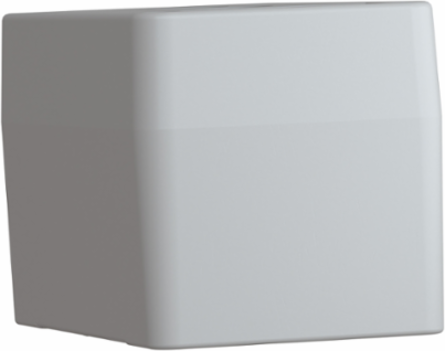

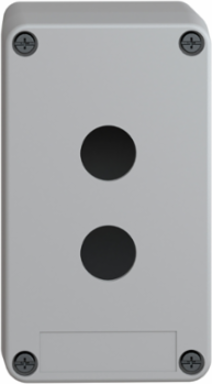

Schneider Electric XAPA1120 Empty Control Station, 2 Cut-Outs, IP65, Grey, 85 x 146 mm

MPN: XAPA1120
PPN: SCH-XAPA1120

$120.28

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony XAPA1120 is an empty control station plastic 2 horizontal openings. It is part of the range Harmony XAP, XB2 SL metal enclosures, for Harmony XB4.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, France, United States

Physical Attributes

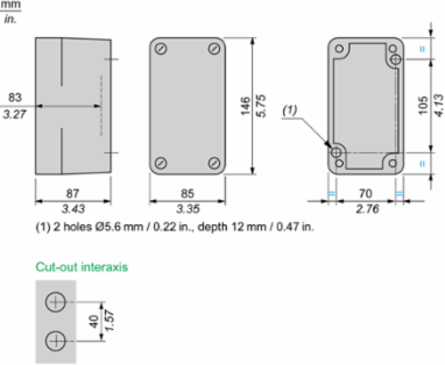

Product Front Plate Size	85 x 146 mm
Color Of Base Of Enclosure	grey

Usable Depth	83 mm
Color Of Cover	grey

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Overvoltage Category	class II conforming to IEC 60536, class II conforming to NF C 20-030
Resistance To Chemical Agents	high resistant to acids, high resistant to all solvents, high resistant to bases, high resistant to diesel, high resistant to mineral salts, high resistant to oils and greases, high resistant to petrol, high resistant to sea water
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.1 kg CO2 eq., 0.06365064016172507
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	2 kg CO2 eq., 2.358577156334232
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Compatibility Code	XAPA
Fire Resistance	850 °C NF C 20-455960 °C IEC 92
Material	glass reinforced polyester
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	empty control station without hinges
Returnability	Yes
Sustainable Packaging	Yes
Color Of Base Of Enclosure	grey
Pep Code	ENVPEP2309042EN
Pep Verification Date	2023-10-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Installation [A5]	No energy used
Energy Model - End Of Life [C1-c4]	Global, European and French datasets are used.
Number Of Cut-out	4 cut-outs
Package Weight(Lbs)	506.000 g
Warranty (In Months)	18

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Protective Treatment	TC, TH
Carbon Footprint Of The Distribution Phase [A4]	0.06616955862533692, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.3957259265498652, 0.4 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	kg CO2 eq., 0
Local Publishable Date	2026-01-12
Stocking Flag	N
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Cable Entry	undrilled
Device Short Name	XAPA
Flame Retardance	M3 conforming to CSTBVO conforming to UL 94
Number Of Vertical Rows	1
Product Destination	for Ø 22 mm control and signalling units
Range Of Product	Harmony XAP
Software Version	v6.2.5-6
Total Lifecycle Carbon Footprint	3 kg CO2 eq.
Color Of Cover	grey
Database Version	2024-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	Control station comprises a range of buttons, joysticks, and switches carefully assembled for starting and stopping the supply of electric power within a given circuit with life span of 20 years and it has dimensions of 85mm x 226mm x 87mm.
Functional-unit Unit	unit
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Low voltage; 2020; France, FR
Energy Model - Use [B6]	Electricity Mix; Production mix; Low voltage; FR
Recyclability Potential In %	98
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	3926909989

Environment Attributes Main

Ambient Air Temperature For Operation	-40-70 °C, -40-70 °C
Ip Degree Of Protection	IP65 IEC 60529IP69 NF C 20-010, IP69K
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Environmental Disclosure	ENVPEP2309042EN
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2309042EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	2.8841232816711595
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2023-10-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
