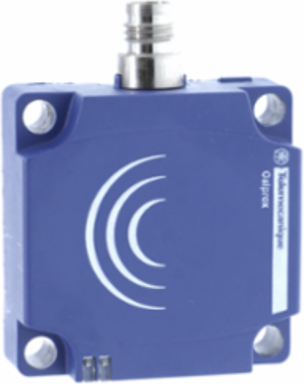

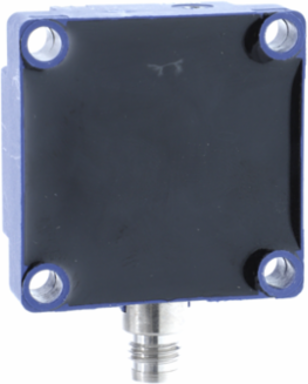

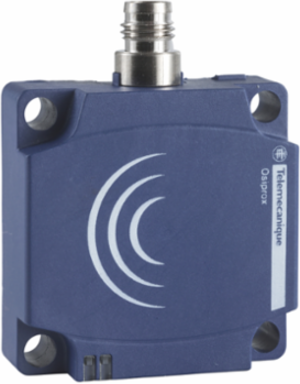

Telemecanique Sensors XS8C1A1PBM8 Inductive proximity sensors XS, inductive sensor XS8 40x40x15, PBT, Sn25mm, 12...24 VDC, M8
- MPN: XS8C1A1PBM8
- PPN: TES-XS8C1A1PBM8
- UNSPSC: 39122230
CAD
$332.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This XS flat (40 x 40 x 15 mm) inductive proximity sensor has a PBT case. It has a supply voltage of 12V to 24V DC. This general purpose flat inductive proximity sensor has an increased range. It is mountable directly on a surface, thanks to 4 screws fixing points. It provides mechanical resistance and chemical withstand thanks to PBT case. It has a yellow LED for output status indication for easier sensor setup and troubleshooting. IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+70°C). It has a standard M8 connector, compatible with all existing market sensor cabling. Its increased sensing range makes it ideal for process where precise circulation of objects is not possible. It is CCC, ECOLAB, CSA, UL certified.
Documentation & Downloads
Specifications
Key Specifications
- Electrical Connection
- male connector M8, 3 pins
- Discrete Output Type
- PNP
- Type Of Output Signal
- discrete
- Sensor Name
- XS8
- Size
- 15 mm
- Ip Degree Of Protection
- IP67 conforming to IEC 60529
- Body Type
- fixed
- Sensor Type
- inductive proximity sensor
- Switching Capacity In Ma
- <= 200 mA DC overload and short-circuit protection
- Enclosure Material
- PBT
[Us] Rated Supply Voltage12...24 V DC reverse polarity protection
Discrete Output Function1 NC
Range Of ProductTelemecanique Inductive proximity sensors XS
Materialplastic
Wiring Technique3-wire
Series Namegeneral purpose
[Sn] Nominal Sensing Distance15 mm flush mountable || 25 mm non flush mountable
Detector Flush Mounting Acceptancenon flush mountable
Sensor Designflat form 40 x 40 x 15
Output Circuit TypeDC
Complementary
- Current Consumption
- <= 10 mA no-load
- Maximum Delay Response
- 0.3 ms
- Marking
- CE
- Switching Frequency
- <= 1000 Hz
- Maximum Delay Recovery
- 0.8 ms
- Fine Adjustment Zone
- 8-15 mm flush mountable || 8-25 mm non flush mountable
- Detection Face
- frontal
- Front Material
- PBT
Height40 mm
Maximum Voltage Drop<2 V closed)
Maximum Residual Current1.5 mA open state
Differential Travel1...15% of Sr
Maximum Delay First Up10 ms
Supply Voltage Limits10-36 V DC
Width40 mm
Depth15 mm
Environment
- Product Certifications
- UL || Ecolab || CSA
- Vibration Resistance
- 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-85 °C
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance50 gn 11 ms IEC 60068-2-27
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP071001EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
