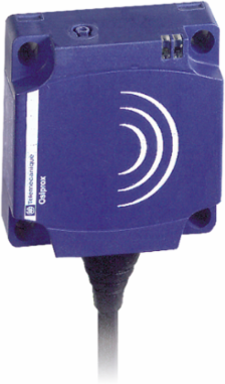

Telemecanique Sensors XS7C1A1PAL2 Inductive proximity sensors XS, inductive sensor XS7 40x40x15, PBT, Sn15mm, 12...24 VDC, cable 2 m
- MPN: XS7C1A1PAL2
- PPN: TES-XS7C1A1PAL2
- UNSPSC: 39122230
CAD
$203.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This XS flat (40 x 40 x 15 mm) inductive proximity sensor has a PBT case. It has a supply voltage of 12V to 24V DC. This general purpose flat inductive proximity sensor is mountable directly on a surface, thanks to its 4 screw fixing points. It provides mechanical resistance and chemical withstand thanks to PBT case. It has a yellow LED for output status indication for easier sensor setup and troubleshooting. IP68 protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+70°C). It features double insulation for better people and system protection from electrical shocks. It is C-Tick, ECOLAB, CSA, UL certified.
Documentation & Downloads
Specifications
Key Specifications
- Electrical Connection
- cable
- Discrete Output Type
- PNP
- Type Of Output Signal
- discrete
- Cable Length
- 2 m
- Material
- plastic
- Wiring Technique
- 3-wire
- Series Name
- general purpose
- Sensor Type
- inductive proximity sensor
- Switching Capacity In Ma
- <= 100 mA DC overload and short-circuit protection
- Enclosure Material
- PBT
[Us] Rated Supply Voltage12...24 V DC reverse polarity protection
Discrete Output Function1 NO
Range Of ProductTelemecanique Inductive proximity sensors XS
Sensor NameXS7
Size15 mm
Ip Degree Of ProtectionIP68 double insulation conforming to IEC 60529
Body Typefixed
Detector Flush Mounting Acceptanceflush mountable
Sensor Designflat form 40 x 40 x 15
Output Circuit TypeDC
Complementary
- Current Consumption
- <= 10 mA no-load
- Maximum Delay Response
- 2 ms
- Operating Zone
- 0-12 mm
- Marking
- CE
- Switching Frequency
- <= 1000 Hz
- Maximum Delay Recovery
- 5 ms
- Supply Voltage Limits
- 10-36 V DC
- Detection Face
- frontal
- Width
- 40 mm
- Depth
- 15 mm
Height40 mm
Status Ledoutput state 1 LED yellow)
Maximum Voltage Drop<2 V closed)
Net Weight0.095 kg
Differential Travel1...15% of Sr
Maximum Delay First Up10 ms
Wire Insulation MaterialPVC
Cable Composition3 x 0.34 mm²
Front MaterialPBT
Environment
- Product Certifications
- C-tick || Ecolab || UL || CSA
- Vibration Resistance
- 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-85 °C
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance50 gn 11 ms IEC 60068-2-27
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP071001EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
