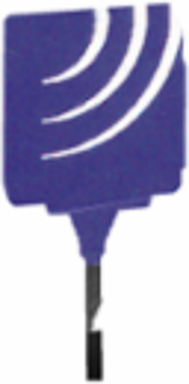

Telemecanique Sensors XS7C1A1PAL01M12 Inductive proximity sensors XS, inductive sensor XS7 40x40x15, PBT, Sn15mm, 12...24 VDC, M12 0.15 m
- MPN: XS7C1A1PAL01M12
- PPN: TES-XS7C1A1PAL01M12
- UNSPSC: 39122230
CAD
$221.73
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a flat format, 40mm x 40mm x 15mm, flush mountable sensor. It features a plastic case and a remote M12 connector. It has a sensing distance of 15mm. Three-wire, DC supply, 12V to 24V, NO function, PNP discrete output. This sensor is ECOLAB certified.
Documentation & Downloads
Specifications
Key Specifications
| Electrical Connection | remote male connector M12, 4 pins |
|---|---|
| Discrete Output Type | PNP |
| Type Of Output Signal | discrete |
| Cable Length | 0.15 m |
| Material | plastic |
| Wiring Technique | 3-wire |
| Series Name | general purpose |
| Sensor Type | inductive proximity sensor |
| Switching Capacity In Ma | <= 100 mA DC overload and short-circuit protection |
| Enclosure Material | PBT |
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
|---|---|
| Discrete Output Function | 1 NO |
| Range Of Product | Telemecanique Inductive proximity sensors XS |
| Sensor Name | XS7 |
| Size | 15 mm |
| Ip Degree Of Protection | IP67 double insulation conforming to IEC 60529 |
| Body Type | fixed |
| Detector Flush Mounting Acceptance | flush mountable |
| Sensor Design | flat form 40 x 40 x 15 |
| Output Circuit Type | DC |
Complementary
| Current Consumption | <= 10 mA no-load |
|---|---|
| Maximum Delay Response | 2 ms |
| Operating Zone | 0-12 mm |
| Marking | CE |
| Differential Travel | 1...15% of Sr |
| Maximum Delay First Up | 10 ms |
| Wire Insulation Material | PVC |
| Width | 40 mm |
| Depth | 15 mm |
| Height | 40 mm |
|---|---|
| Status Led | output state 1 LED yellow) |
| Maximum Voltage Drop | <2 V closed) |
| Switching Frequency | <= 1000 Hz |
| Maximum Delay Recovery | 5 ms |
| Supply Voltage Limits | 10-36 V DC |
| Detection Face | frontal |
| Front Material | PBT |
Environment
| Product Certifications | UL || C-tick || Ecolab || CSA |
|---|---|
| Vibration Resistance | 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -40-85 °C |
| Ambient Air Temperature For Operation | -25-70 °C |
|---|---|
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP071001EN |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
