Carlo Gavazzi

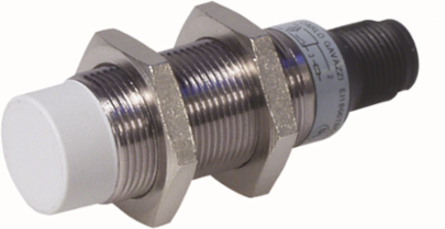

Carlo Gavazzi EI1808TBOSS-6 M18 2-wire AC Inductive proximity sensor, Stainless steel - Inductive proximity sensor, M18 Stainless steel, M12 connector, Sn 8mm, Short body, SCR NO, Supply voltage 20-250 Vac, Max output current 500 mA, Max switching frequency 25Hz, Operating temperature -25C - +70C, IP67

M18 2-wire AC Inductive proximity sensor, Stainless steel - Inductive proximity sensor, M18 Stainless steel, M12 connector, Sn 8mm, Short body, SCR NO, Supply voltage 20-250 Vac, Max output current 500 mA, Max switching frequency 25Hz, Operating temperature -25C - +70C, IP67
  • MPN: EI1808TBOSS-6
  • PPN: CLG-EI1808TBOSS-6

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$129.64/ EA

Description

M18 2-wire AC Inductive proximity sensor, Stainless steel - Inductive proximity sensor, M18 Stainless steel, M12 connector, Sn 8mm, Short body, SCR NO, Supply voltage 20-250 Vac, Max output current 500 mA, Max switching frequency 25Hz, Operating temperature -25C - +70C, IP67

Specifications

Specifications

Length
30
Installation Type
Flush
Output function
Normally Open (NO)
Connection Type
Connector M12
Type of actuation
Metallic Target
Output current, maximum at protected output
500
Rated control supply voltage Us at AC 50HZ
Min.20-Max.265
Voltage type
AC
Housing Material
Metal
Housing material
Stainless Steel AISI 304
Degree of protection (NEMA)
1, 3, 4, 6, 13
Product Main Family
Sensors
Diameter18
Switching distance8
Output typeOther
Number of protected semiconductor outputs1
Housing StyleCylindrical, threaded barrel
Supply voltageMin.20-Max.250
Rated control supply voltage Us at AC 60HZMin.20-Max.265
Switching frequency25
With approval according to ULNo
Degree of protection (IP)IP67
With plug-in socketNo
Product Main Family GroupInductive sensors
