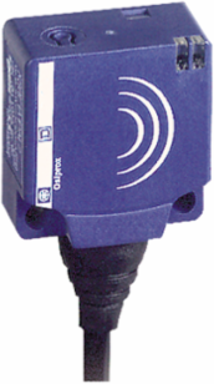

Telemecanique Sensors XS8E1A1NAL2 Inductive proximity sensors XS, inductive sensor XS8 26x26x13, PBT, Sn15mm, 12...24 VDC, cable 2 m
- MPN: XS8E1A1NAL2
- PPN: TES-XS8E1A1NAL2
CAD
$300.93
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This XS flat (26 x 26 x 13 mm) inductive proximity sensor has a PBT case. It has a supply voltage of 12V to 24V DC. This general purpose flat inductive proximity sensor has an increased range. It is mountable directly on a surface, thanks to 2 screws fixing points. It provides mechanical resistance and chemical withstand thanks to PBT case. It has a yellow LED for output status indication for easier sensor setup and troubleshooting. IP68 protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+70°C). It features double insulation for better people and system protection from electrical shocks. Its increased sensing range makes it ideal for process where precise circulation of objects is not possible. It is CCC, ECOLAB, CSA, UL certified.
Documentation & Downloads
Specifications
Key Specifications
- Electrical Connection
- cable
- Discrete Output Type
- NPN
- Type Of Output Signal
- discrete
- Cable Length
- 2 m
- Material
- plastic
- Wiring Technique
- 3-wire
- Series Name
- general purpose
- [Sn] Nominal Sensing Distance
- 10 mm flush mountable || 15 mm non flush mountable
- Detector Flush Mounting Acceptance
- non flush mountable
- Sensor Design
- flat form 26 x 26 x 13
- Output Circuit Type
- DC
[Us] Rated Supply Voltage12...24 V DC reverse polarity protection
Discrete Output Function1 NO
Range Of ProductTelemecanique Inductive proximity sensors XS
Sensor NameXS8
Size13 mm
Ip Degree Of ProtectionIP68 double insulation IEC 60529
Body Typefixed
Sensor Typeinductive proximity sensor
Switching Capacity In Ma<= 100 mA DC overload and short-circuit protection
Enclosure MaterialPBT
Complementary
- Current Consumption
- <= 10 mA no-load
- Maximum Delay Response
- 0.3 ms
- Marking
- CE
- Maximum Residual Current
- 1.5 mA open state
- Differential Travel
- 1...15% of Sr
- Maximum Delay First Up
- 10 ms
- Supply Voltage Limits
- 10-36 V DC
- Detection Face
- frontal
- Width
- 26 mm
- Depth
- 13 mm
Height26 mm
Maximum Voltage Drop<2 V closed)
Net Weight0.075 kg
Switching Frequency<= 2000 Hz
Maximum Delay Recovery0.8 ms
Fine Adjustment Zone5-10 mm flush mountable || 5-15 mm non flush mountable
Wire Insulation MaterialPVC
Cable Composition3 x 0.34 mm²
Front MaterialPBT
Environment
- Product Certifications
- UL || Ecolab || CSA
- Vibration Resistance
- 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-85 °C
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance50 gn 11 ms IEC 60068-2-27
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP071001EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
