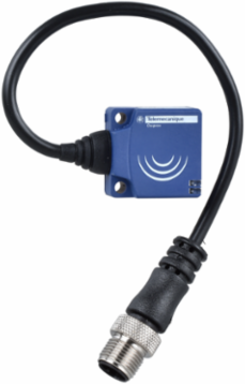

Telemecanique Sensors XS8E1A1PAL01M12 Inductive proximity sensors XS, inductive sensor XS8 26x26x13, PBT, Sn15mm, 12...24 VDC, M12 0.15 m
Telemecanique Sensors XS8E1A1PAL01M12 Inductive proximity sensors XS, inductive sensor XS8 26x26x13, PBT, Sn15mm, 12...24 VDC, M12 0.15 m
- MPN: XS8E1A1PAL01M12
- PPN: TES-XS8E1A1PAL01M12
- UNSPSC: 39122230
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$327.03/ EA
Description
This product is part of the XS range, an offer of inductive proximity sensors. This general purpose inductive proximity sensor in XS8 flat form 26mm x 26mm x 13mm design. It is non-flush mountable and has a frontal detection face. It supports 10mm flush mountable and 15mm non-flush mountable nominal sensing distance, 1 normally opened PNP discrete output. It is furnished with 4-pin M12 remote male connector for electrical connection. It is an inductive proximity sensor with a rated supply voltage of 12V to 24V DC with reverse polarity protection, a no-load current consumption of ≤10mA and a switching frequency of ≤2000Hz. It is an IP67 rated product. The enclosure is made of PBT. Its dimensions are 26mm (Width) x 13mm (Depth) x 26mm (Height) and weighs 0.04kg. It is suitable for railway, mobile equipment, lifts, escalators, hoisting, material handling/conveying/logistics, material working/machine tools, packaging, robotics, food and beverage industries. This product is certified by Ecolab, CSA, CE and UL. It compliant with international standards, certifications in standard and increased range. Ex Osiprox, OsiSense XS and XT inductive and capacitive proximity sensors for non-contact sensing. Inductive proximity sensors technology for non-contact sensing of metal objects up to 60mm.
Specifications
Environment
- Product Certifications
- UL || CSA || Ecolab
- Vibration Resistance
- 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-85 °C
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance50 gn 11 ms IEC 60068-2-27
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP071001EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Complementary
- Current Consumption
- <= 10 mA no-load
- Maximum Delay Response
- 0.3 ms
- Marking
- CE
- Maximum Residual Current
- 1.5 mA open state
- Differential Travel
- 1...15% of Sr
- Maximum Delay First Up
- 10 ms
- Supply Voltage Limits
- 10-36 V DC
- Detection Face
- frontal
- Front Material
- PBT
Height26 mm
Maximum Voltage Drop<2 V closed)
Net Weight0.04 kg
Switching Frequency<= 2000 Hz
Maximum Delay Recovery0.8 ms
Fine Adjustment Zone5-10 mm flush mountable || 5-15 mm non flush mountable
Wire Insulation MaterialPVC
Width26 mm
Depth13 mm
Specifications
- Electrical Connection
- remote male connector M12, 4 pins
- Discrete Output Type
- PNP
- Type Of Output Signal
- discrete
- Cable Length
- 0.15 m
- Material
- plastic
- Wiring Technique
- 3-wire
- Series Name
- general purpose
- [Sn] Nominal Sensing Distance
- 10 mm flush mountable || 15 mm non flush mountable
- Detector Flush Mounting Acceptance
- non flush mountable
- Sensor Design
- flat form 26 x 26 x 13
- Output Circuit Type
- DC
[Us] Rated Supply Voltage12...24 V DC reverse polarity protection
Discrete Output Function1 NO
Range Of ProductTelemecanique Inductive proximity sensors XS
Sensor NameXS8
Size13 mm
Ip Degree Of ProtectionIP67 double insulation conforming to IEC 60529
Body Typefixed
Sensor Typeinductive proximity sensor
Switching Capacity In Ma<= 100 mA DC overload and short-circuit protection
Enclosure MaterialPBT
