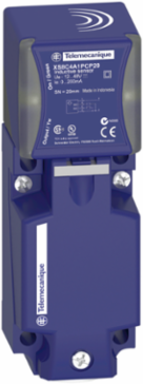

Telemecanique Sensors XS7C4A1DPG13 Inductive proximity sensors XS, inductive sensor XS7 40x40x117, PBT, Sn15 mm, 12...48 VDC, terminals
Telemecanique Sensors XS7C4A1DPG13 Inductive proximity sensors XS, inductive sensor XS7 40x40x117, PBT, Sn15 mm, 12...48 VDC, terminals
- MPN: XS7C4A1DPG13
- PPN: TES-XS7C4A1DPG13
- UNSPSC: 39122230
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$320.08/ EA
Description
The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a 40mm x 40mm x 117mm format sensor, flush mountable in metal. It features a plastic case with a plug-in 5 position turret head and a PG 13.5 cable entry. It has a sensing distance of 15mm. Two-wire, DC supply, 12V to 48V with protection against reverse polarity, NO or NC function programmable.
Specifications
Environment
- Product Certifications
- CCC || CSA || UL
- Vibration Resistance
- 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-85 °C
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance50 gn 11 msEN 60068-2-27
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121217EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Complementary
- Height
- 40 mm
- Status Led
- output state 1 LED yellow)
- Operating Zone
- 0-12 mm
- Marking
- CE
- Net Weight
- 0.244 kg
- Switching Frequency
- <= 300 Hz
- Maximum Delay Recovery
- 1.8 ms
- Supply Voltage Limits
- 10-58 V DC
- Detection Face
- 5 positions turret head
- Front Material
- PBT
Maximum Delay Response1.2 ms
Repeat Accuracy<= 3% of Sr
Maximum Voltage Drop<4.2 V closed)
Length40 mm
Maximum Residual Current0.6 mA open state
Differential Travel3...15% of Sr
Maximum Delay First Up7.5 ms
Cable Entry Number1 tapped entry Pg 13.5 cable gland
Width117 mm
Specifications
- Electrical Connection
- screw-clamp terminals, 4 x 1.5 mm²
- Discrete Output Function
- 1 NO or 1 NC programmable
- Range Of Product
- Telemecanique Inductive proximity sensors XS
- Material
- plastic
- Wiring Technique
- 2-wire
- Series Name
- general purpose
- [Sn] Nominal Sensing Distance
- 15 mm
- Detector Flush Mounting Acceptance
- flush mountable
- Sensor Design
- form 40 x 40 x 117
- Output Circuit Type
- DC
[Us] Rated Supply Voltage12...48 V DC reverse polarity protection
Type Of Output Signaldiscrete
Sensor NameXS7
Size117 mm
Ip Degree Of ProtectionIP67 conforming to IEC 60529 || IP65 conforming to IEC 60529 || IP69K conforming to DIN 40050
Body Typefixed
Sensor Typeinductive proximity sensor
Switching Capacity In Ma1.5...100 mA overload and short-circuit protection
Enclosure MaterialPBT
