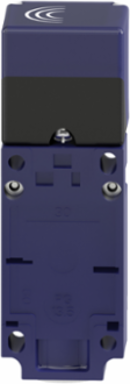

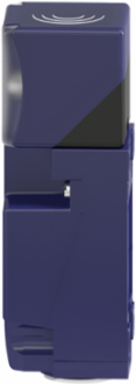

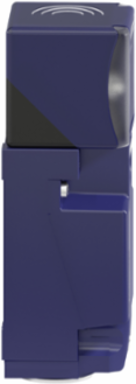

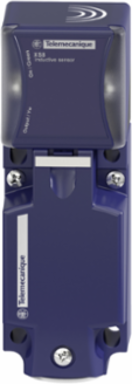

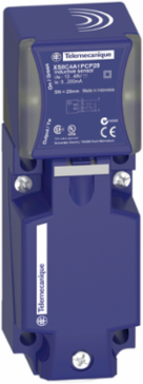

Telemecanique Sensors XS8C4A1DPP20 Inductive proximity sensors XS, inductive sensor XS8 40x40x117, PBT, Sn20 mm, 12...48 VDC, terminals
- MPN: XS8C4A1DPP20
- PPN: TES-XS8C4A1DPP20
- UNSPSC: 39122230
CAD
$362.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This XS turret head (40 x 40 x 117 mm) with an inductive proximity sensor has a PBT case. It has a supply voltage of 12V to 48V DC. This general purpose flat inductive proximity sensor has an increased range. It is mountable directly on a surface, thanks to 4 screws fixing points. It provides mechanical resistance and chemical withstand thanks to PBT case. It has a yellow LED for output status indication for easier sensor setup and troubleshooting. It can operate in very cold (-25°C) and hot environments (+70°C). Its increased sensing range makes it ideal for process where precise circulation of objects is not possible. It is CCC, ECOLAB, CSA, UL certified.
Documentation & Downloads
Specifications
Key Specifications
- Electrical Connection
- screw-clamp terminals, 4 x 1.5 mm²
- Discrete Output Function
- 1 NO or 1 NC programmable
- Range Of Product
- Telemecanique Inductive proximity sensors XS
- Material
- plastic
- Wiring Technique
- 2-wire
- Series Name
- general purpose
- [Sn] Nominal Sensing Distance
- 20 mm
- Detector Flush Mounting Acceptance
- flush mountable
- Sensor Design
- form 40 x 40 x 117
- Output Circuit Type
- DC
[Us] Rated Supply Voltage12...48 V DC reverse polarity protection
Type Of Output Signaldiscrete
Sensor NameXS8
Size117 mm
Ip Degree Of ProtectionIP67 conforming to IEC 60529 || IP65 conforming to IEC 60529 || IP69K conforming to DIN 40050
Body Typefixed
Sensor Typeinductive proximity sensor
Switching Capacity In Ma1.5...100 mA overload and short-circuit protection
Enclosure MaterialPBT
Complementary
- Height
- 40 mm
- Status Led
- output state 1 LED yellow)
- Operating Zone
- 0-16 mm
- Marking
- CE
- Net Weight
- 0.244 kg
- Switching Frequency
- <= 300 Hz
- Maximum Delay Recovery
- 1.8 ms
- Supply Voltage Limits
- 10-58 V DC
- Detection Face
- 5 positions turret head
- Front Material
- PBT
Maximum Delay Response1.2 ms
Repeat Accuracy<= 3% of Sr
Maximum Voltage Drop<4.2 V closed)
Length40 mm
Maximum Residual Current0.6 mA open state
Differential Travel3...15% of Sr
Maximum Delay First Up7.5 ms
Cable Entry Number1 tapped entry M20 x 1.5 cable gland
Width117 mm
Environment
- Product Certifications
- CCC || UL || CSA
- Vibration Resistance
- 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-85 °C
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance50 gn 11 msEN 60068-2-27
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121217EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
