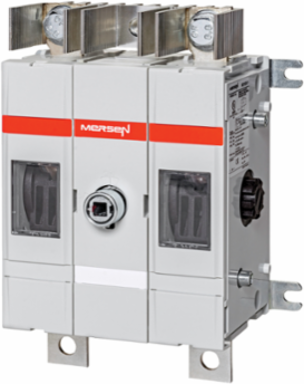

Mersen MD250U22 DC Switch 1000V 250A 4 Pole 2-2 Pole Configuration
- MPN: MD250U22
- PPN: FER-MD250U22
CAD
$957.53
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Mersen offers a range of DC disconnect switches specially designed for PV applications, in one- and two-circuit configurations for both 1000V and 1500V DC applications. The technology inside the switch and the visible contacts allow a quick, safe, and reliable DC breaking at all current levels up to 1500VDC. The product is ready and simple to install independent of the polarity, with limited power losses, and a smaller footprint than competition.
Features
- IEC version and UL version
- Visible contacts
- Compact footprint
- Direct installation for floating polarity configuration
- Jumper bar available for grounded configuration
Documentation & Downloads
Specifications
Key Specifications
- Max Operating Temp
- 40 °C
- Min Operating Temp
- -5 °C
- Short Circuit Current Rating Sccr
- 5 to 10 kA for higher ratings
- Rated Insulation Voltage
- 1500 V
- Rated Voltage Dc Ul
- 1000 V
- Product Line
- UL PV Rated Switch
- Installation Mounting
- Direct Screw Mount
- Wire Connections
- Terminal
Max Storage Temp55 °C
Min Storage Temp-25 °C
Rated Impulse Withstand Voltage12 kV
Ampere Rating250 A
Country Of OriginFI
Connection Terminal TypeBlade
Number Of Poles4-Pole
Test Feature0
