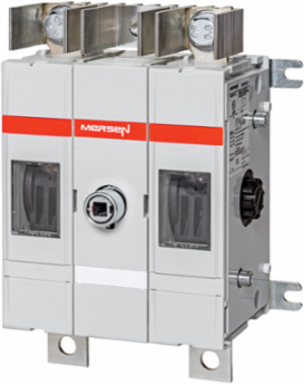

Mersen MD400U11 DC Switch 1000V 400A 2 Pole 1-1 Pole Configuration
- MPN: MD400U11
- PPN: FER-MD400U11
CAD
$617.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Mersen offers a range of DC disconnect switches specially designed for PV applications, in one- and two-circuit configurations for both 1000V and 1500V DC applications. The technology inside the switch and the visible contacts allow a quick, safe, and reliable DC breaking at all current levels up to 1500VDC. The product is ready and simple to install independent of the polarity, with limited power losses, and a smaller footprint than competition.
Features
- IEC version and UL version
- Visible contacts
- Compact footprint
- Direct installation for floating polarity configuration
- Jumper bar available for grounded configuration
Documentation & Downloads
Specifications
Key Specifications
| Max Operating Temp | 40 °C |
|---|---|
| Min Operating Temp | -5 °C |
| Short Circuit Current Rating Sccr | 5 to 10 kA for higher ratings |
| Rated Insulation Voltage | 1500 V |
| Rated Voltage Dc Ul | 1000 V |
| Product Line | UL PV Rated Switch |
| Installation Mounting | Direct Screw Mount |
| Wire Connections | Terminal |
| Max Storage Temp | 55 °C |
|---|---|
| Min Storage Temp | -25 °C |
| Rated Impulse Withstand Voltage | 12 kV |
| Ampere Rating | 400 A |
| Country Of Origin | FI |
| Connection Terminal Type | Blade |
| Number Of Poles | 2-Pole |
| Test Feature | 0 |
