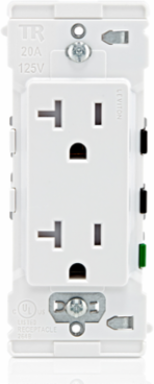

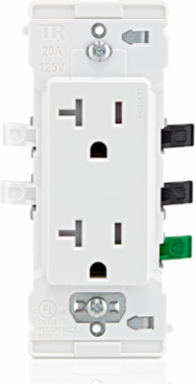

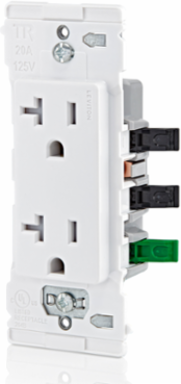

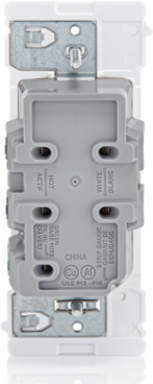

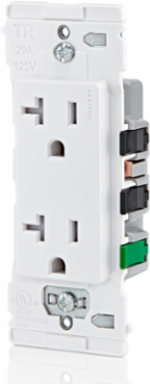

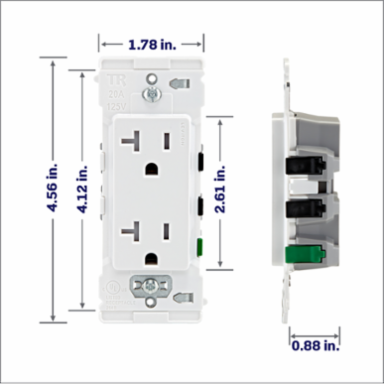

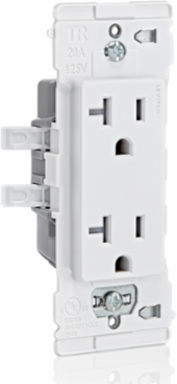

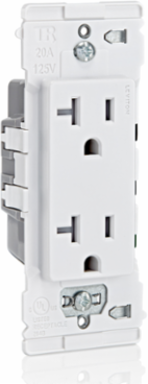

Leviton E5825-W Lever Edge 20 Amp Tamper-Resistant Duplex Outlet
- MPN: E5825-W
- UPC: 078477018217
- PPN: LEV-E5825-W
CAD
$8.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
20 Amp, 125 Volt, NEMA: 5-20R, 2 Pole, 3-Wire, Straight Blade, Decora Duplex Tamper-Resistant Outlet, Self-grounding, UL/CSA, NEC compliant – White
Features

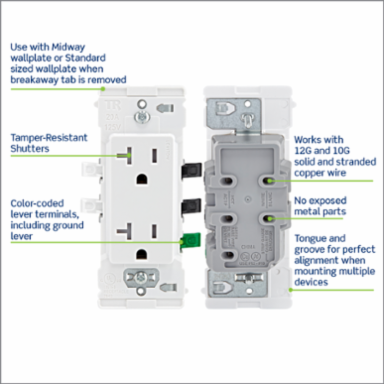

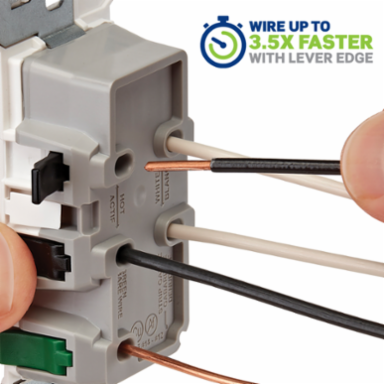

- Unique lever terminals for fast, efficient wiring
- Lever connectors work with 12 gauge and 10 gauge stranded and solid copper wire
- Provides the traditional appearance and superior performance of Decora® devices in a new, faster, easier-to-install, and safer design
- Color-coded lever terminals reduces risk of miswiring
- Lever doors have snap feature to assure connection has been made; audible click confirms lever door is closed
- Only Residential device on the market with a quick termination ground wire

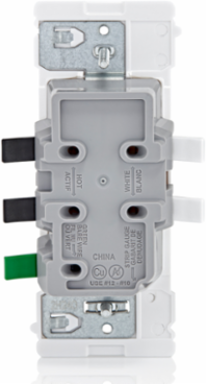

- No exposed metal parts for enhanced safety; eliminates need for electrical tape
- Strap’s unique tongue and groove alignment offers quicker trim out on multi-gang installations
- Wire openings prevent wire insulation from being inserted into the terminals
- One standard strip gauge for all devices
- Devices coordinate seamlessly with other Decora devices
- Longer and wider strap is compatible with Midway wallplates, and with Standard sized wallplates when breakaway tab is removed
- Can be used with Decora wallplates and Decora Plus™ screwless wallplates
- Outlet allows for split circuit applications
- Outlet is Tamper-Resistant to help prevent access by most non-rated/foreign objects

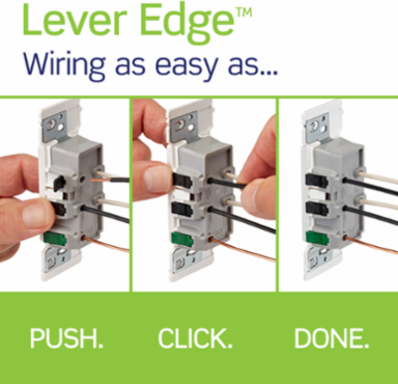

- FASTER – Unique lever terminals for fast, efficient wiring. As Easy as PUSH. CLICK. DONE
- EASIER – Large strap makes installations easier as well as the ability to use 12 gauge and 10 gauge stranded and solid copper wire
- SAFER – No exposed metal parts for enhanced safety
- CONVENIENT – Color-coded lever terminals to help prevent miswiring
- COMPATIBLE – Coordinates seamlessly with other Decora devices and can be used with any sized Decora wallplate
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
RoHS CompliantFalse
Standards and Certifications
- CSA
- C22.2 No. 42: File 152105; Class 6233-01
- NEMA Rating
- 5-20R
- UL 498
- File E13399
NEMAWD6 (Face only)
NOMNOM Certified
Mechanical Specifications
- Terminal Accom.
- Side Lever Wire #12-#10 AWG; Stranded and Solid Copper wire only
- Termination
- Color-Coded Levers
Terminal IDColor Coded Lever Terminals, including Ground
Product Features
- Color
- White
- Tamper Resistant
- Yes
Device TypeDecora Duplex Receptacle
TypeDuplex Receptacle
Warranty
- Warranty
- 2-Year Limited
Electrical Specifications
- Amperage
- 20 A
- Pole
- 2
GroundingSelf-grounding
Wire3
