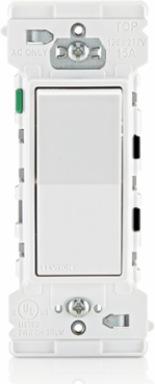

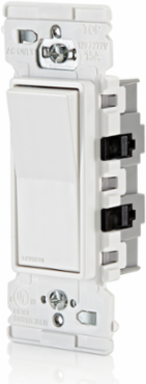

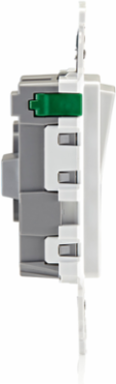

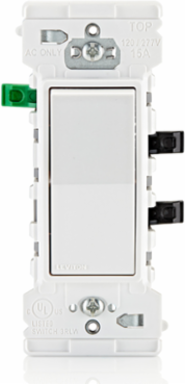

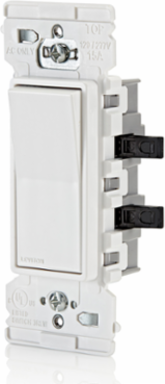

Leviton E5601-W Lever Edge 15 Amp Rocker Switch, White, Thermoplastic, 120/277VAC
- MPN: E5601-W
- UPC: 078477332498
- PPN: LEV-E5601-W
CAD
$4.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
15 Amp, 120/277 Volt, Lever Edge Single-Pole AC Quiet Switch, Residential Grade, Self-grounding - White
Features

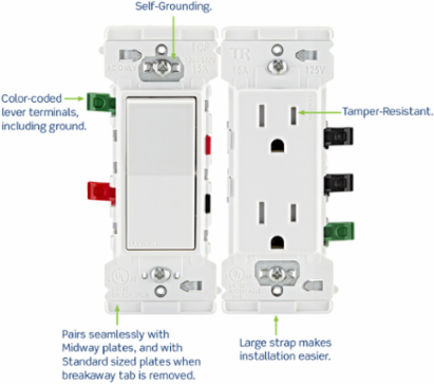

- Provides the traditional appearance and superior performance of Decora® devices in a new, faster, easier-to-install, and safer design
- Unique lever terminals for fast, efficient wiring
- Color-coded lever terminals reduces risk of miswiring
- Lever doors have snap feature to assure connection has been made; audible click confirms lever door is closed
- Only Residential device on the market with a quick termination ground wire
- No exposed metal parts for enhanced safety; eliminates need for electrical tape
- Strap’s unique tongue and groove alignment offers quicker trim out on multi-gang installations
- Lever connectors work with 14 gauge and 12 gauge stranded and solid copper wire
- Wire openings prevent wire insulation from being inserted into the terminals
- One standard strip gauge for all devices
- Devices coordinate seamlessly with other Decora devices
- Longer and wider strap is compatible with Midway wallplates, and with Standard sized wallplates when breakaway tab is removed
- Can be used with Decora wallplates and Decora Plus™ screwless wallplates
- Test openings for circuit testers
- Single-Pole Switch controls light(s) from one location

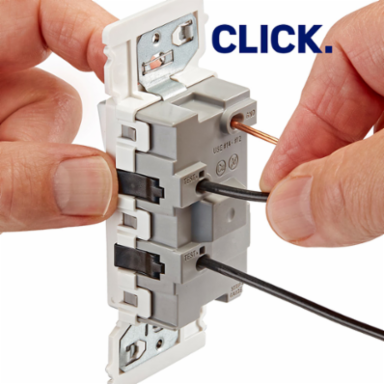

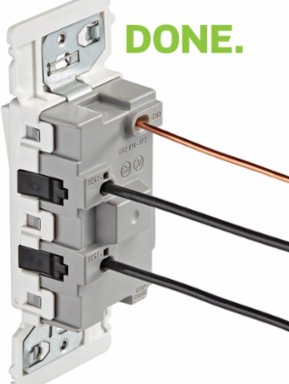

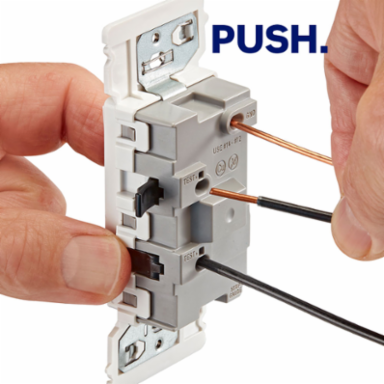

- FASTER – Unique lever terminals for fast, efficient wiring. As Easy as PUSH. CLICK. DONE.
- EASIER – Large strap makes installations easier as well as the ability to use 14 gauge and 12 gauge stranded and solid copper wire
- SAFER – No exposed metal parts for enhanced safety
- CONVENIENT – Color-coded lever terminals to help prevent miswiring
- COMPATIBLE – Coordinates seamlessly with other Decora devices and can be used with any sized Decora wallplate
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
RoHS CompliantFalse
Standards and Certifications
- CSA
- CSA 22.2 No 111
- NOM
- NOM
NEMAWD6 (Face only)
UL StandardUL 20: File E7458
Material Specifications
- Terminal Accom.
- Side Lever Wire #14-#12 AWG; Stranded and Solid copper wire only
- Termination
- Color-Coded Levers
Terminal IDColor Coded Lever Terminals, including Ground
TypeRocker Switch
Mechanical Specifications
- Actuator Material
- Thermoplastic
- Strap Material
- Plastic and Steel
Body MaterialThermoplastic
Product Features
- Color
- White
- Grade
- Residential
Device TypeRocker Switch
Warranty
- Warranty
- 2-Year Limited
Electrical Specifications
- Amperage
- 15 A
- HP Rating
- 1/2HP-120V 2HP-240V-277V
- Voltage
- 120/277 VAC
GroundingSelf-Grounding
Max. Amperage12 Amp
