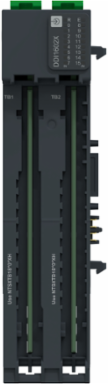

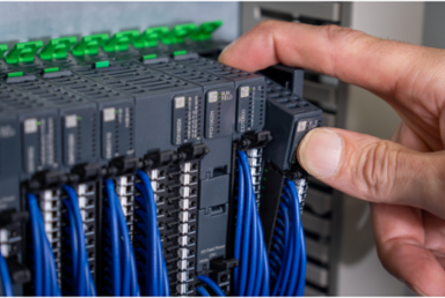

Schneider Electric NTSDDI1602XK Discrete Input Module + Base, 16 In, 24V DC, Sink, 1/2/3 Wires, Modicon Edge I/O NTS
- MPN: NTSDDI1602XK
- PPN: SCH-NTSDDI1602XK
CAD
$298.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

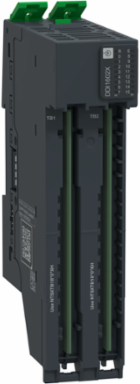

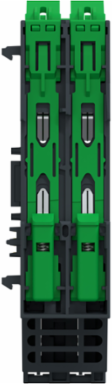

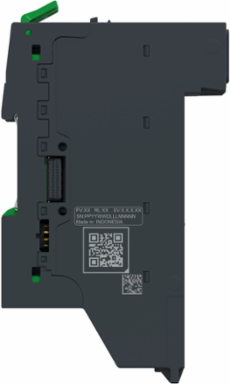

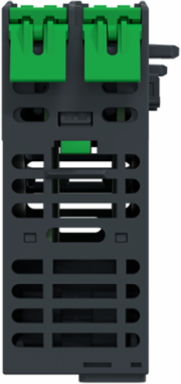

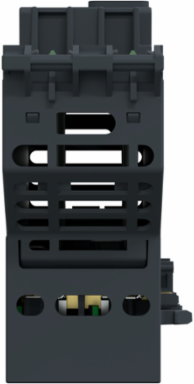

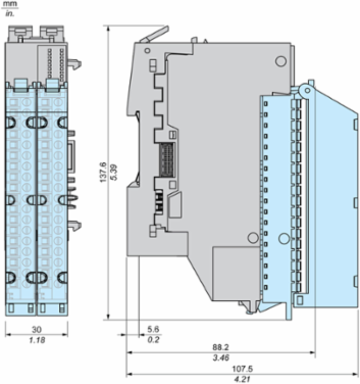

This discrete input kit is part of the Modicon Edge I/O NTS range. This kit is a preassembly of a base and a discrete input module. It features 16 discrete inputs operating at 24VDC, with a sink logic, with a 1-2-3-wire connection. It is used in automation and control systems to monitor the status of various discrete (on/off) signals. It functions within a temperature range of minus 40 to 70 degrees Celsius. Its IP degree of protection is IP20. It measures 137.6mm high, 30mm wide, 88mm deep, and weighs 0.130kg. It is compatible with Modicon M262 and Modicon M580 Automation controller ranges and mounting accessories. The package contains the module already assembled at its base. The kit installs on a DIN rail, with a Mechanical locking clip. Modicon Edge I/O NTS is a future-ready I/O system for data aggregation. Modicon Edge I/O NTS is a robust distributed IP20 I/O system with wide choice of modules.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, Philippines, United States
Depth80 mm
Physical Attributes
- Housing Color
- grey
Complementary Attributes
- Rated Operational Voltage Limits
- 20.4...28.8 V DC
Important Information Attributes
- Kit Composition
- NTSDDI1602X module, NTSXBA0100H base
- Mounting Support
- top hat type TH35-7.5 rail IEC 60715, top hat type TH35-15 rail IEC 60715
- Voltage State 0 Guaranteed
- < 5 V DC, < 5 V DC< 5 V DC, < 5 V DC
- Carbon Footprint Of The Distribution Phase [A4]
- 0.20353873425914837, 0.2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.000315351393256013
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 22 kg CO2 eq., 22.232195016127704
- Local Publishable Date
- 2026-01-12
- Pre Comm Date
- 2024-12-19
- Stocking Flag
- N
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2410004EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2439
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Current State 0 Guaranteed
- <= 1.5 mA<= 1.5 mA
- Device Application
- Industrial Application
- Hot Swapping Fallback
- yes
- Isolation Between Channels And Ground
- 1500 V AC
- Mandatory Accessory
- 2x NTSXTB18_0_XH terminal block
- Operating Mode
- Synchronous/Isochronous
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Modicon Edge I/O NTS
- Shock Resistance
- 15 g 11 ms with and without accessory)
- Sustainable Packaging
- Yes
- Typical Current Consumption
- 40.8 mA 24 V DC on the Bus current14.4 mA 24 V DC on the internal field current minimum517.3 mA 24 V DC on the internal field current maximum
- Voltage State 1 Guaranteed
- 11...30 V DC
- Housing Color
- grey
- Discrete Input Voltage 5
- 24 V DC
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To receive and process digital input signals from sensors in Modicon Edge I/O System during 10 years with a 100% use rate. Typical power consumption is 0,79W (33mA at 24 VDC).To receive and process digital input signals from sensors in Modicon Edge I/O System during 10 years with a 100% use rate. Typical power consumption is 0,79W (33mA at 24 VDC).
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Indonesia, ID
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Height Nominal
- 121 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8538908180
MarkingCE, UKCA, cULus, RCM
Power Supply Typebus power from power supply bus (24 Vdc), field power from power supply field (24 Vdc), optional field power from common distribution module (24 Vdc), optional field power from external power supply (24 Vdc, shared 0 V with module)
Certificate AgencyCE, UKCA, cULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending)
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.3936078671018711, 0.4 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]10 kg CO2 eq., 10.077901523801144
Local Data StatusPublishable
Pre Comm Announcement Date2024-12-19
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Product Kit IdentifierN
Current State 1 Guaranteed>= 2 mA>= 2 mA
Environmental Characteristicstandard environment
Isolation Between Channels And Bus1500 V AC
Local Signalling1 LED (green) for module operating (RUN)1 LED per channel (green) for channel diagnostic1 LED (red) for module error (ERR)
Network TypeDC
Power Dissipation In W2.3 W maximum at 24 V DC
Product Or Component Typediscrete input module kit
ReturnabilityYes
Software Versionv6.1
Total Lifecycle Carbon Footprint33 kg CO2 eq.
Vibration Resistance1 g without accessory2 g with accessory
Dc Supply Voltage20.4-28.8 V
Digital Inputs Configurablefalse
Pep CodeENVPEP2410004EN
Pep Verification Date2024-10-08
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Europe, EU-27
Width Nominal30 mm
Package Weight(Lbs)163.293 g
Warranty (In Months)18
Environment Attributes Main
- Directives
- 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -20-60 °C-20-60 °C
- Circularity Profile
- ENVEOLI2410004EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...6561.68 ft (0...2000 m) without derating2000...5000 m with derating
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2410004EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
China Rohs RegulationX
Carbon Footprint32.90755849268312
Ambient Air Temperature For Storage-40-85 °C-40-85 °C
Environmental DisclosureENVPEP2410004EN
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardYes
Product CompatibilityNTSN.....
Relative Humidity5-95 % without condensation
Pep Verification Date2024-10-08
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- discrete input module kit
Range Of ProductModicon Edge I/O NTS
ETIM
- ETIM 8
- EC001599
ETIM 9EC001599
Input Attributes
- Input Diagnostic
- power supply error per channel, sensor power supply error per channel
- Response Time On Input
- < 90 µs (off to on), < 90 µs (off to on), < 60 µs (on to off), < 60 µs (on to off), < 90 µs (off to on), < 90 µs (off to on), < 60 µs (on to off), < 60 µs (on to off)
- Discrete Input Logic
- positive logic (sink)
- Discrete Input Voltage
- 24 V DC
- Group Of Input Channels
- 4 groups of 4 channels
- Input Impedance
- 9.6 kOhm

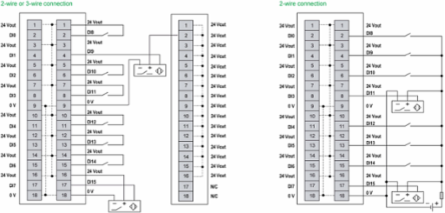

- Input Wiring Mode
- 1, 2 or 3 wires
Input Protection Typeover voltage protection, over current protection on sensor supply, reverse polarity protection
Discrete Input Current2.5 mA
Discrete Input Numbertype 3 conforming to IEC 61131-216
Discrete Input Voltage TypeDC
Input Filtering0...20 ms configurable in 0.1 ms step
Input Voltage Limits20.4...28.8 V
Paralleling Of Inputsyes
