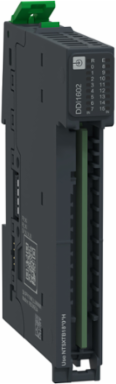

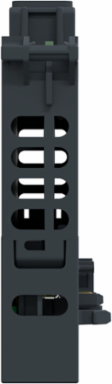

Schneider Electric NTSDDI1602K Discrete Input Module + Base, 16 In, 24V DC, Sink, 1 Wire, Modicon Edge I/O NTS
- MPN: NTSDDI1602K
- PPN: SCH-NTSDDI1602K
CAD
$267.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

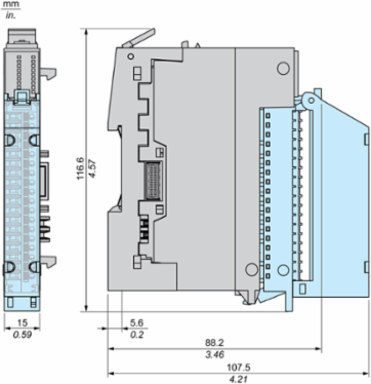

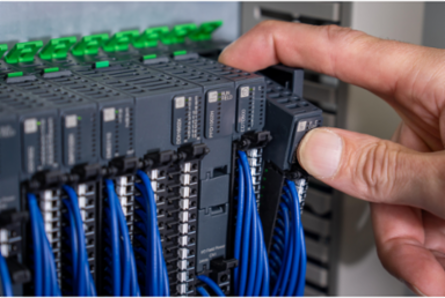

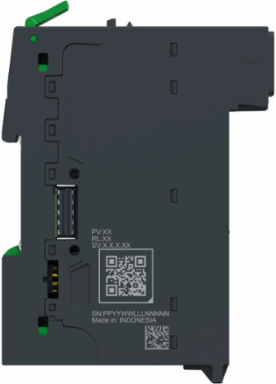

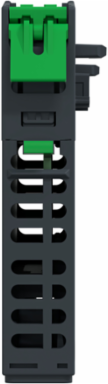

This discrete input kit is part of the Modicon Edge I/O NTS range. This kit is a preassembly of a base and a discrete input module. It features 16 discrete inputs operating at 24V DC, with a sink logic, with a 1-wire connection. It is used in automation and control systems to monitor the status of various discrete (on/off) signals. It functions within a temperature range of minus 40 to 70 degrees Celsius. Its IP degree of protection is IP20. It measures 116mm high, 15mm wide, 88mm deep, and weighs 0.073kg. It is compatible with Modicon M262 and Modicon M580 Automation controller ranges and mounting accessories. The package contains the module already assembled at its base. The kit installs on a DIN rail, with a Mechanical locking clip. Modicon Edge I/O NTS is a future-ready I/O system for data aggregation. Modicon Edge I/O NTS is a robust distributed IP20 I/O system with wide choice of modules.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, France, Indonesia, Philippines, United States |
|---|
| Depth | 80 mm |
|---|
Physical Attributes
| Housing Color | grey |
|---|
Complementary Attributes
| Rated Operational Voltage Limits | 20.4...28.8 V DC |
|---|
Important Information Attributes
| Kit Composition | NTSDDI1602 module, NTSXBA0100H base |
|---|---|
| Mounting Support | top hat type TH35-7.5 rail IEC 60715, top hat type TH35-15 rail IEC 60715 |
| Voltage State 0 Guaranteed | < 5 V DC, < 5 V DC< 5 V DC, < 5 V DC |
| Carbon Footprint Of The Distribution Phase [A4] | 0.11342234809860938, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0 kg CO2 eq., 0.00017573016570754922 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 22 kg CO2 eq., 22.232195016127704 |
| Local Publishable Date | 2026-01-12 |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Current State 1 Guaranteed | >= 2 mA>= 2 mA |
| Environmental Characteristic | gas resistant C3 and G2standard environment |
| Isolation Between Channels And Bus | 1500 V AC |
| Local Signalling | 1 LED (green) for module operating (RUN)1 LED per channel (green) for channel diagnostic1 LED (red) for module error (ERR) |
| Network Type | DC |
| Power Dissipation In W | 2.2 W maximum at 24 V DC |
| Product Or Component Type | discrete input module kit |
| Returnability | Yes |
| Software Version | v6.1 |
| Total Lifecycle Carbon Footprint | 28 kg CO2 eq. |
| Vibration Resistance | 1 g without accessory2 g with accessory |
| Dc Supply Voltage | 20.4-28.8 V |
| Digital Inputs Configurable | false |
| Pep Code | ENVPEP2410004EN |
| Pep Verification Date | 2024-10-08 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | Electricity Mix; Low voltage; 2018; Europe, EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Low voltage; 2018; Europe, EU-27 |
| Width Nominal | 15 mm |
| Package Weight(Lbs) | 99.790 g |
| Warranty (In Months) | 18 |
| Marking | CE, UKCA, cULus, RCM |
|---|---|
| Power Supply Type | bus power from power supply bus (24 Vdc), field power from common distribution module (24 Vdc), optional field power from external power supply (24 Vdc, shared 0 V with module) |
| Certificate Agency | CE, UKCA, cULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending) |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.21933873510256938, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 6 kg CO2 eq., 5.615929856774683 |
| Local Data Status | Publishable |
| Pre Comm Date | 2025-02-03 |
| Stocking Flag | N |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2410004EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2439 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Current State 0 Guaranteed | <= 1.5 mA<= 1.5 mA |
| Device Application | Industrial Application |
| Hot Swapping Fallback | yes |
| Isolation Between Channels And Ground | 1500 V AC |
| Mandatory Accessory | NTSXTB18_0_H terminal block |
| Operating Mode | Synchronous/Isochronous |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Modicon Edge I/O NTS |
| Shock Resistance | 15 g 11 ms with and without accessory) |
| Sustainable Packaging | No |
| Typical Current Consumption | 40.8 mA 24 V DC on the Bus current13.2 mA 24 V DC on the internal field current minimum15.8 mA 24 V DC on the internal field current maximum |
| Voltage State 1 Guaranteed | 11...30 V DC |
| Housing Color | grey |
| Discrete Input Voltage 5 | 24 V DC |
| Database Version | 2023-02 |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To receive and process digital input signals from sensors in Modicon Edge I/O System during 10 years with a 100% use rate. Typical power consumption is 0,79W (33mA at 24 VDC).To receive and process digital input signals from sensors in Modicon Edge I/O System during 10 years with a 100% use rate. Typical power consumption is 0,79W (33mA at 24 VDC). |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Indonesia, ID |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2018; Europe, EU-27 |
| Height Nominal | 100 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538908180 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -20-60 °C derating of channel numbers above 55 °C to 12 channels for 24 vdc at 60 °C, -20-60 °C derating of channel numbers above 55 °C to 12 channels for 24 vdc at 60 °C-20-60 °C derating of channel numbers above 55 °C to 12 channels for 24 vdc at 60 °C, -20-60 °C derating of channel numbers above 55 °C to 12 channels for 24 vdc at 60 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 28.181061686269274 |
| Circularity Profile | ENVEOLI2410004EN |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 0...6561.68 ft (0...2000 m) without derating2000...5000 m with derating |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP2410004EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Ambient Air Temperature For Storage | -40-85 °C-40-85 °C |
| Environmental Disclosure | ENVPEP2410004EN |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | No |
| Product Compatibility | NTSN..... |
| Relative Humidity | 5-95 % without condensation |
| Pep Verification Date | 2024-10-08 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
General Attributes
| Product Or Component Type | discrete input module kit |
|---|
| Range Of Product | Modicon Edge I/O NTS |
|---|
ETIM
| ETIM 8 | EC001599 |
|---|
| ETIM 9 | EC001599 |
|---|
Input Attributes
| Response Time On Input | < 125 µs (off to on), < 125 µs (off to on), < 125 µs (on to off), < 125 µs (on to off), < 125 µs (off to on), < 125 µs (off to on), < 125 µs (on to off) |
|---|---|
| Discrete Input Logic | positive logic (sink) |
| Discrete Input Voltage | 24 V DC |
| Group Of Input Channels | 1 group |
| Input Filtering | 0...20 ms configurable in 0.1 ms step |
| Input Protection Type | over voltage protection |

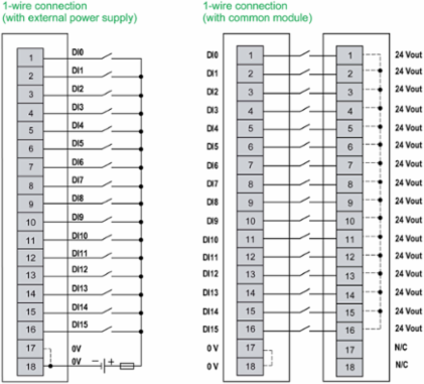

| Input Wiring Mode | 1 wire |
| Discrete Input Current | 2.5 mA |
|---|---|
| Discrete Input Number | type 3 conforming to IEC 61131-216 |
| Discrete Input Voltage Type | DC |
| Input Diagnostic | power supply error per channel |
| Input Impedance | 9.6 kOhm |
| Input Voltage Limits | 20.4...28.8 V |
| Paralleling Of Inputs | yes |
