Schneider Electric NTSDDI0602K Discrete Input Module + Base, 6 In, 24V DC, Sink, 1/2/3 Wires, Modicon Edge I/O NTS

MPN: NTSDDI0602K
PPN: SCH-NTSDDI0602K
UNSPSC: 32151705

$210.62

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

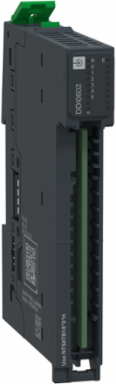

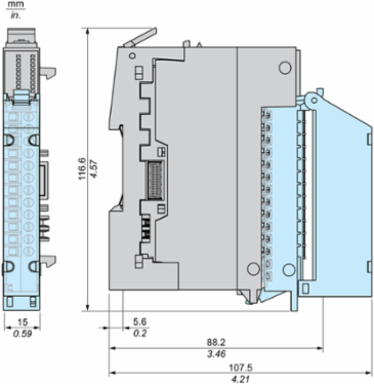

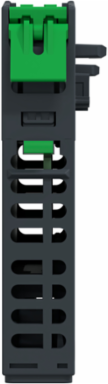

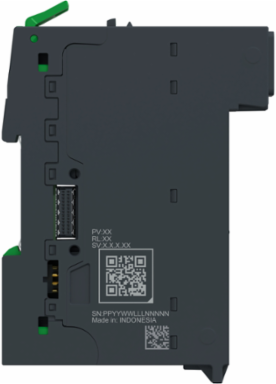

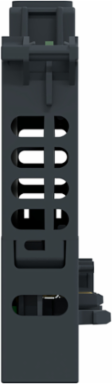

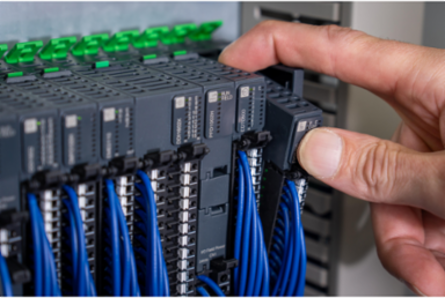

This discrete input kit is part of the Modicon Edge I/O NTS range. This kit is a preassembly of a base and a discrete input module. It features 6 discrete inputs operating at 24V DC, with a sink logic, with a 1-2-3-wire connection. It is used in automation and control systems to monitor the status of various discrete (on/off) signals. It functions within a temperature range of minus 40 to 70 degrees Celsius. Its IP degree of protection is IP20. It measures 116mm high, 15mm wide, 88mm deep, and weighs 0.073kg. It is compatible with Modicon M262 and Modicon M580 Automation controller ranges and mounting accessories. The package contains the module already assembled at its base. The kit installs on a DIN rail, with a Mechanical locking clip. Modicon Edge I/O NTS is a future-ready I/O system for data aggregation. Modicon Edge I/O NTS is a robust distributed IP20 I/O system with wide choice of modules.

Features

Device genuineness (Manufacturer certificate)
Hot-swappable module
Save time and less time to market
Reduce cost and unplanned downtime
Increase flexibility
Data-driven and cybersecure

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Indonesia
Depth	80 mm

Weight	76.65 g

Complementary Attributes

Rated Operational Voltage Limits	20.4...28.8 V DC

Important Information Attributes

Kit Composition	NTSDDI0602 module, NTSXBA0100H base
Mounting Support	top hat type TH35-7.5 rail IEC 60715, top hat type TH35-15 rail IEC 60715
Voltage State 0 Guaranteed	< 5 V DC, < 5 V DC< 5 V DC, < 5 V DC
Carbon Footprint Of The Distribution Phase A4	0.11342234809860938, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0 kg CO2 eq., 0.00017573016570754922
Carbon Footprint Of The Use Phase B2 B3 B4 B6	17 kg CO2 eq., 16.842571981914926
Local Publishable Date	2026-01-12
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Product Kit Identifier	N
Current State 1 Guaranteed	>= 2 mA>= 2 mA
Environmental Characteristic	Salt spray resistant severity 3gas resistant C3 and G2standard environment
Isolation Between Channels And Bus	1500 V AC
Local Signalling	1 LED (green) for module operating (RUN)1 LED per channel (green) for channel diagnostic1 LED (red) for module error (ERR)
Network Type	DC
Power Dissipation In W	1.24 W maximum at 24 V DC
Product Or Component Type	discrete input module kit
Returnability	Yes
Software Version	v6.1
Total Lifecycle Carbon Footprint	23 kg CO2 eq.
Vibration Resistance	1 g without accessory2 g with accessory
Dc Supply Voltage	20.4-28.8 V
Digital Inputs Configurable	false
Database Version	2023-02
Height Nominal	100 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Description	To receive and process digital input signals from sensors in Modicon Edge I/O System during 10 years with a 100% use rate. Typical power consumption is 0,79W (33mA at 24 VDC).To receive and process digital input signals from sensors in Modicon Edge I/O System during 10 years with a 100% use rate. Typical power consumption is 0,79W (33mA at 24 VDC).
Functional Unit Unit	unit

Marking	CE, UKCA, cULus, RCM
Power Supply Type	bus power from power supply bus (24 Vdc), field power from power supply field (24 Vdc), optional field power from common distribution module (24 Vdc), optional field power from external power supply (24 Vdc, shared 0 V with module)
Certificate Agency	CE, UKCA, cULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending)
Carbon Footprint Of The End Of Life Phase C1 To C4	0.21933873510256938, 0.2 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3	6 kg CO2 eq., 5.615929856774683
Local Data Status	Publishable
Pre Comm Date	2024-12-19
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2410004EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2439
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Current State 0 Guaranteed	<= 1.5 mA<= 1.5 mA
Device Application	Industrial Application
Hot Swapping Fallback	yes
Isolation Between Channels And Ground	1500 V AC
Mandatory Accessory	NTSXTB18_0_H terminal block
Operating Mode	Synchronous/Isochronous
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	Modicon Edge I/O NTS
Shock Resistance	15 g 11 ms with and without accessory)
Sustainable Packaging	No
Typical Current Consumption	31.2 mA 24 V DC on the Bus current8.4 mA 24 V DC on the internal field current minimum510.1 mA 24 V DC on the internal field current maximum
Voltage State 1 Guaranteed	11...30 V DC
Housing Color	grey
Discrete Input Voltage 5	24 V DC
Data Source	extrapolated product
Width Nominal	15 mm
Customs Code	8538908180
Packaging Weight In G	5
Functional Unit Quantity	1
Reference Lifetime In Y	10

Environment Attributes Main

Directives	2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Ambient Air Temperature For Operation	-20-60 °C-20-60 °C
Circularity Profile	ENVEOLI2410004EN
Eu Rohs Directive	Compliant By Exemption
Operating Altitude	0...6561.68 ft (0...2000 m) without derating2000...5000 m with derating
Packaging Without Single Use Plastic	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP2410004EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review

Take Back	No
China Rohs Regulation	X
Carbon Footprint	22.79143865205649
Ambient Air Temperature For Storage	-40-85 °C-40-85 °C
Environmental Disclosure	ENVPEP2410004EN
Ip Degree Of Protection	IP20
Packaging Made With Recycled Cardboard	No
Product Compatibility	NTSN.....
Relative Humidity	5-95 % without condensation
Pep Verification Date	2024-10-08
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

General Attributes

Product Or Component Type	discrete input module kit

Range Of Product	Modicon Edge I/O NTS

ETIM

ETIM 8	EC001599
ETIM 10	EC001599

ETIM 9	EC001599

Input Attributes

Input Diagnostic	power supply error per channel, sensor power supply error per channel
Response Time On Input	< 125 µs (off to on), < 125 µs (off to on), < 125 µs (on to off), < 125 µs (on to off), < 125 µs (off to on), < 125 µs (off to on), < 125 µs (on to off)
Discrete Input Logic	positive logic (sink)
Discrete Input Voltage	24 V DC
Group Of Input Channels	1 group
Input Impedance	9.6 kOhm

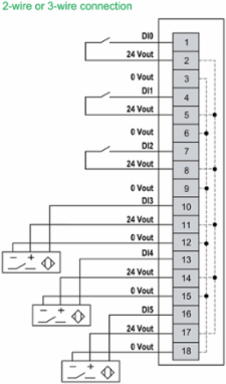

Input Wiring Mode	1, 2 or 3 wires

Input Protection Type	over voltage protection, over current protection on sensor supply, reverse polarity protection
Discrete Input Current	2.5 mA
Discrete Input Number	type 3 conforming to IEC 61131-26
Discrete Input Voltage Type	DC
Input Filtering	0...20 ms configurable in 0.1 ms step
Input Voltage Limits	20.4...28.8 V
Paralleling Of Inputs	yes
