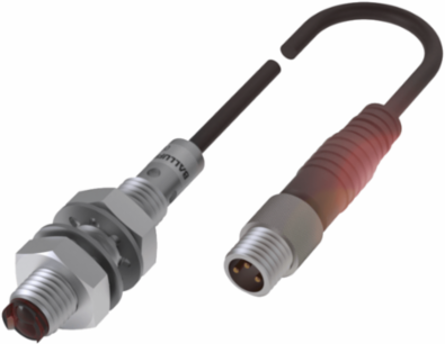

Balluff BOS 08E-PS-KD20-00,2-S49 Diffuse sensor BOS 08E-PS-KD20-00,2-S49
- MPN: BOS 08E-PS-KD20-00,2-S49
- PPN: BAL-BOS01R8
CAD
$234.79
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Energetic diffuse sensors are ideal for the detection of differences in contrast. They detect objects depending on their surface, color and material.They are inexpensive, easy to mount and align.
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 10-30 VDC
- Operating Current Max
- 100 mA
- No-load Current Max
- 15 mA
- Switching Frequency
- 500 Hz
- Turn-on Delay Max
- 1 ms
- Dimensions
- d8 8 x 40 mm
- Mounting
- Nut M8x1
- Housing Material
- Stainless steel
- Jacket Material
- PUR
- Light Type
- LED Red light
- Principle of Optical Operation
- Diffuse sensor (energetic)
- Approval/Conformity
- cULus, CE, WEEE
- Series
- 08E
- Ambient Temperature
- -5 to 55 b0C
Range1-60 mm
Load Capacitance Max0.5 b5F
Ripple Max10% of Ue
Turn-off Delay Max1 ms
Voltage Drop Max0.7 V
Light Spot Sized8 3.0 mm Light exit
ConnectionCable with connector, 0.20 m, PUR
Material Sensing SurfacePMMA
Beam CharacteristicDivergent
InterfacePNP Normally open (NO)
Principle of OperationPhotoelectric sensor
Protection RatingIP67
Wave Length645 nm
