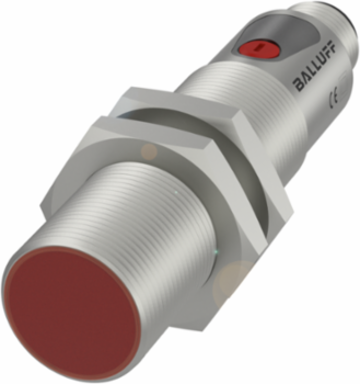

Balluff BOS 18M-PA-RD21-S4 Diffuse sensor BOS 18M-PA-RD21-S4
- MPN: BOS 18M-PA-RD21-S4
- PPN: BAL-BOS01CA
CAD
$271.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Energetic diffuse sensors are ideal for the detection of differences in contrast. They detect objects depending on their surface, color and material.They are inexpensive, easy to mount and align.
Documentation & Downloads
Specifications
Additional
- Range
- 0-300 mm
- Series
- 18M
- Switching Frequency
- 800 Hz
- Voltage Drop Max.
- 2.5 V
- Principle of Operation
- Photoelectric sensor, Diffuse sensor (energetic)
- Dimensions
- mm x 75 mm
- Housing Material
- Brass, nickel plated
- Connection
- Connector, M12x1 Male, 4-pin
- IP Rating
- IP67
- Hysteresis Max.
- 10 % of Sr
- Tightening Torque Max.
- 30 Nm
- Ambient Light Max.
- 10000 Lux
- Approval/Conformity
- CE, cULus, EAC, WEEE
Operating Voltage Ub10-30 VDC
InterfacePNP Normally open (NO), PNP Normally closed (NC)
Operating Current100 mA
Light TypeLED Red light
Beam CharacteristicDivergent
Light Spot Size mm at 300 mm
Material Sensing SurfaceGlass, AR coated, anti-glare
MountingNut M18x1
Contamination Scale3
Temperature Drift Max.10 % of Sr
Ambient Temperature-5 to 55 0C
Protection ClassII
Basic StandardIEC 60947-5-2
