Balluff

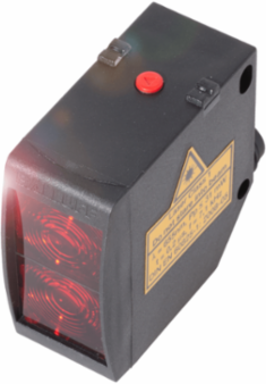

Balluff BOS 23K-PU-LD20-S4 Diffuse sensor BOS 23K-PU-LD20-S4

Diffuse sensor BOS 23K-PU-LD20-S4
  • MPN: BOS 23K-PU-LD20-S4
  • PPN: BAL-BOS0175

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$413.54/ EA

Description

Energetic diffuse sensors are ideal for the detection of differences in contrast. They detect objects depending on their surface, color and material.They are inexpensive, easy to mount and align.

Specifications

Specifications

Series
23K
Interface
PNP NO/NC
Principle of operation
Photoelectric sensor
Beam characteristic
Collimated
Light spot size
2.2 x 2.2 mm at 800 mm
Connection
Connector, M12x1-Male, 4-pin
Material sensing surface
PMMA
Approval/Conformity
CE, Ecolab, cULus, WEEE
Dimension23 x 51 x 52.4 mm
Input functionKey disable on/off, Same function as button
Principle of optical operationDiffuse sensor, (energetic)
Light typeLaser Red light
Range5-1200 mm
Housing materialPCABS
Operating voltage Ub10-30 VDC
