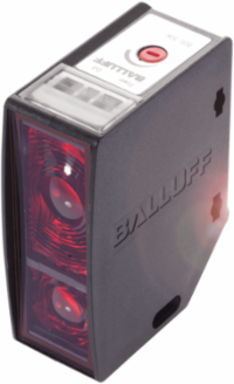

Balluff BOS 50K-PA-RD10-S4 Diffuse sensor BOS 50K-PA-RD10-S4
- MPN: BOS 50K-PA-RD10-S4
- PPN: BAL-BOS01CJ
CAD
$364.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Energetic diffuse sensors are ideal for the detection of differences in contrast. They detect objects depending on their surface, color and material.They are inexpensive, easy to mount and align.
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 10-30 VDC
- Range
- 1-2000 mm
- Light Type
- LED Red light
- Material Sensing Surface
- Glass
- Beam Characteristic
- Divergent
- Series
- 50K
- Approval/Conformity
- CE, cULus, EAC, WEEE
ConnectionConnector, M12x1-Male, 4-pin
Light Spot Size50 x 50 mm at 2 m
Dimension28.5 x 80.5 x 62 mm
Housing MaterialPCABS
Principle of Optical OperationDiffuse sensor (energetic)
Principle of OperationPhotoelectric sensor
InterfacePNP Normally open (NO), Normally closed (NC)
