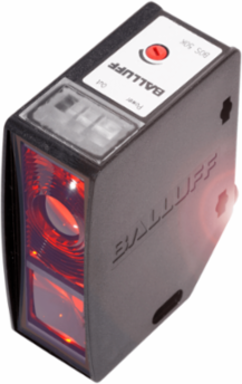

Balluff BOS 50K-PA-RH12-S4 Diffuse sensor with background suppression BOS 50K-PA-RH12-S4
- MPN: BOS 50K-PA-RH12-S4
- PPN: BAL-BOS018P
CAD
$420.84
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Diffuse sensors with background suppression ensure reliable detection regardless of the surface, color and material.Their scanning behavior is virtually constant, even with different reflectance levels.
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 10-30 VDC
- Range
- 200-2000 mm
- Switching Output
- PNP Normally open (NO), Normally closed (NC)
- Mounting
- Screw M5
- Housing Material
- PCABS
- Beam Characteristic
- Divergent
- Special Optical Feature
- Background suppression
- Principle of Operation
- Photoelectric sensor
- Approval/Conformity
- CE, cULus, EAC, WEEE
Rated Operating Current100 mA
Light Spot Size60 x 60 mm at Sr
ConnectionConnector, M12x1-Male, 4-pin
Dimension28.5 x 80.5 x 62 mm
Material Sensing SurfaceGlass
Light TypeLED Red light
Light Wavelength630 nm
Principle of Optical OperationDiffuse sensor, Triangulation
Series50K
