Balluff

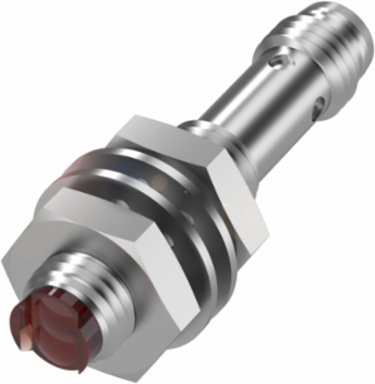

Balluff BOS 08E-PS-KD20-S49 Diffuse sensors - BOS01NN

Diffuse sensors - BOS01NN
  • MPN: BOS 08E-PS-KD20-S49
  • PPN: BAL-BOS01NN

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$227.95/ EA

Specifications

Specifications

Country of Origin
Hungary
Dimension
Ø 8 x 40 mm
Principle of operation
Photoelectric sensor
Beam characteristic
Divergent
Light spot size
Ø 3.0 mm Light exit
Connection
Connector, M8x1-Male, 3-pin
Material sensing surface
PMMA
Approval/Conformity
cULus; CE; UKCA; WEEE
Series08E
InterfacePNP Normally open (NO)
Principle of optical operationDiffuse sensor, (energetic)
Light typeLED Red light
Range1...60 mm
Housing materialStainless steel
Operating voltage Ub10...30 VDC
